Park/Neutral/Park Position Switch (M/T)

REMOVAL
1. Raise and support the vehicle.
2. Drain the transmission fluid.

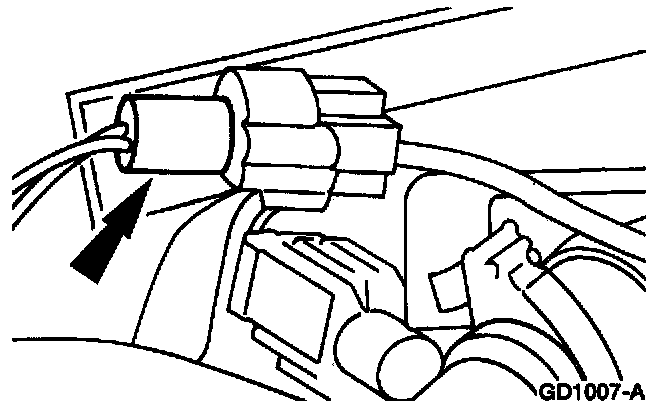

3. Disconnect the Park Neutral Position (PNP) switch electrical connector.







4. Remove the PNP switch and discard the gasket.

INSTALLATION

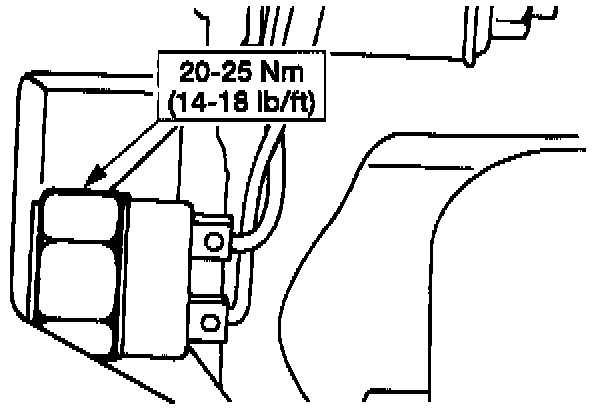

1. To install, reverse the removal procedure.

NOTE: Use a new gasket to install the PNP switch.
