Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Diagrams

Turn Signal Switch: Diagrams

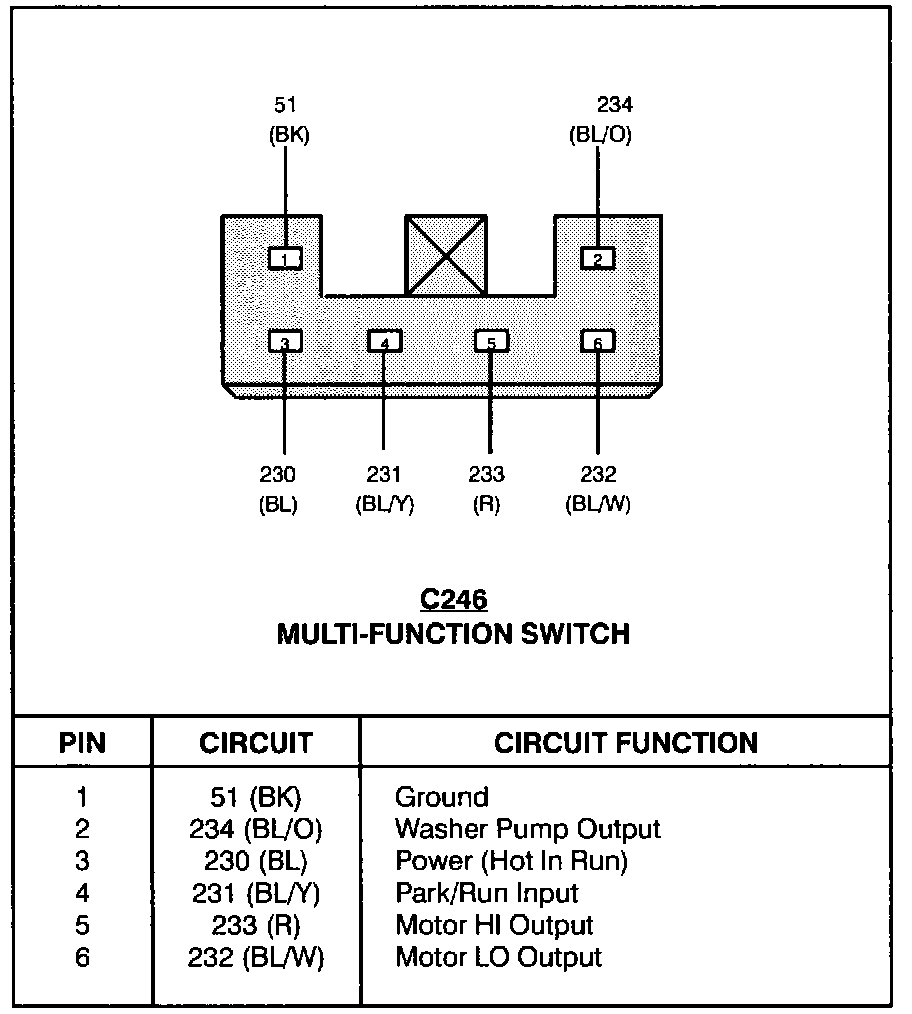

Multi-Function Switch (C246):

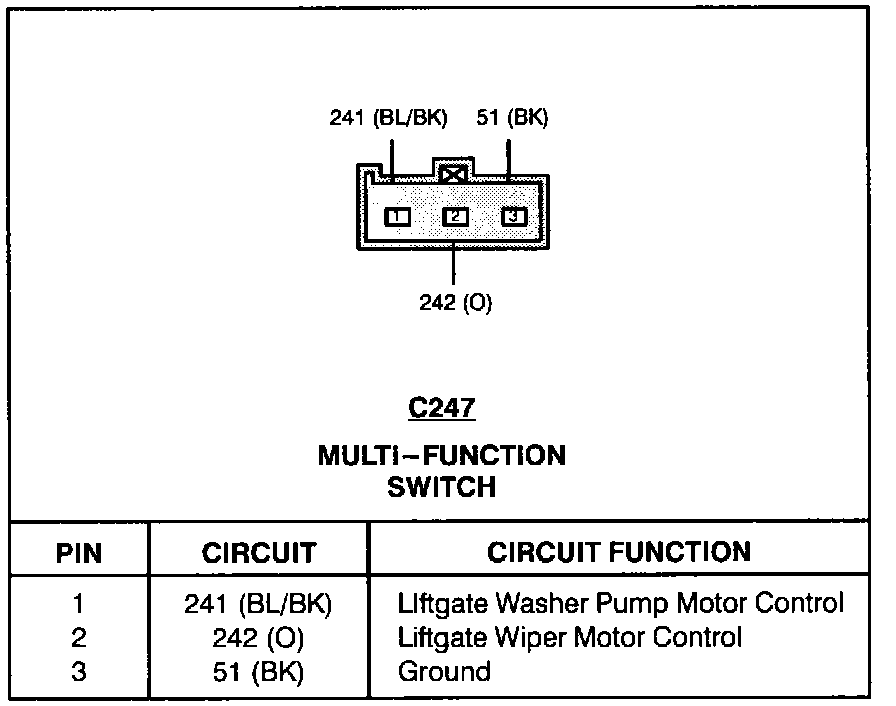

Multi-Function Switch (C247):




Multi-Function Switch (C250):




Multi-Function Switch (C249):

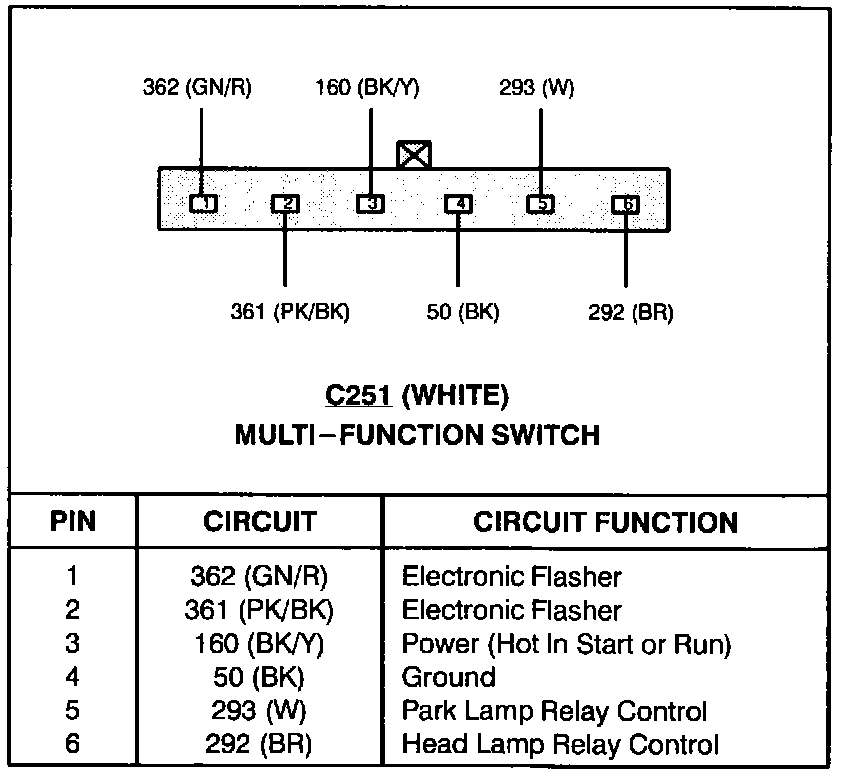

Multi-Function Switch (C251):
