Parking Brake Warning Switch: Service and Repair

REMOVAL
1. Move both front seats forward.

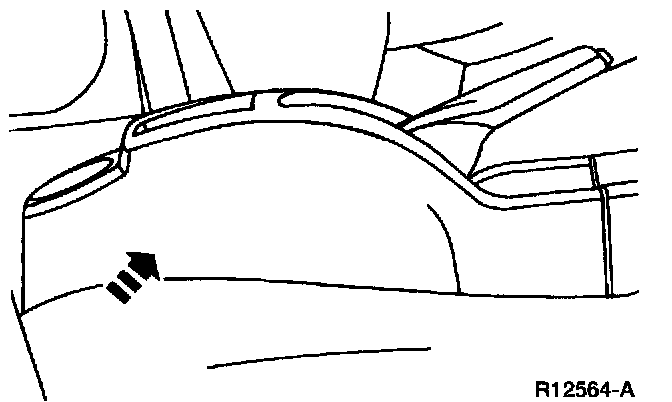

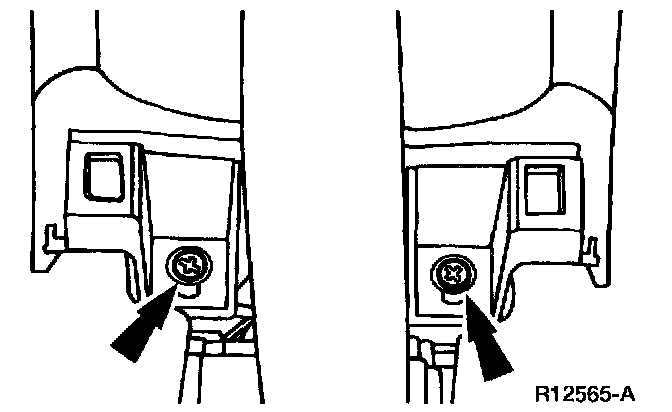

2. Remove the two screws from the parking brake console panel (one each side).
3. Engage the parking brake.







4. Pull upward and remove the parking brake console panel.

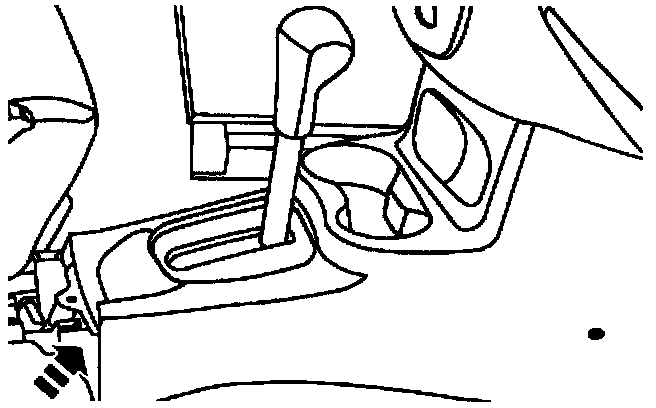

5. Remove the two shift console panel screws.

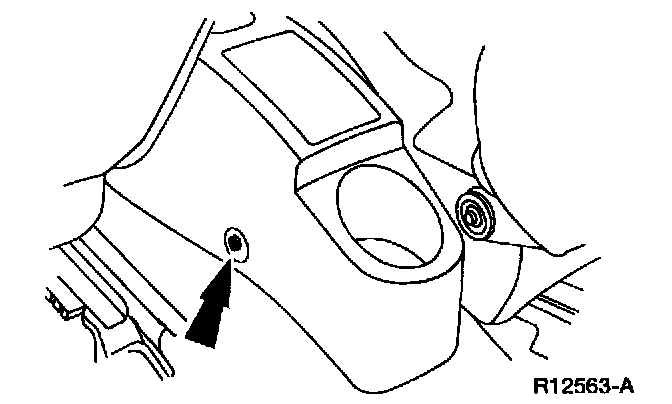

6. Remove the four pushpins (two each side).

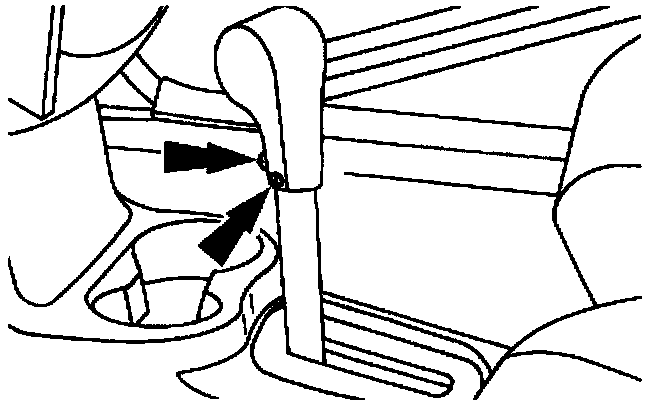

7. Loosen the two set screws and remove the gearshift lever knob.







8. Lift upward and remove the shift console panel.

INSTALLATION
1. To install, reverse the removal procedure.
