Sedan

REMOVAL

1. Remove the rear seat bottom.

2. Remove the rear side seat.

3. Remove the rear hi-mount lamp.

4. Place the rear seat back in the down position.






5. Remove the three push pins from the front of the package tray trim panel.

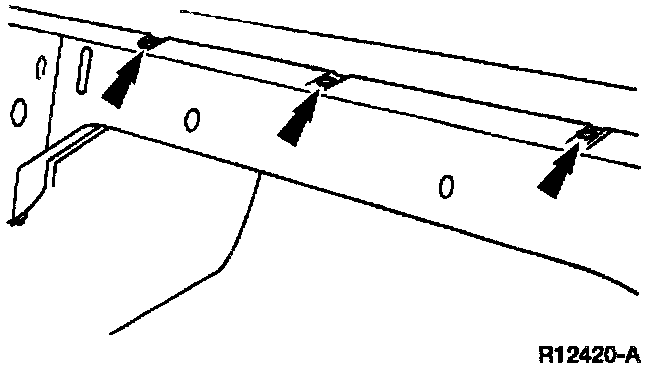

6. Slide the package tray trim panel forward to disengage the three clips at the rear edge.






7. Use Safety Belt Bolt Bit T77L-2100-A to remove the rear safety belt lower anchor bolt.






8. Remove the push pin and the panel and pull the rear safety belt through the slot.






9. Carefully pry the upper safety belt guide cover open.






10. Use Safety Belt Bolt Bit T77L-2100-A to remove the rear safety belt upper guide bolt.

11. Open the luggage compartment door and position the luggage compartment carpet away from the rear safety belt retractor.






12. Use Safety Belt Bolt Bit T77L-2100-A to remove the rear safety belt retractor bolt and pull the rear safety belt tongue and anchor out of the passenger compartment into the luggage compartment.

INSTALLATION

To install, reverse the removal procedure and torque to specification.

NOTE:
- Make sure the safety belt webbing is not twisted prior to installation.
- Ensure that the plastic bezel located on the rear package tray is secure after installing the rear safety belt and that the rear safety belt does not bind or catch on it.
- Ensure that after the rear safety belt retractor is installed, the retractor is not stuck in the Automatic Locking Retractor (ALR) mode.
- Perform the Function Test Procedure to ensure that the new retractor operates properly.
