Front Safety Belt

REMOVAL

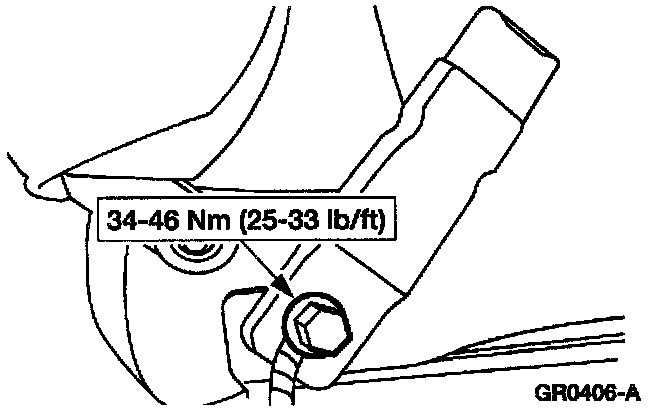

1. Remove the front safety belt buckle end bolt.

2. Disconnect the safety belt warning indicator electrical connector and remove the front safety belt buckle end.

INSTALLATION






To install, reverse the removal procedure and torque to specification.
