Air Bag Control Module: Locations

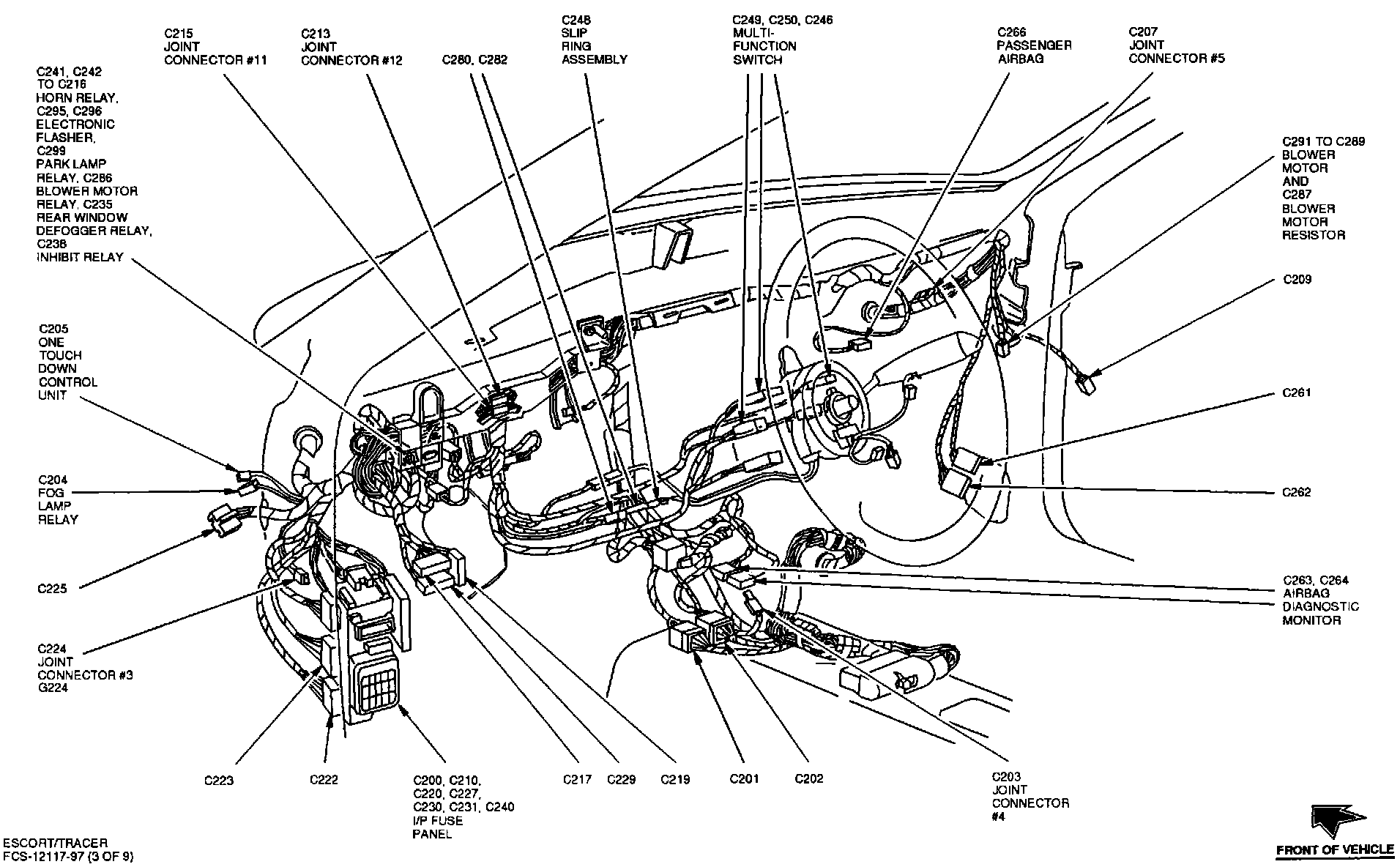

Cowl View:





The Air Bag Diagnostic Monitor is located at the center of the dash panel, below integrated control panel.
