Daytime Running Lamp Relay: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

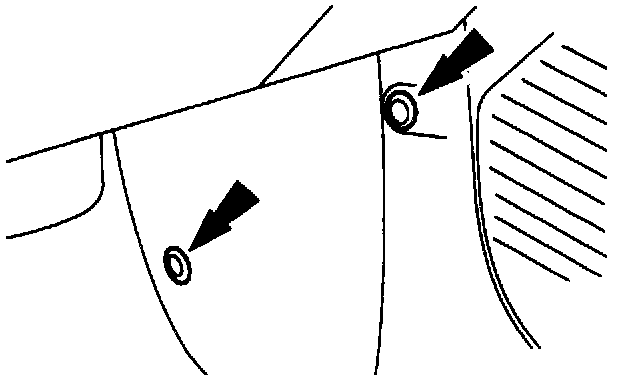

2. Remove the two retainers and the RH cowl side trim panel.

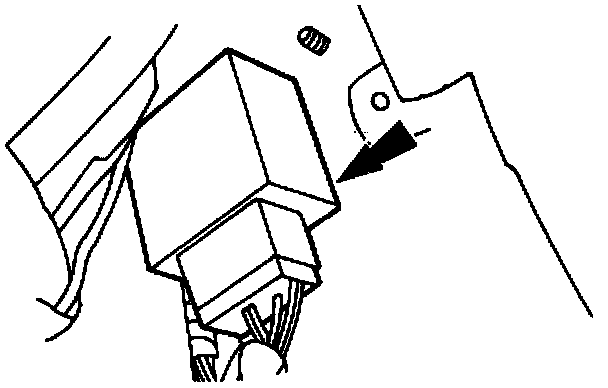

3. Detach the power door lock relay, if equipped.

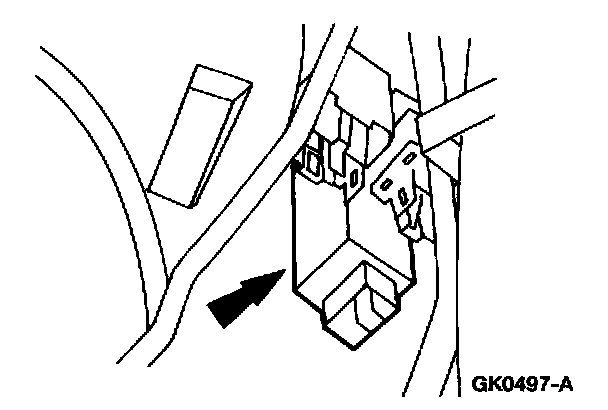

4. Disconnect the Day Time Running Lamp (DRL) control electrical connector.

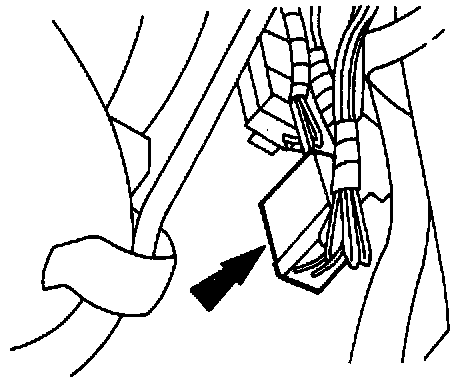

5. Detach the DRL control from the DRL bracket.







INSTALLATION
1. To install, reverse the removal procedure.
