Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> C: Torque Converter Clutch (TCC) Solenoid >> IF4E

IF4E

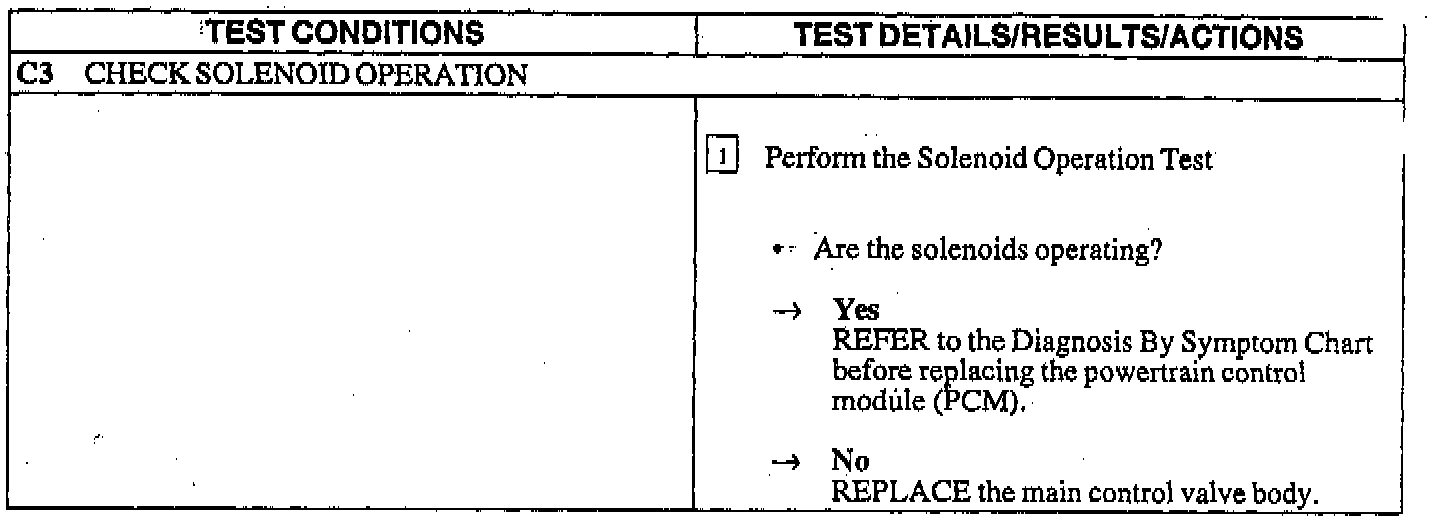

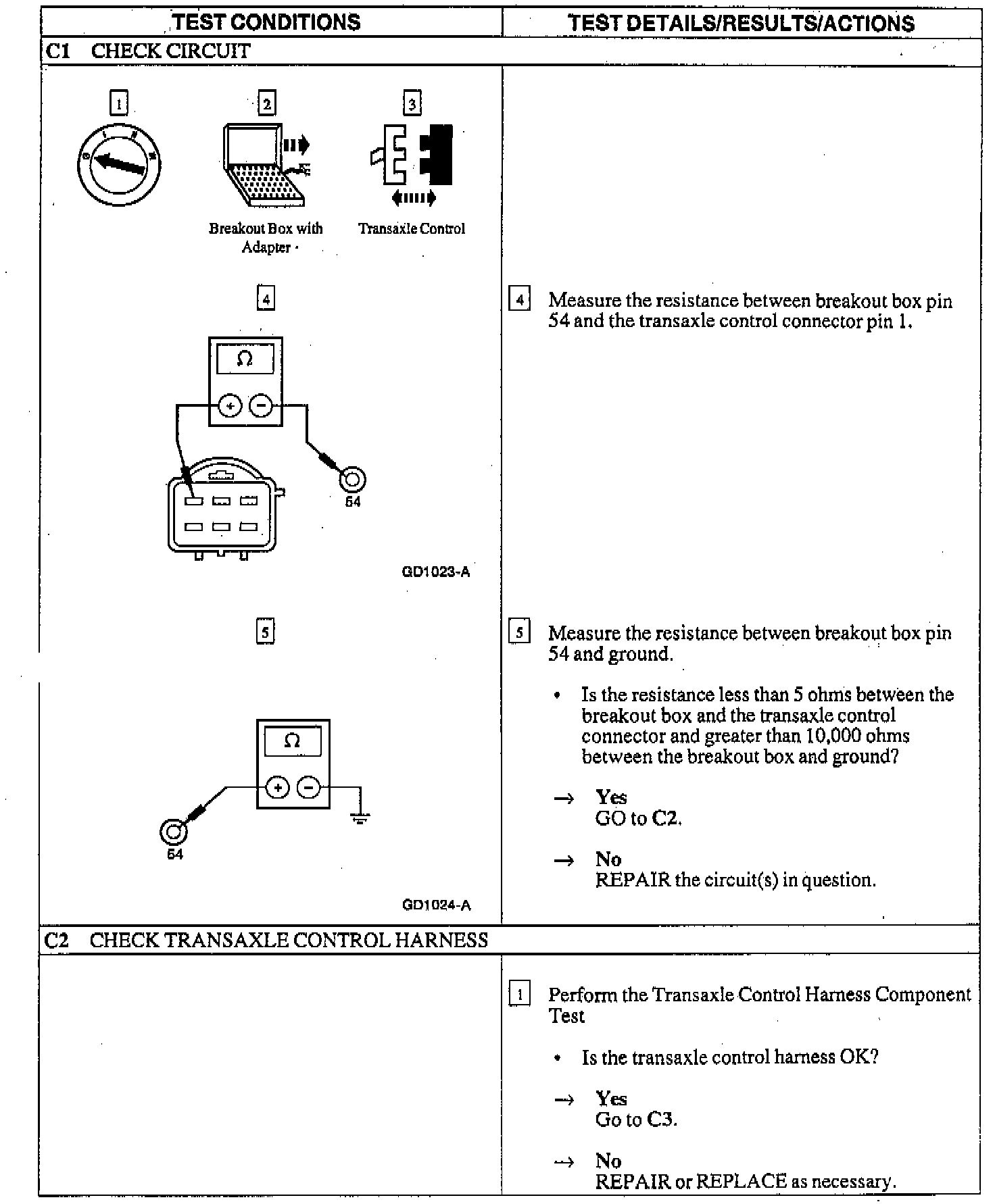

Part 1 Of 2:



Part 2 Of 2:
