Shift Interlock Solenoid: Service and Repair

REMOVAL
1. Remove the shift console.








2. Remove the gearshift lever knob.

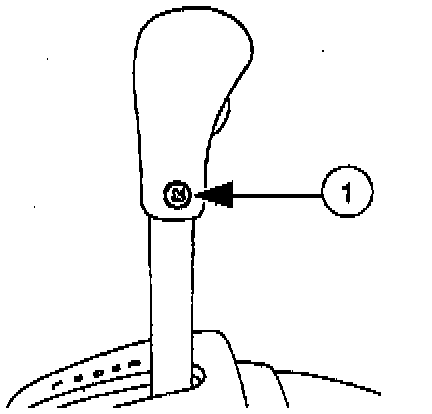

(1) Remove the RH gearshift lever knob screw.

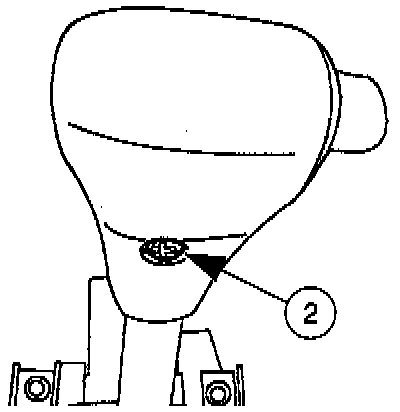

(2) Remove the front gearshift lever knob screw.








3. Remove the transmission control selector dial bezel.
(1) Remove the four screws.

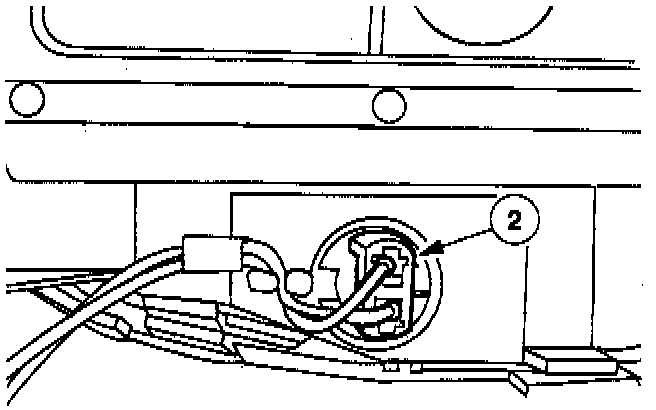

(2) Disconnect the miniature bulb.





4. Disconnect the shift lock actuator electrical connector.





5. Disconnect the park range switch electrical connector.





6. Remove the two screws and the shift lock actuator.











INSTALLATION
To install, reverse the removal procedure noting the following:

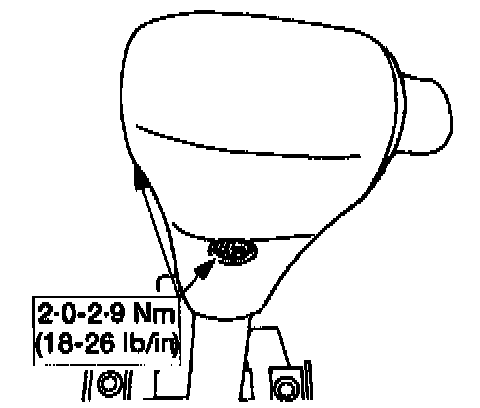

- Use Threadlock and Sealer EOAZ-19554-AA or equivalent meeting Ford specifications WSK-M2G315-A5 and ESE-M4G24-A2 when installing the gearshift lever knob screws.

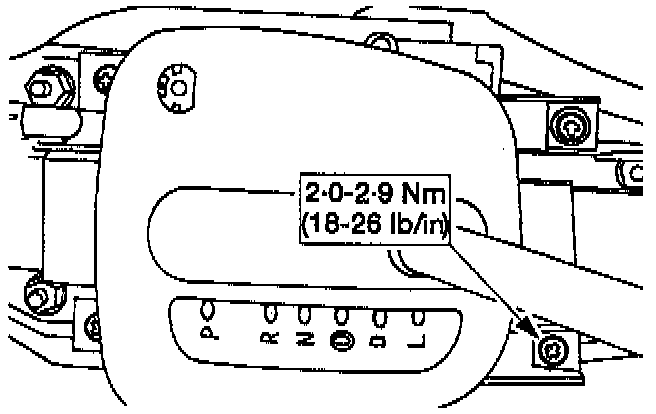

- Adjust the transmission control selector dial bezel and then tighten the screws in sequence.
