Accelerator Cable Bracket

REMOVAL AND INSTALLATION






1. Remove the accelerator cable from the throttle control lever.
1 Remove the cable housing from the bracket.
2 Remove the accelerator cable end from the throttle control lever.
3 Remove the accelerator cable.

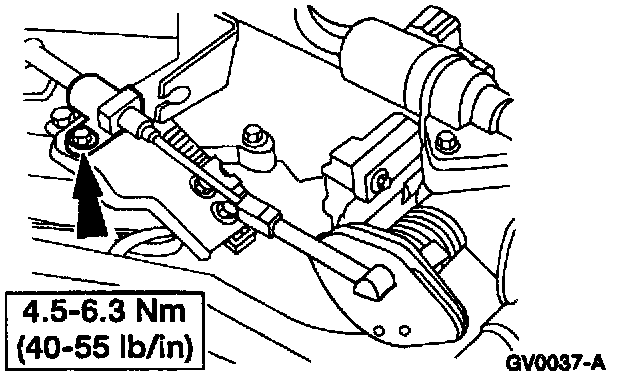

2. Disconnect the speed control cable from the throttle control lever.
1 Disconnect the speed control cable from the throttle control lever.
2 Remove the bolt.

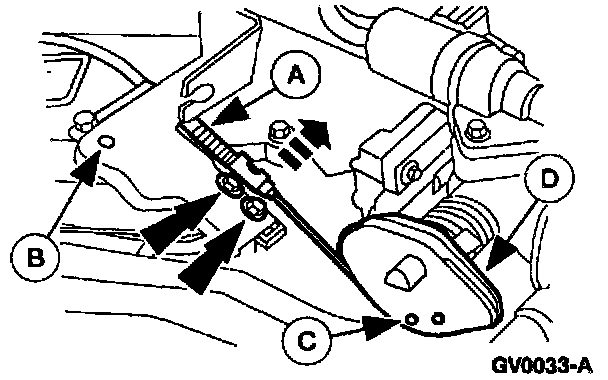

3. Disconnect the Transaxle Throttle (TV) valve control cable from the throttle control lever.
1 Loosen the bolts.
2 Slide the (A) TV cable off the (B) accelerator cable bracket.
3 Remove the (C) TV cable end from the (D) throttle control lever.

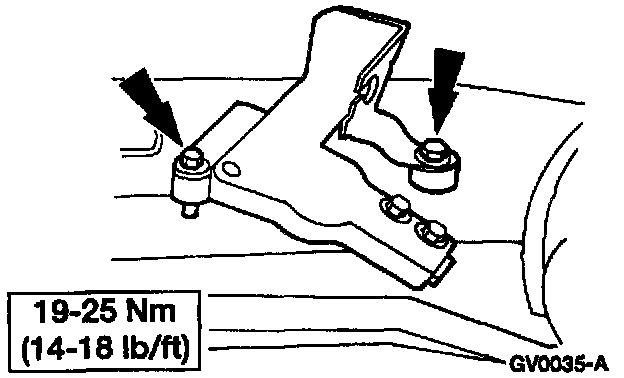

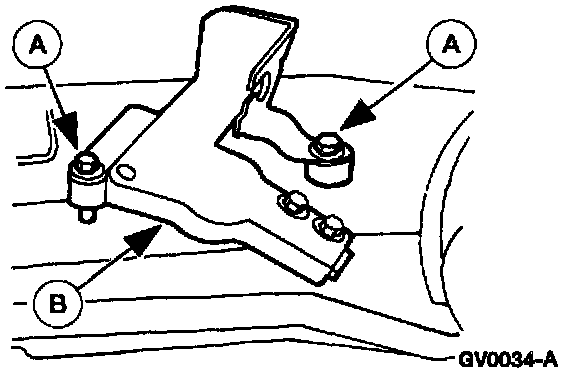

4. Remove the (A) bolts and the (B) accelerator cable bracket.






5. To install, reverse the removal procedure.






2. Adjust the transaxle TV cable.
3. Adjust the accelerator cable.
4. Adjust the speed control servo cable.
