Accelerator Cable

REMOVAL AND INSTALLATION






1. Remove the accelerator cable from the throttle control lever.
1 Remove the cable housing from the bracket.
2 Remove the accelerator cable end from the throttle control lever.
3 Remove the accelerator cable.

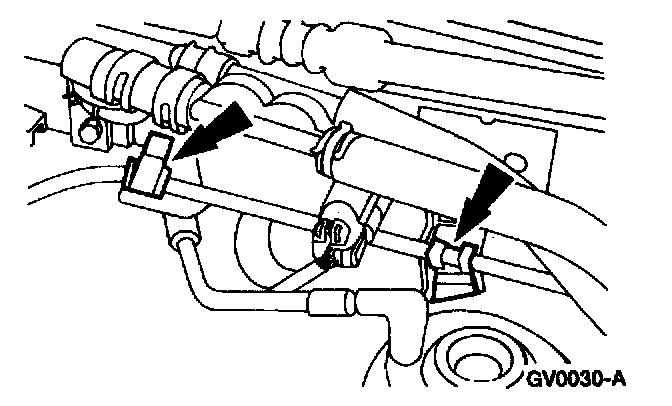

2. Remove the cable retaining clips.






3. Remove the (A) bolts and lower the (B) accelerator pedal and shaft.






4. Squeeze the (A) cable end locking grommet tabs to remove the (B) accelerator cable end from the (C) accelerator pedal shaft.

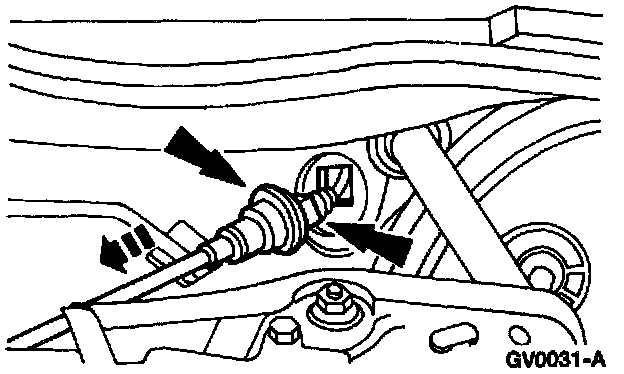

5. Squeeze the accelerator cable lock tabs and pull the accelerator cable out of the bulkhead.






1. To install, reverse the removal procedure.
2. Adjust the accelerator cable.
