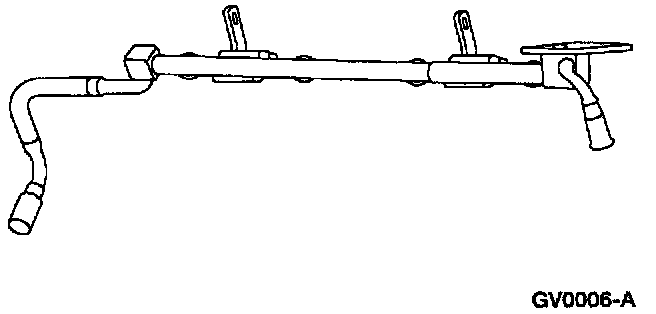

Fuel Rail: Description and Operation







PURPOSE
Receives fuel from the fuel supply tube.

OPERATION
Distributes fuel to the individual fuel injectors and ultimately returns unused fuel to the fuel tank through the fuel return tube.
