Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL AND INSTALLATION

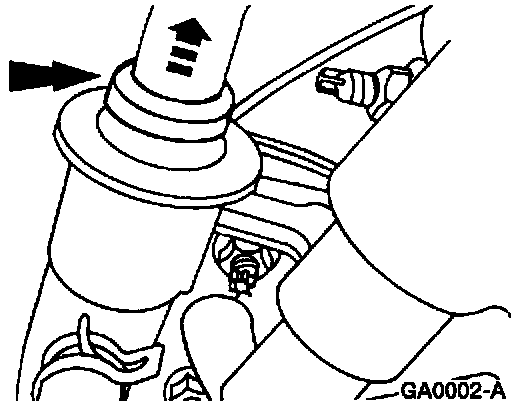

1. Pull upward to remove the Positive Crankcase Ventilation (PCV) valve from the crankcase vent oil separator.
2. Remove the PCV valve from the crankcase ventilation tube.
3. To install, reverse the removal procedure.
