MIL ON - DTC P0401 in Memory

Article No.
97-3-4

02/03/97

^ MALFUNCTION INDICATOR LAMP (MIL) - MIL ILLUMINATION WITH DIAGNOSTIC TROUBLE CODE (DTC) 0401 STORED IN MEMORY - VEHICLES EQUIPPED WITH 2.0L ENGINE

^ LAMP - MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATION WITH DIAGNOSTIC TROUBLE CODE (DTC) 0401 STORED IN MEMORY - VEHICLES EQUIPPED WITH 2.OL ENGINE

FORD:
1997 ESCORT

LINCOLN-MERCURY:
1997 TRACER

ISSUE:
The Malfunction Indicator Lamp (MIL) may illuminate and Diagnostic Trouble Code (DTC) 0401 may be stored in memory. This may be caused by the Exhaust Gas Recirculation (EGR) vacuum source coming off of the EGR valve during engine mobility, resulting in the MIL illumination. The EGR hose routing may not be optimal.

ACTION:
Replace and reroute the EGR vacuum hose. Rerouting the hose will keep it away from the emission Differential Pressure Feedback EGR (DPFE) bracket which should reduce the possibility of the hose being disconnected from the valve. Refer to the following Service Procedure for details.

SERVICE PROCEDURE

1. Verify the MIL illumination and DTC 0401 stored in memory.

2. Inspect the EGR vacuum source tube connection to EGR valve to verify the tube has pulled off from the EGR valve.

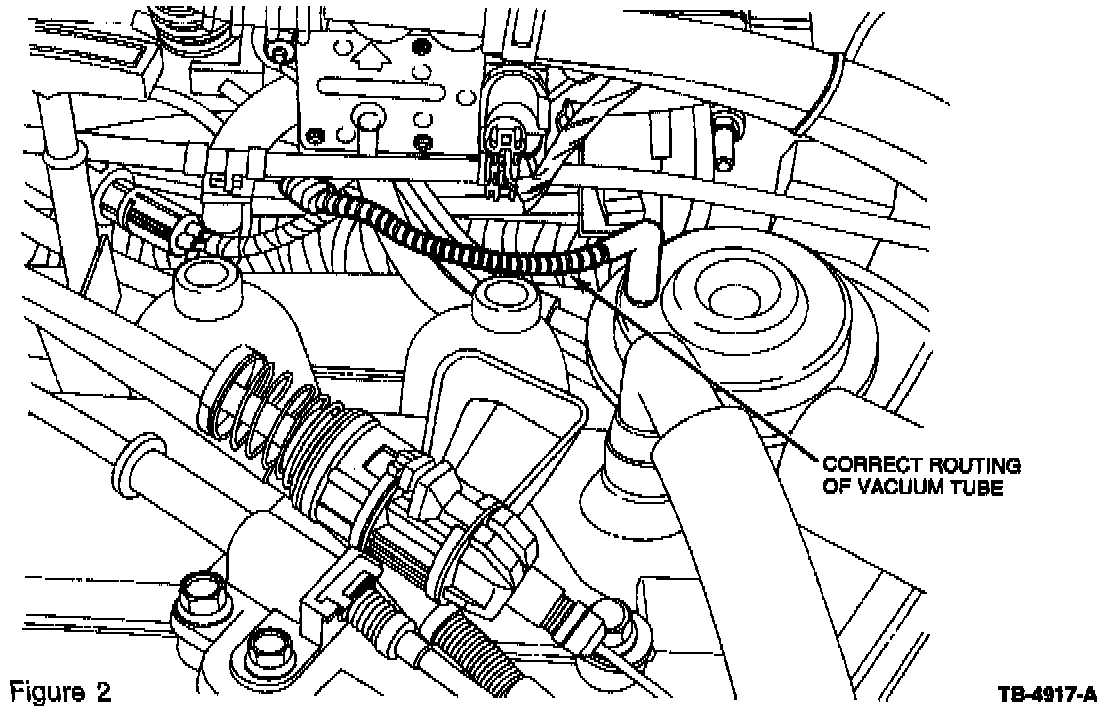

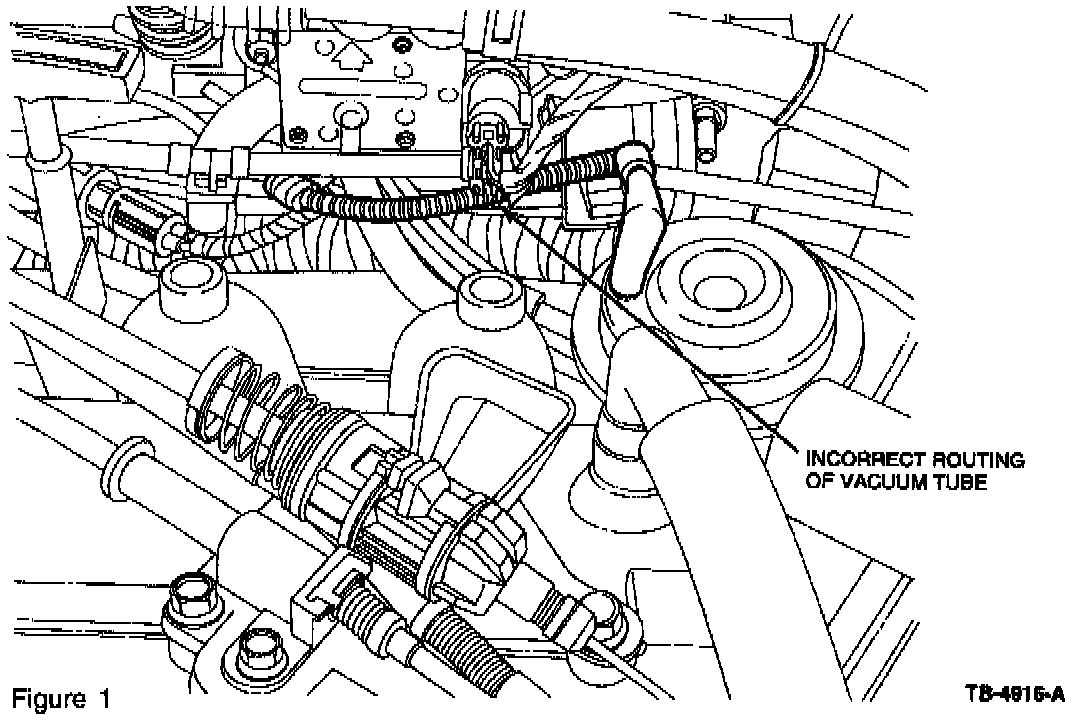

3. Install a new Tube (F7CZ-9E498-DB) and route the tube as shown in Figure 2. Incorrect routing is illustrated in Figure 1.

4. Clear the DTC.

PART NUMBER PART NAME

F7CZ-9E498-DB Vacuum Tube

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage And Emission Warranty Coverage

OPERATION DESCRIPTION TIME

970304A Replace And Reroute 0.2 Hr.
Vacuum Tube

DEALER CODING
CONDITION
BASIC PART NO. CODE
9E498 43

OASIS CODES: 206000, 623000, 698298
