Evaporative Emission Control Canister: Service and Repair

REMOVAL AND INSTALLATION

NOTE: Refer to Service Precautions before beginning procedure.

1. Raise and support the vehicle.






2. Remove the two fuel vapor lines.

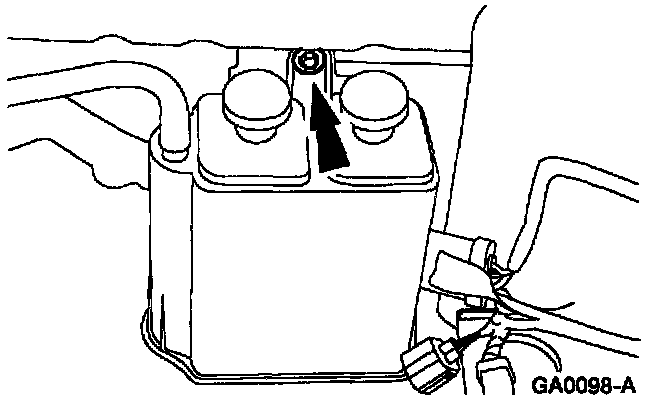

3. Remove the bolt and the Evaporative Emissions (EVAP) canister.
4. To install, reverse the removal procedure.
