Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Testing and Inspection >> Pinpoint Tests >> A3 - A4

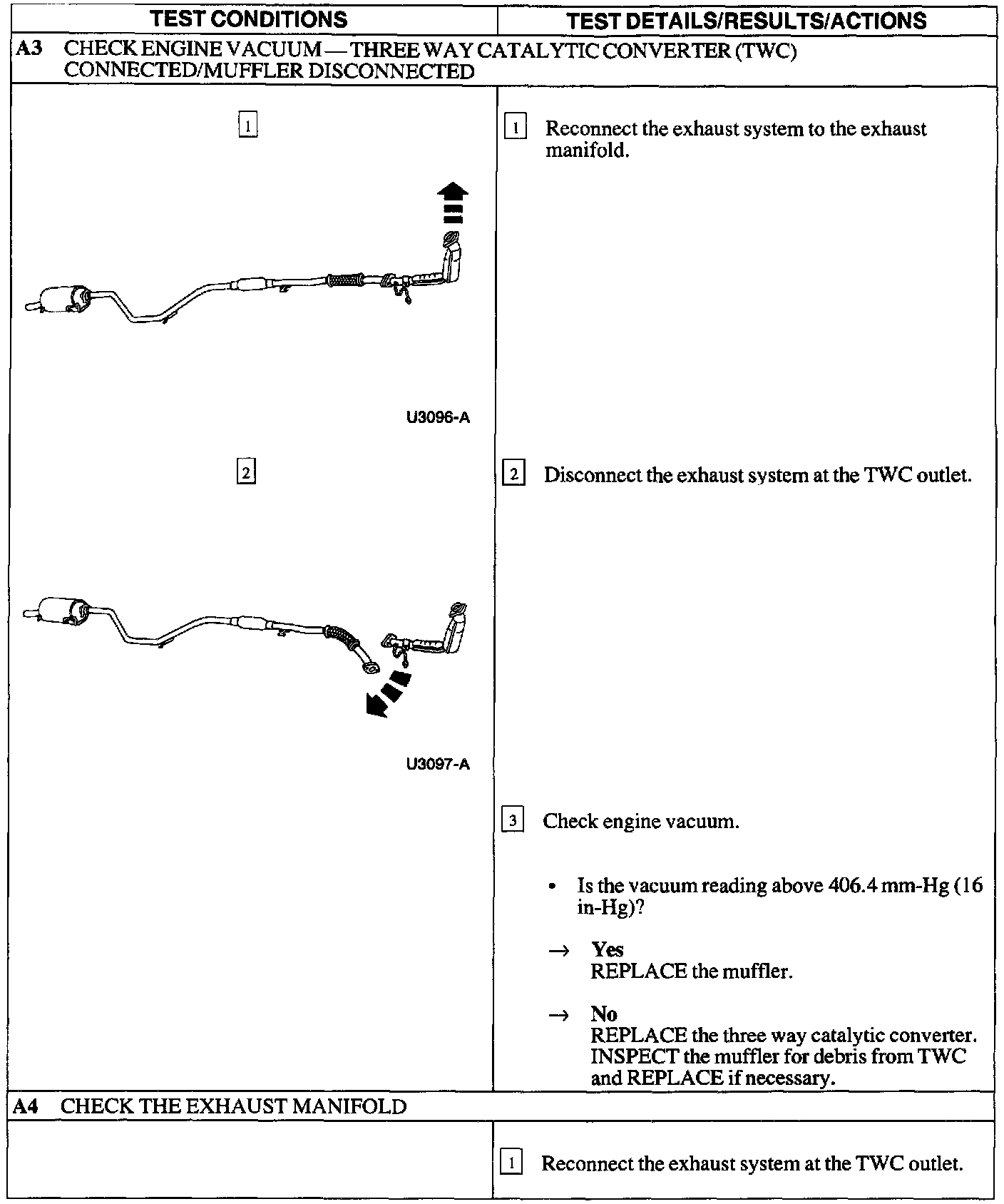

A3 - A4

A3 - A4:



A4 (Continued):
