Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views

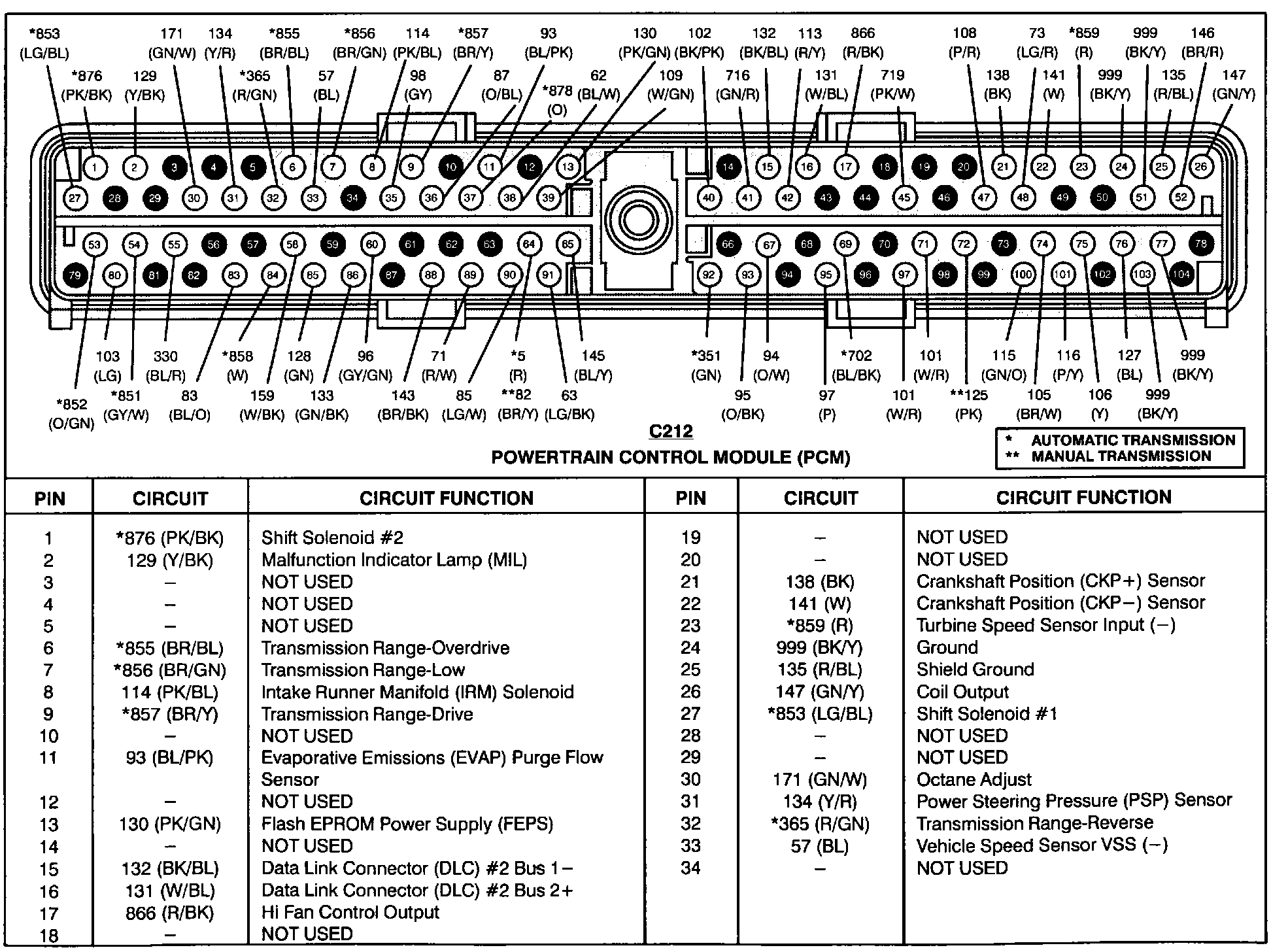

Connector Views

Powertrain Control Module:

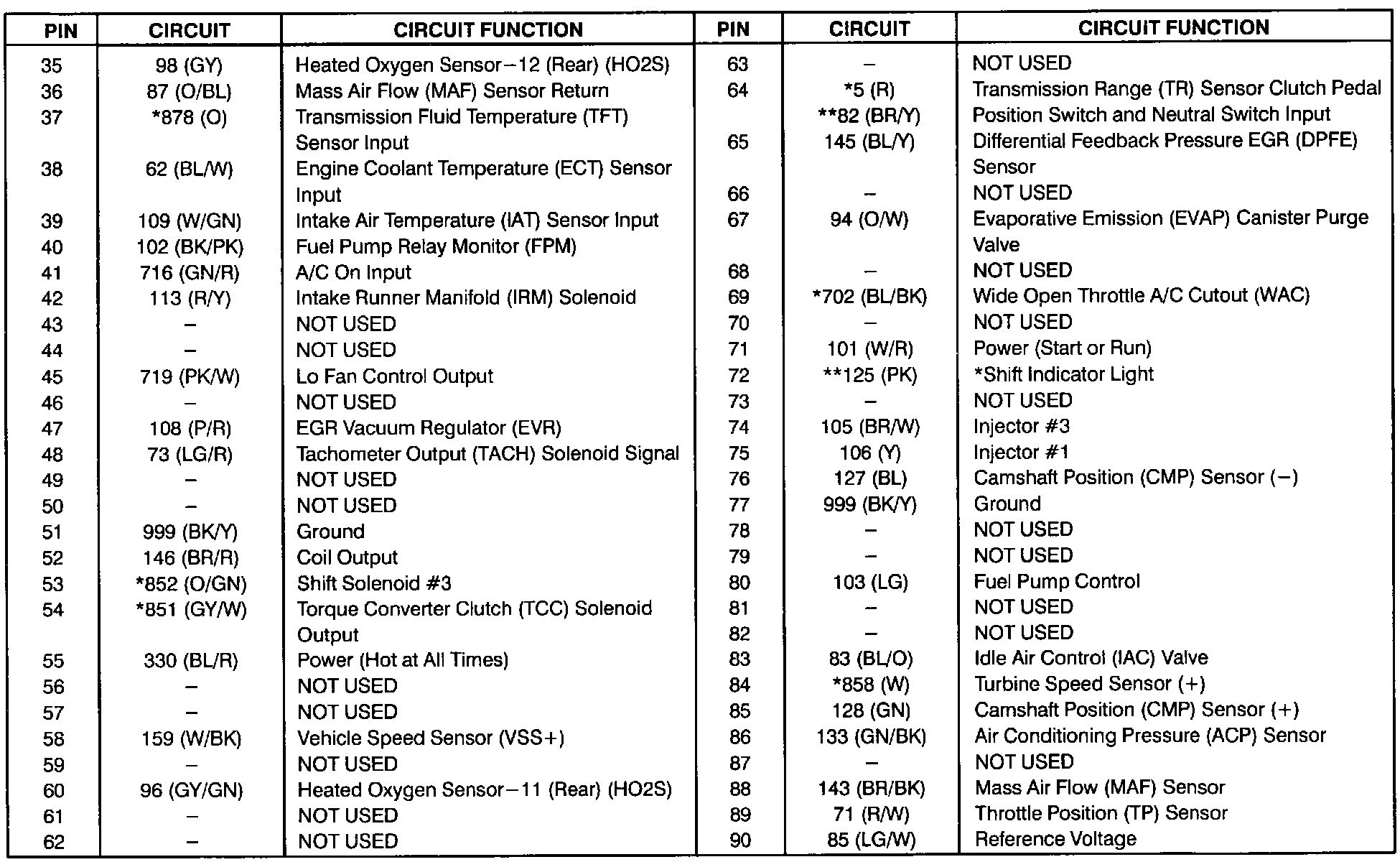

Powertrain Control Module:




Powertrain Control Module:
