Wagon

REMOVAL







1. Disconnect the battery ground cable.

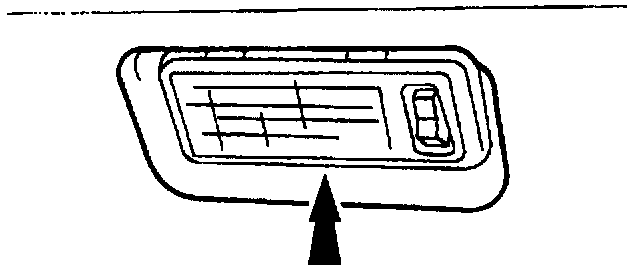

2. Remove the luggage compartment lamp lens.







3. Remove the miniature bulb.

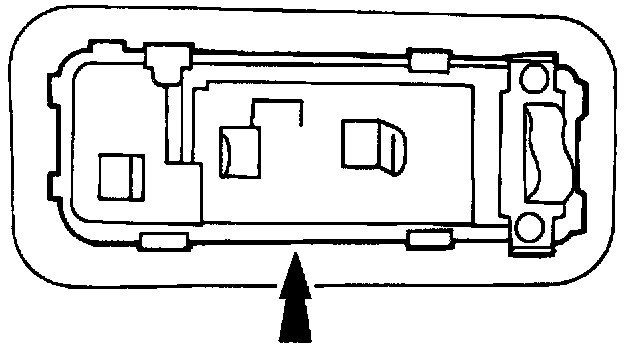

4. Pry the luggage compartment lamp from the liftgate door trim panel.

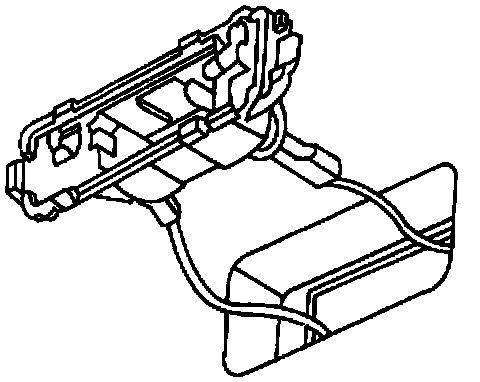

5. Disconnect the two luggage compartment lamp electrical connectors.







INSTALLATION
1. To install, reverse the removal procedure.
