Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Test B: Horn Sounds Continuously

Test B: Horn Sounds Continuously

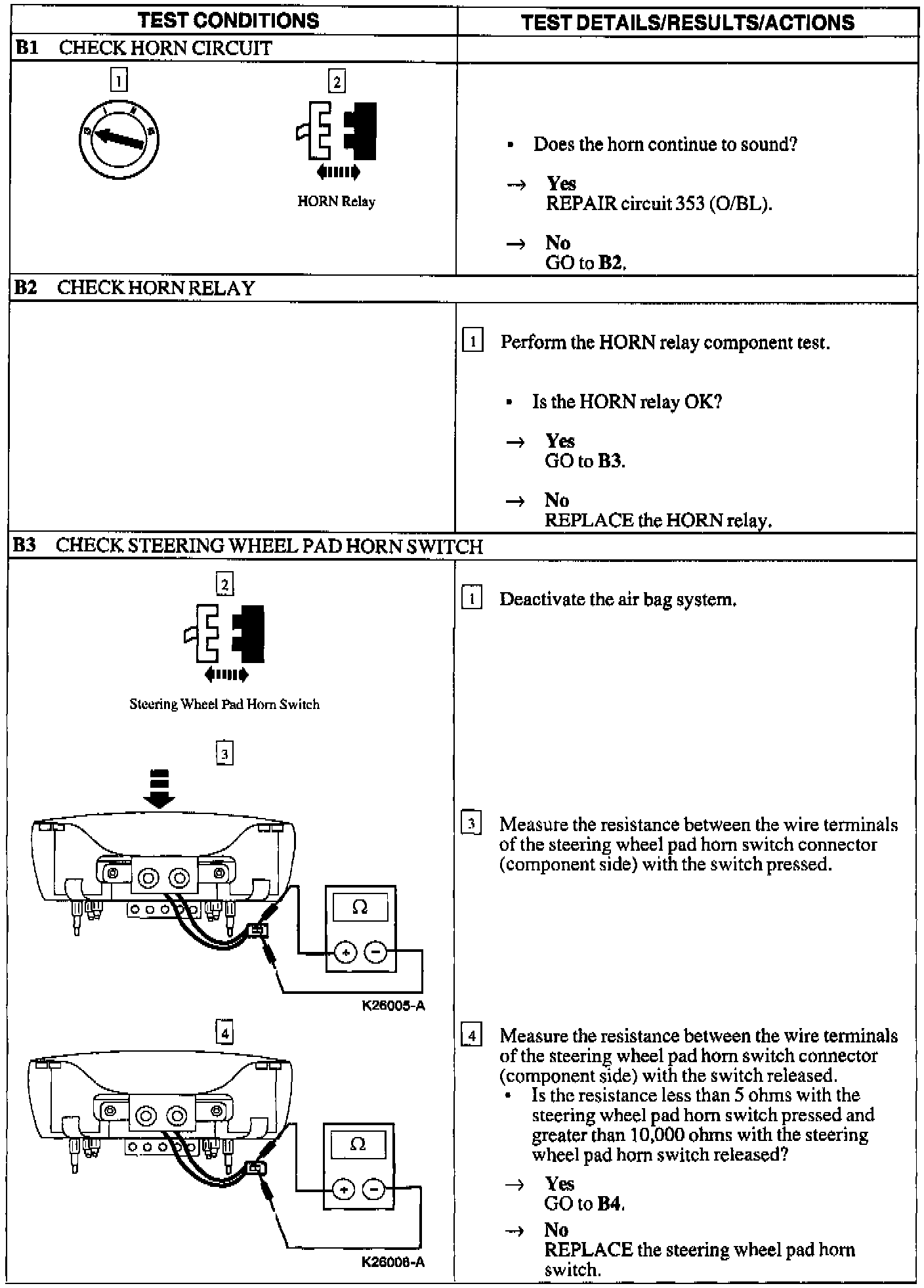

B1-B3:

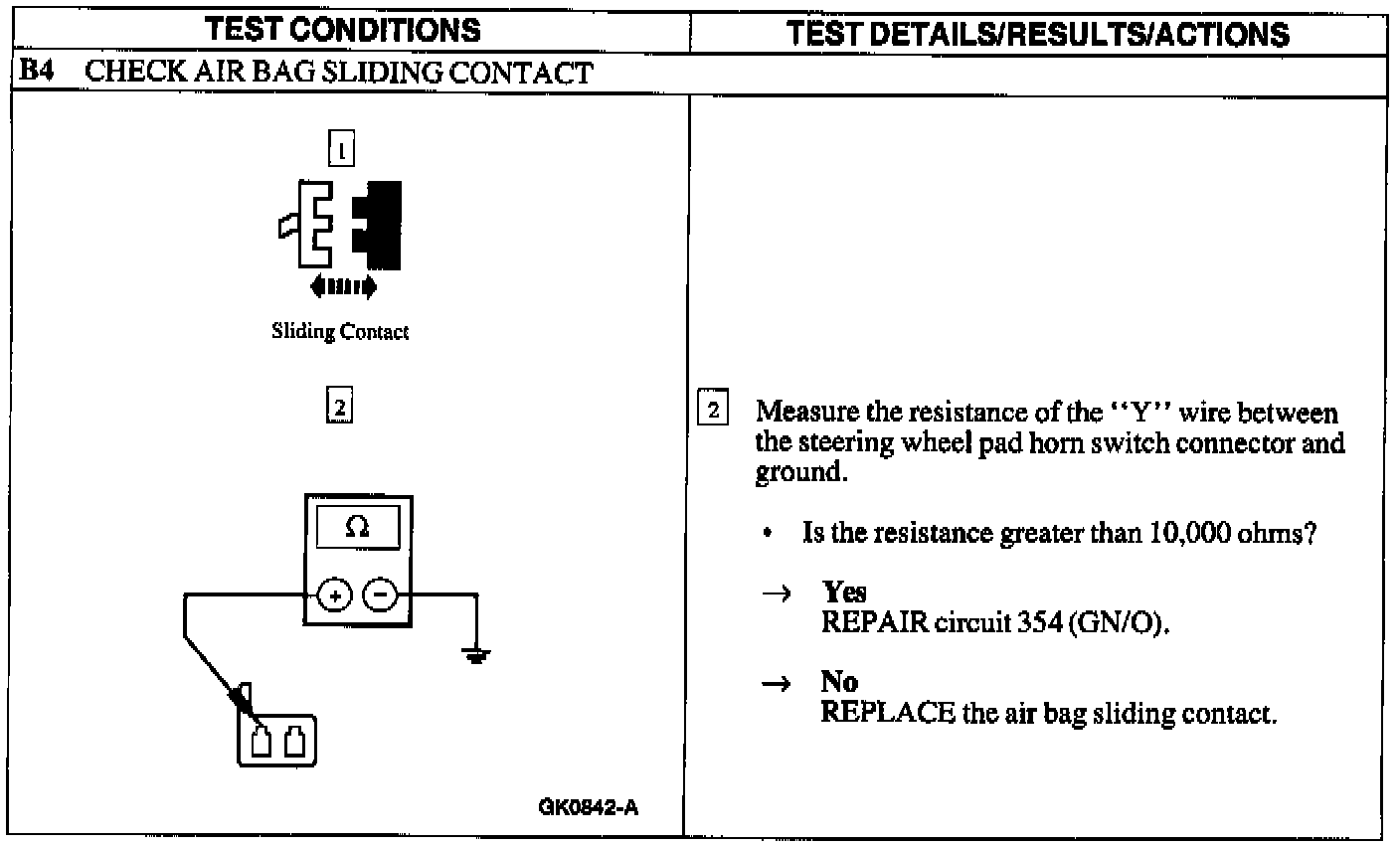

B4:
