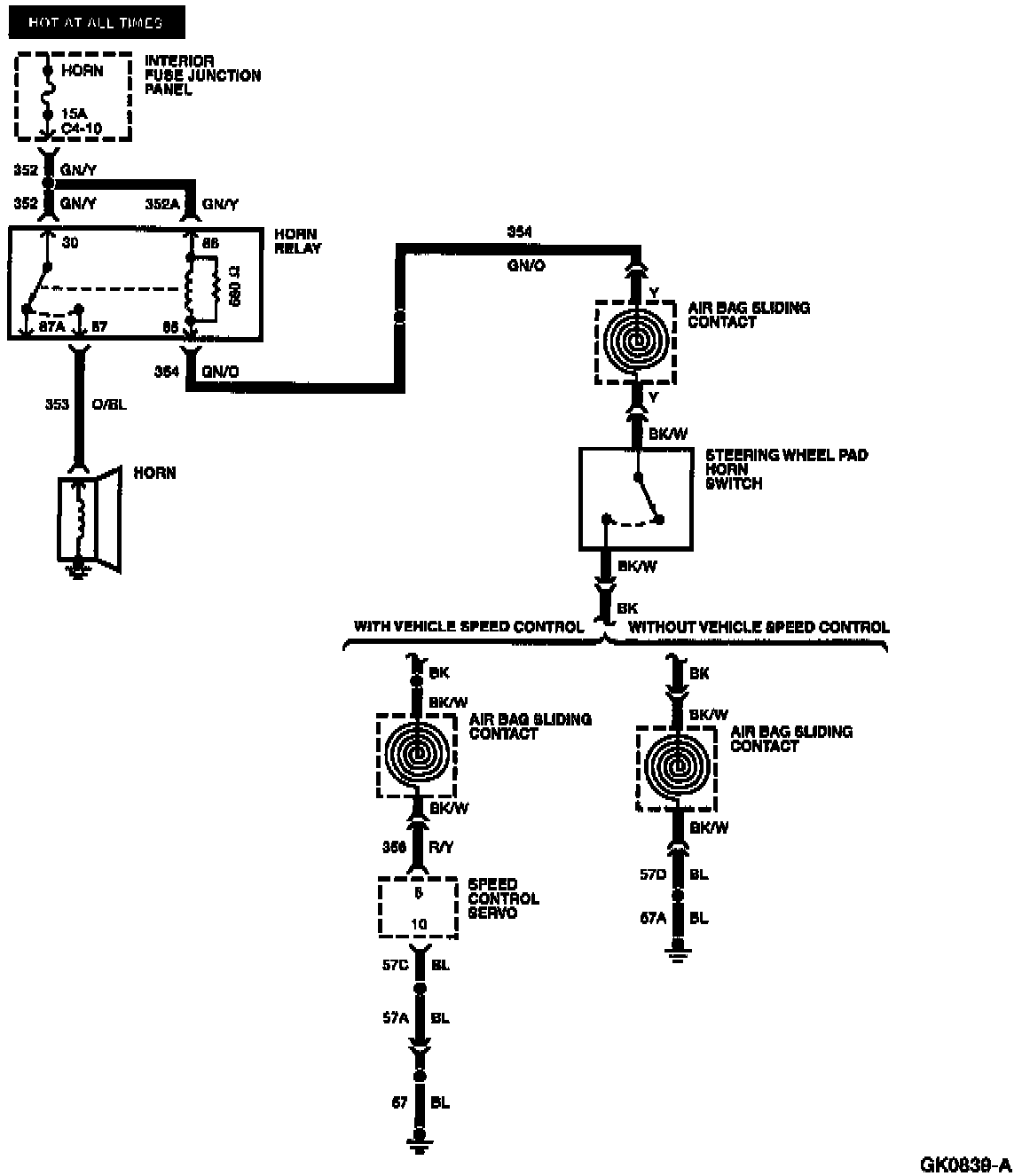

Diagnostic Schematic and Connector Information

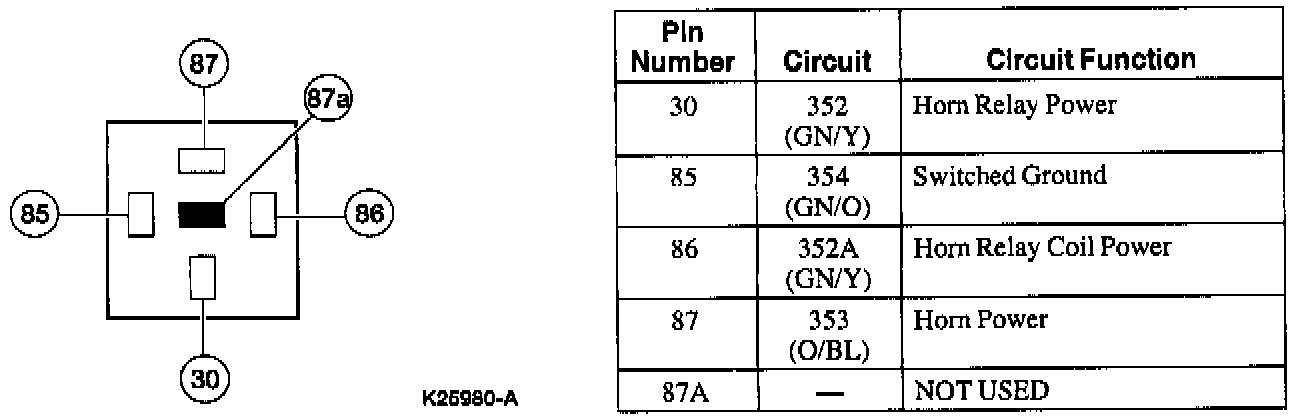

HORN Relay Connector:
Interior Fuse Junction Panel Connector C4:

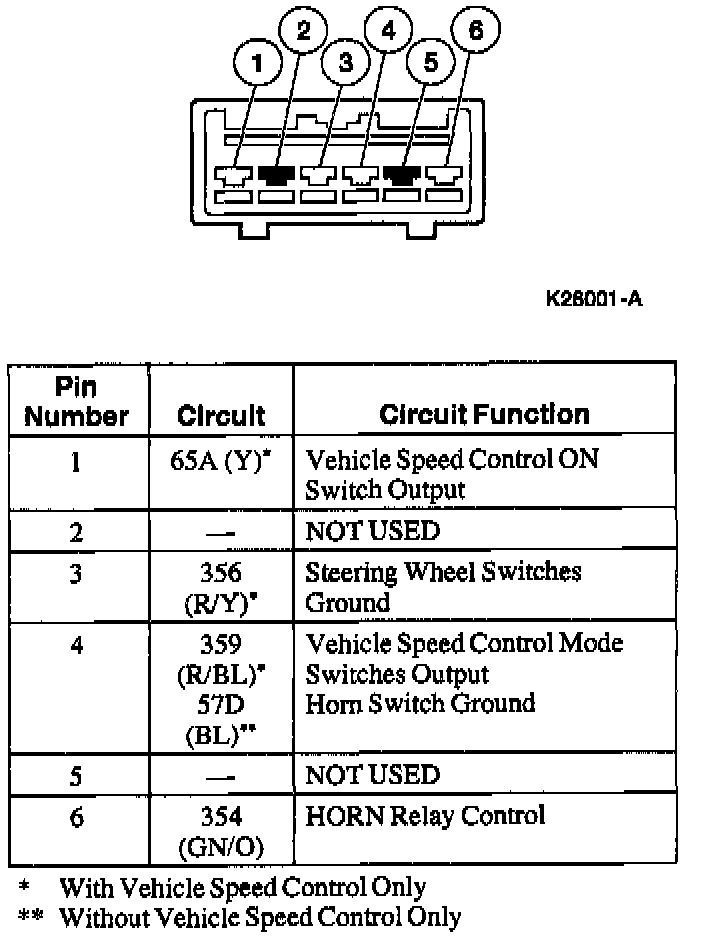

Air Bag Sliding Contact Connector:
Speed Control Servo Connector:
