Coupe and Sedan

REMOVAL

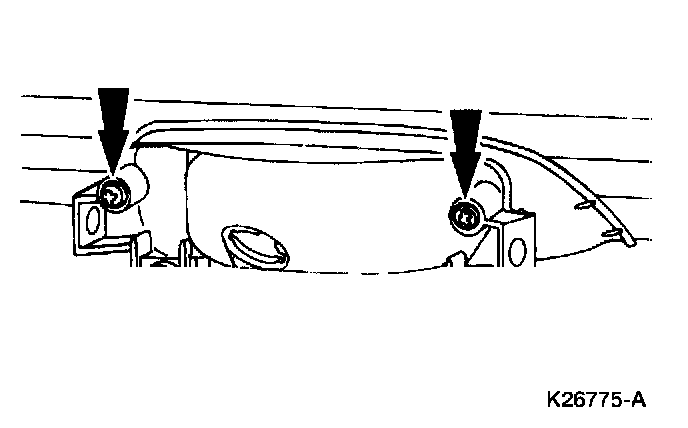

1. Remove the two hi-mount stop lamp fasteners.

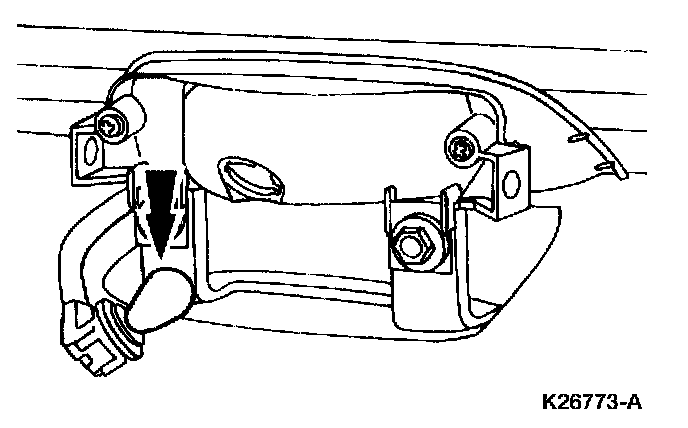

2. Disconnect the hi-mount lamp socket.







3. Remove the hi-mount lamp bulb.

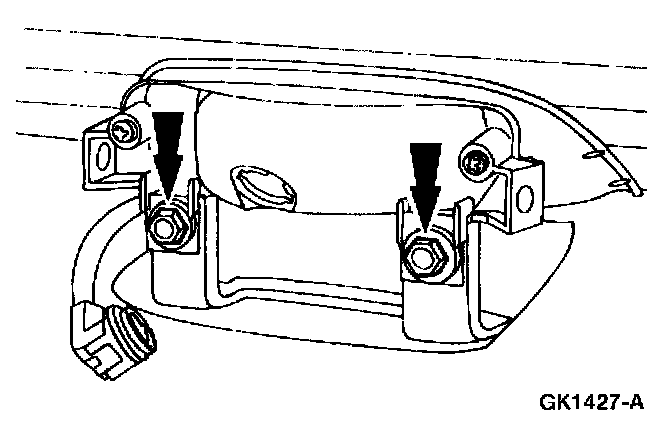

4. Remove the two hi-mount lamp bolts.

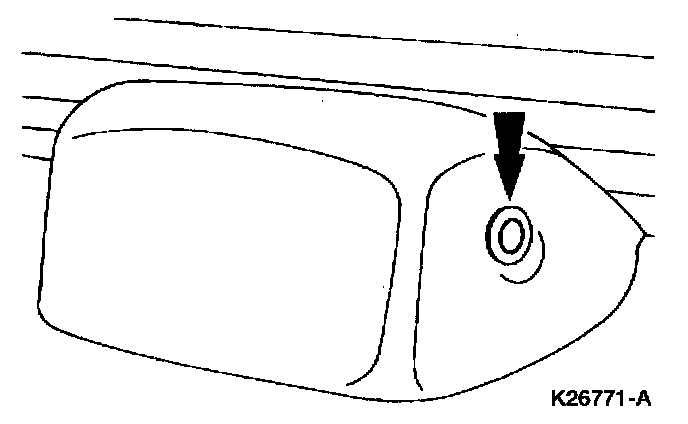

5. Remove the two hi-mount lamp lens screws.


INSTALLATION
1. To install, reverse the removal procedure.
