Backup Lamp: Service and Repair

REMOVAL

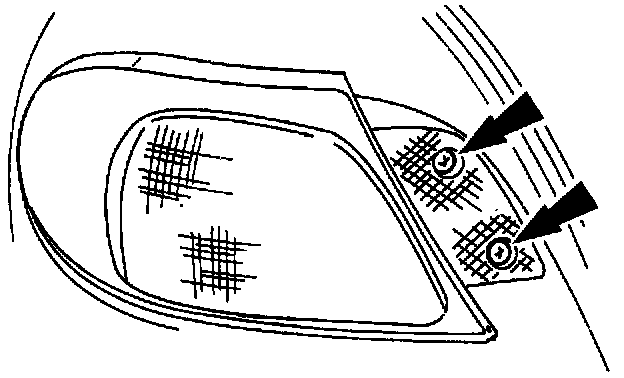

1. Remove the two rear lamp screws and the rear lamp.

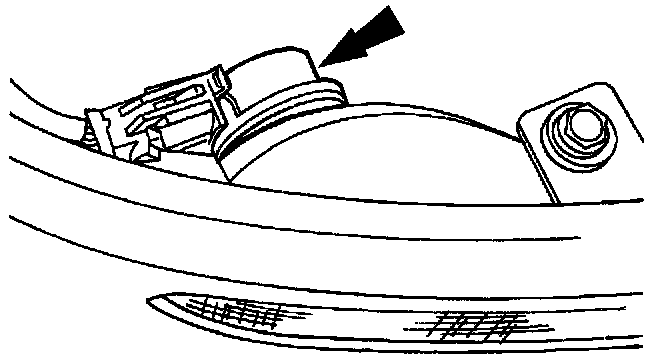

2. Disconnect the backup lamp socket.

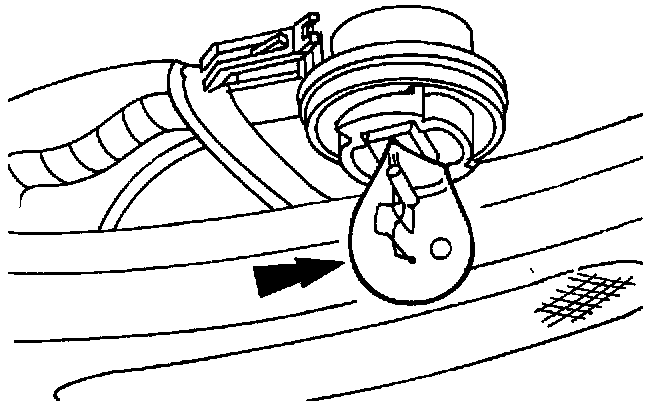

3. Remove the backup lamp bulb.

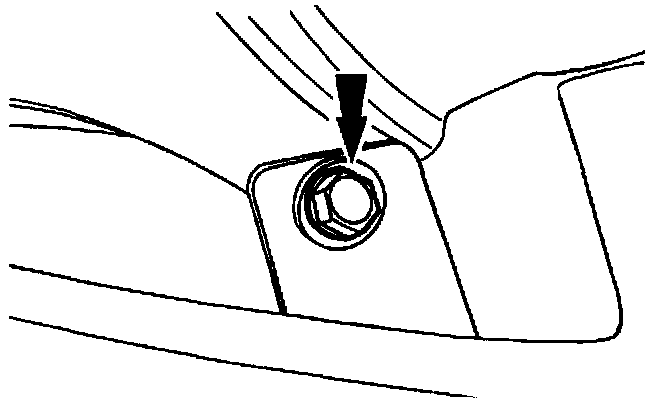

4. Remove the backup lamp screw and the backup lamp housing.

INSTALLATION
1. To install, reverse the removal procedure.
