Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Backup Light Bulb
>>
Service and Repair
>>
Sedan
Sedan
REMOVAL
1.

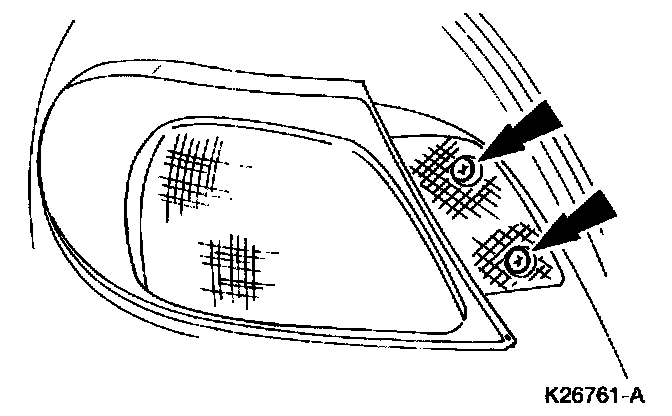

Remove the two rear lamp screws and the rear lamp.
2.

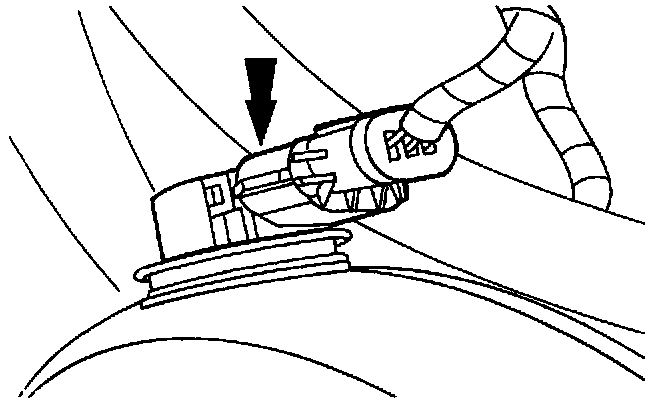

Disconnect the rear lamp socket.
3.

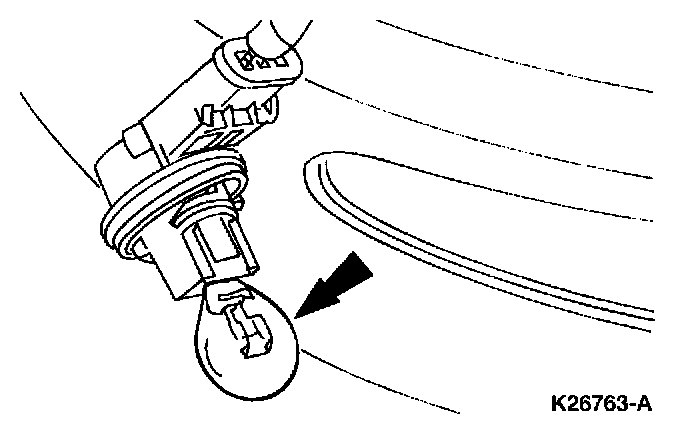

Remove the rear lamp bulb.
INSTALLATION
1.
To install, reverse the removal procedure.
