Tachometer: Service and Repair

REMOVAL
1. Remove the instrument cluster.






2. Remove the five instrument cluster mask screws and remove the mask and lens.

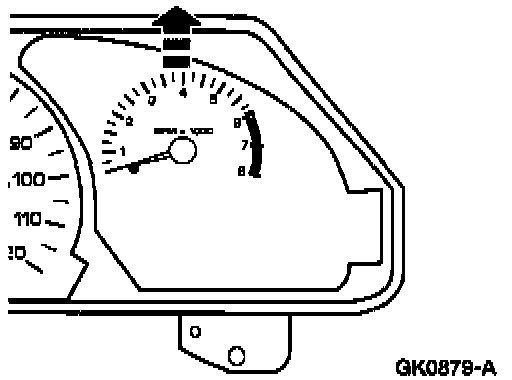

3. Remove the tachometer by pulling it straight out.

CAUTION: Handle gauges and components with care to avoid possible damage.

NOTE: Make no attempt to adjust the needle.

Installation
1. To install, reverse the removal procedure.
