Odometer: Service and Repair

REMOVAL
1. Remove the instrument cluster.






2. Remove the five instrument cluster mask screws and remove the mask and lens.

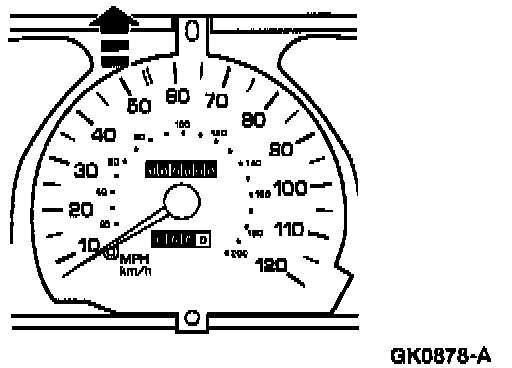

3. Remove the speedometer/odometer by pulling it straight out.

CAUTION: Handle gauge and components with care to avoid possible damage.

NOTE: Make no attempt to adjust the needle.

INSTALLATION
1. To install, reverse the removal procedure.
