Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> V: Improper Liftgate Warning Indicator Operation

V: Improper Liftgate Warning Indicator Operation

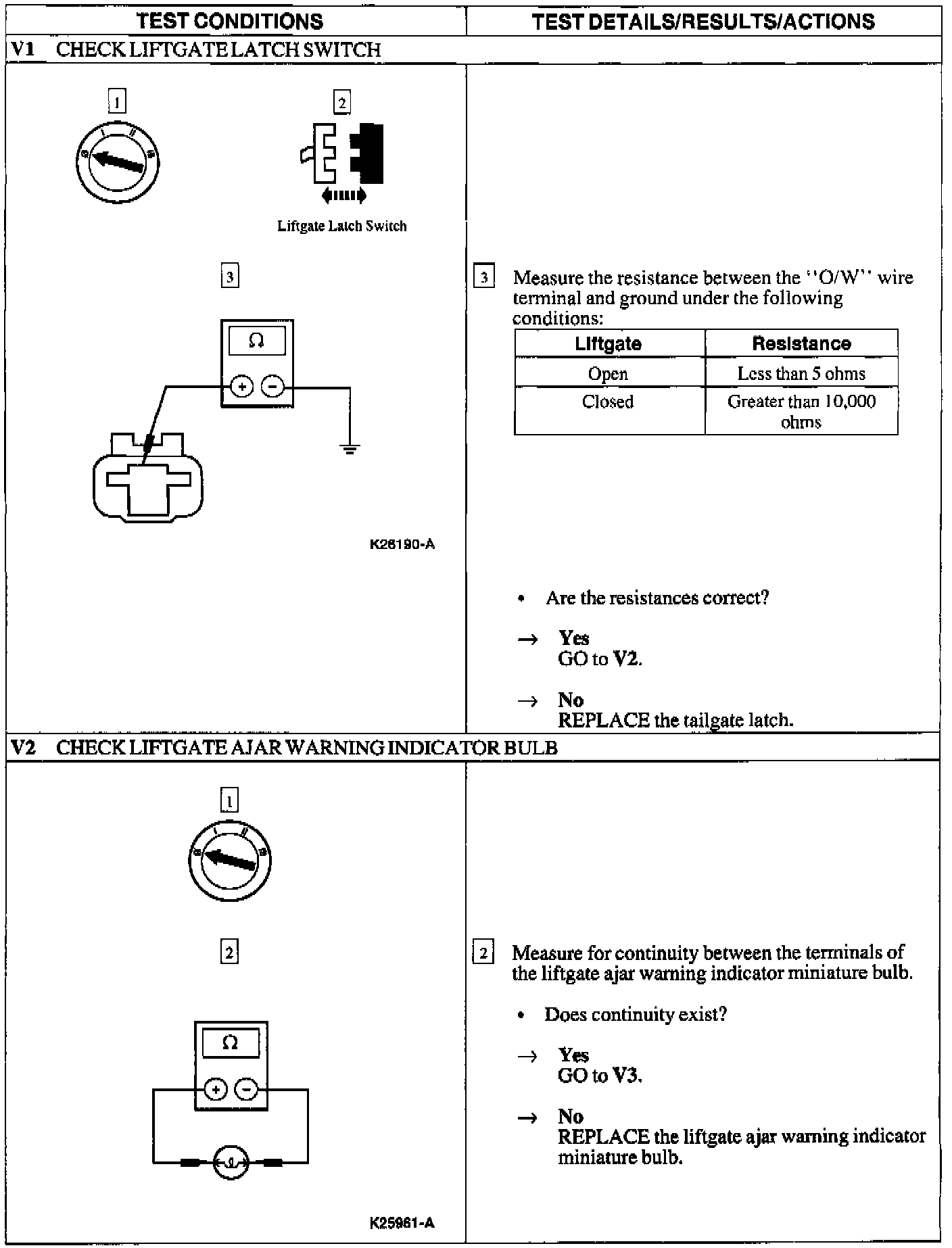

V1-V2:






V3-V4:
