Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> S: Improper Check Coolant Indicator Operation

S: Improper Check Coolant Indicator Operation

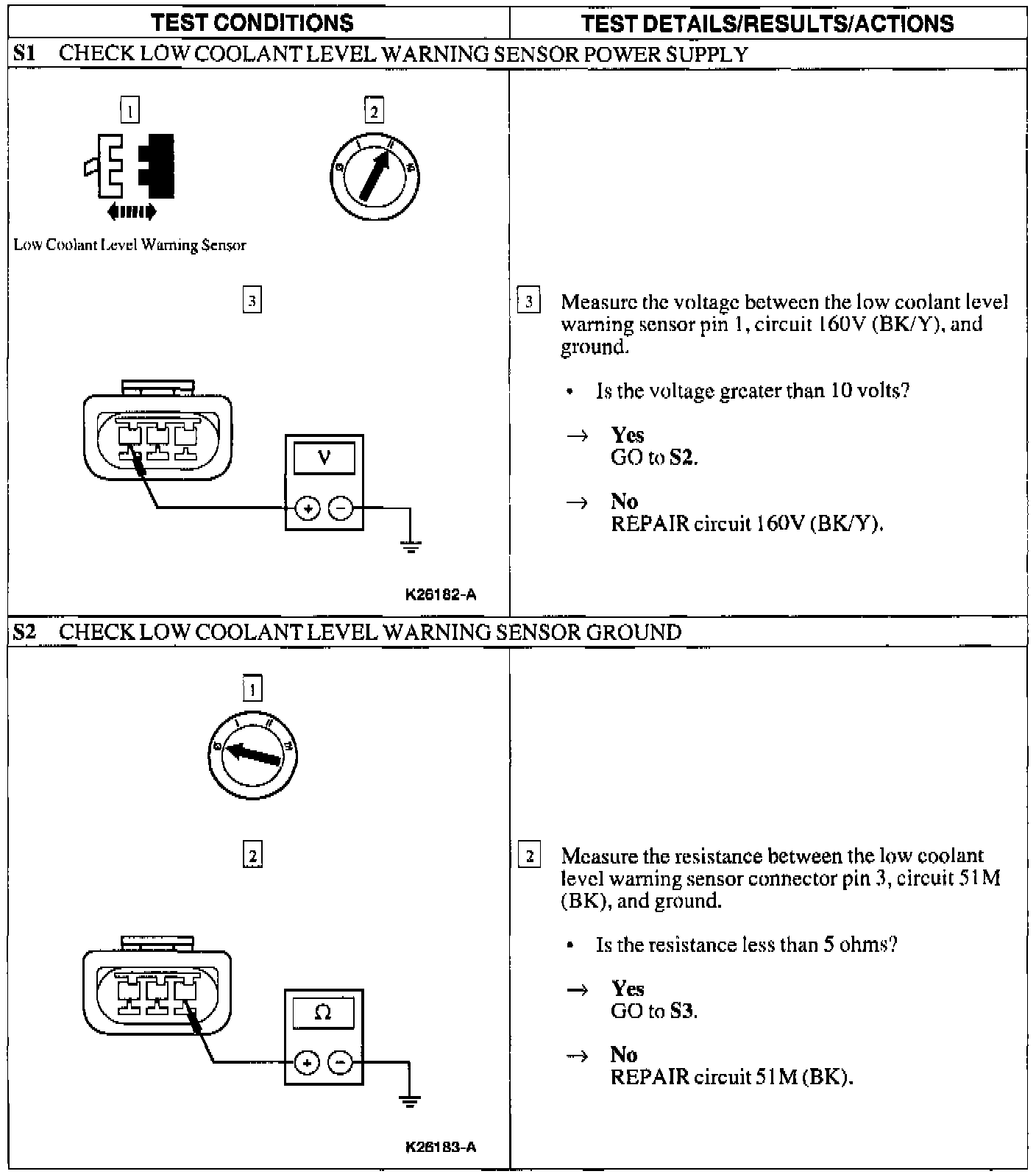

S1-S2:

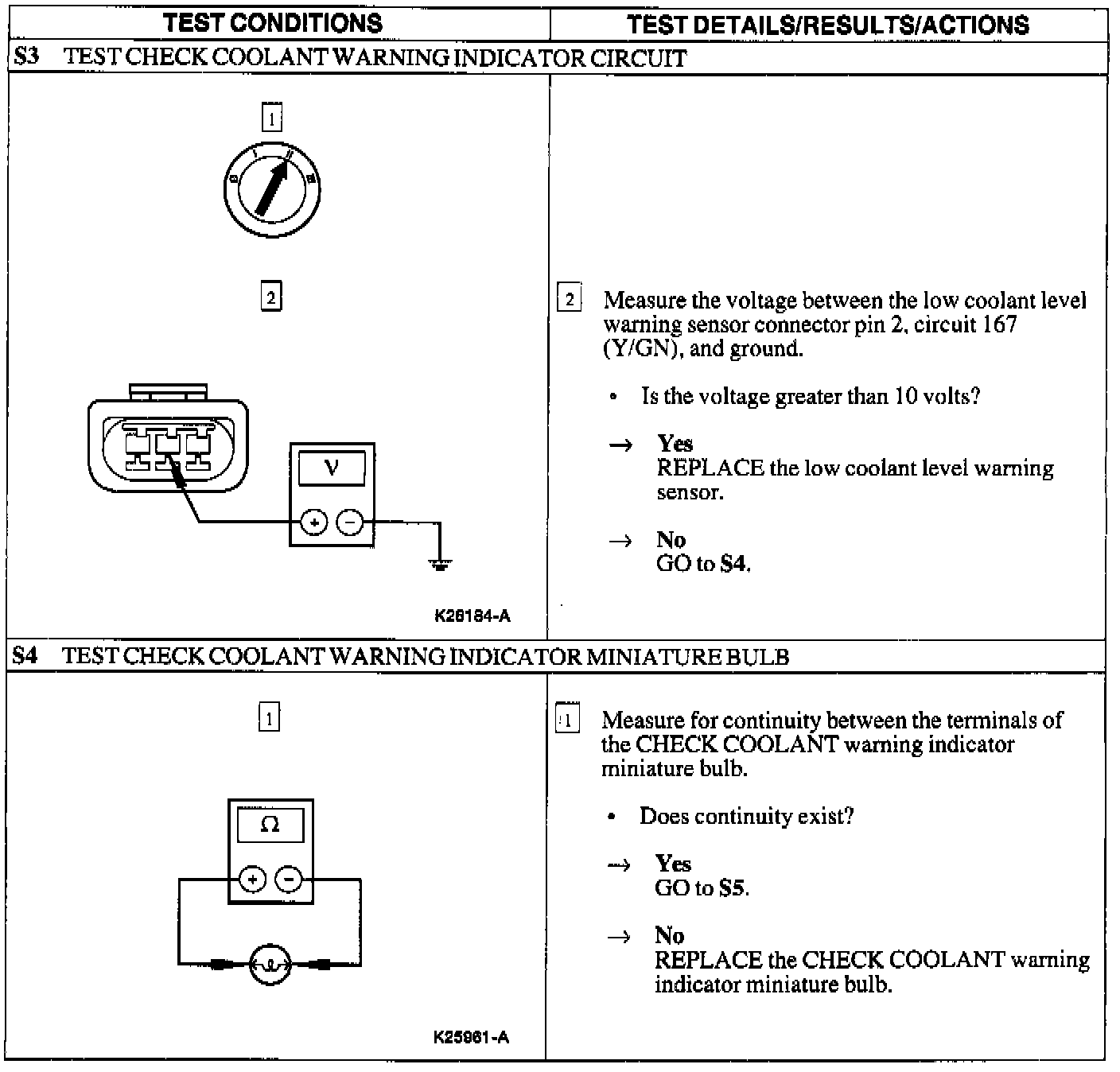

S3-S4:

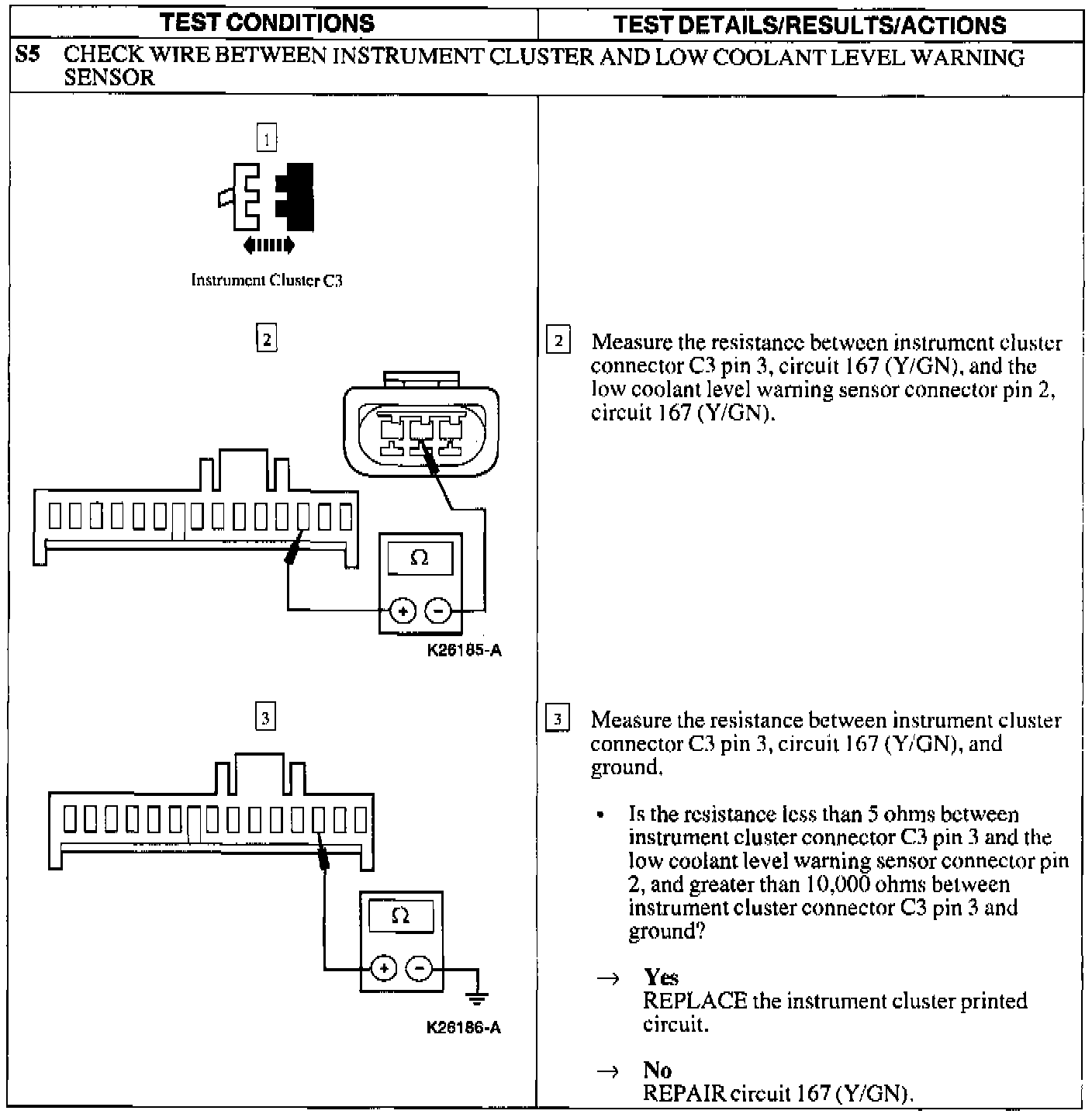

S5:
