K: An Indicator Is Inop/Always ON - Low Oil Pressure
K: An Indicator Is Inop/Always ON - Low Oil Pressure

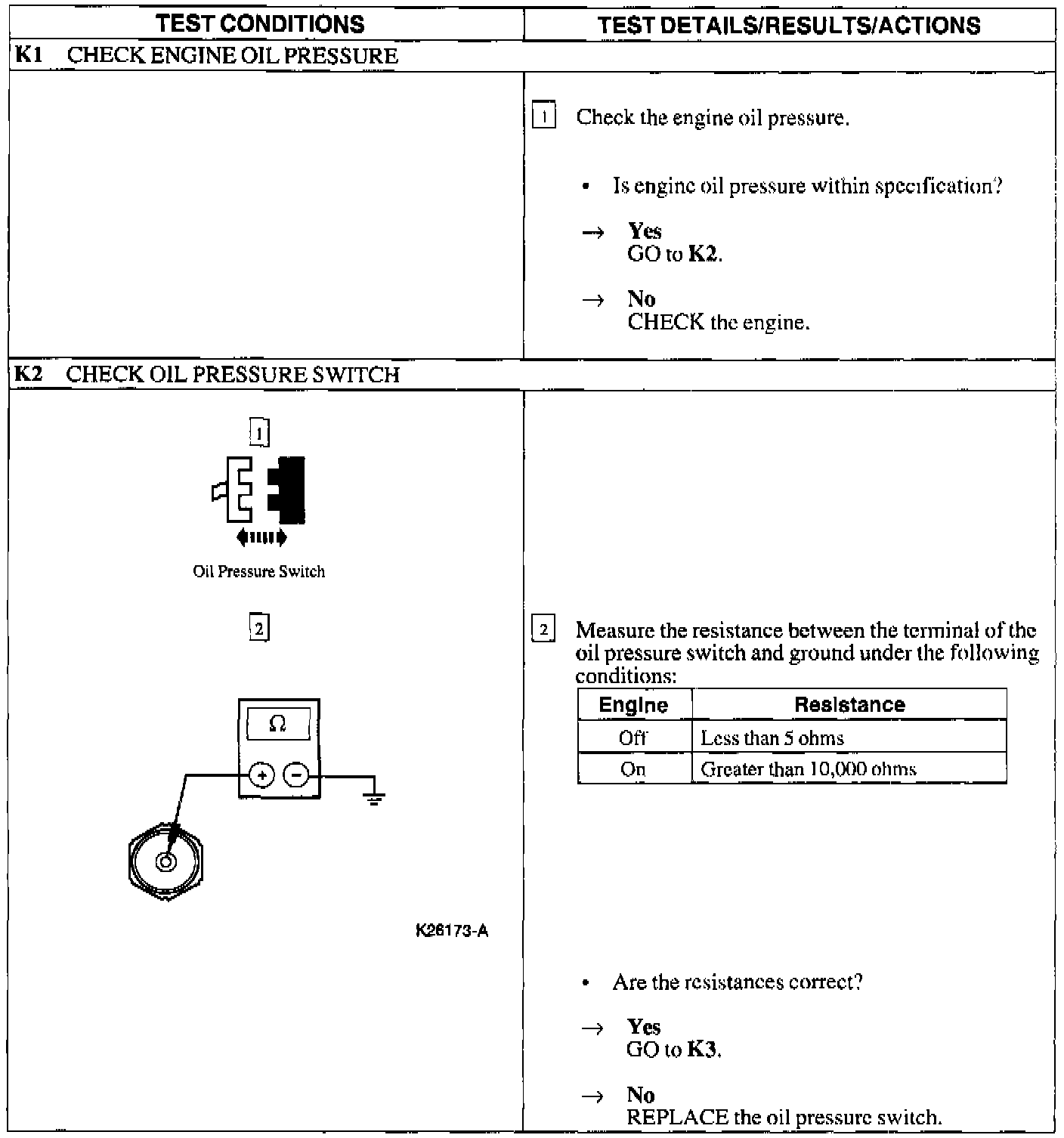

K1-K2:

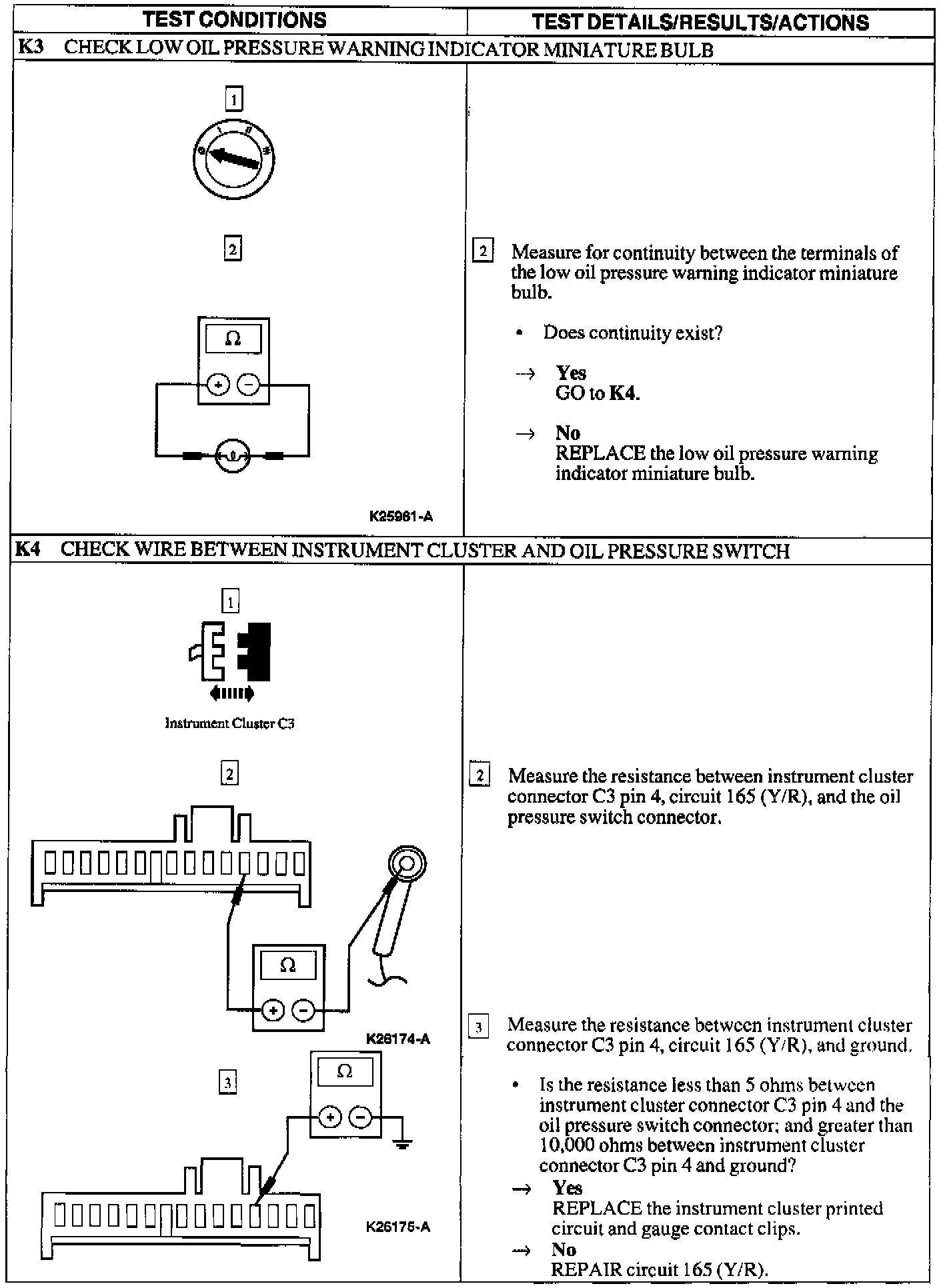

K3-K4:
