Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> F: Brake Warning Indicator Is Never/Always ON

F: Brake Warning Indicator Is Never/Always ON

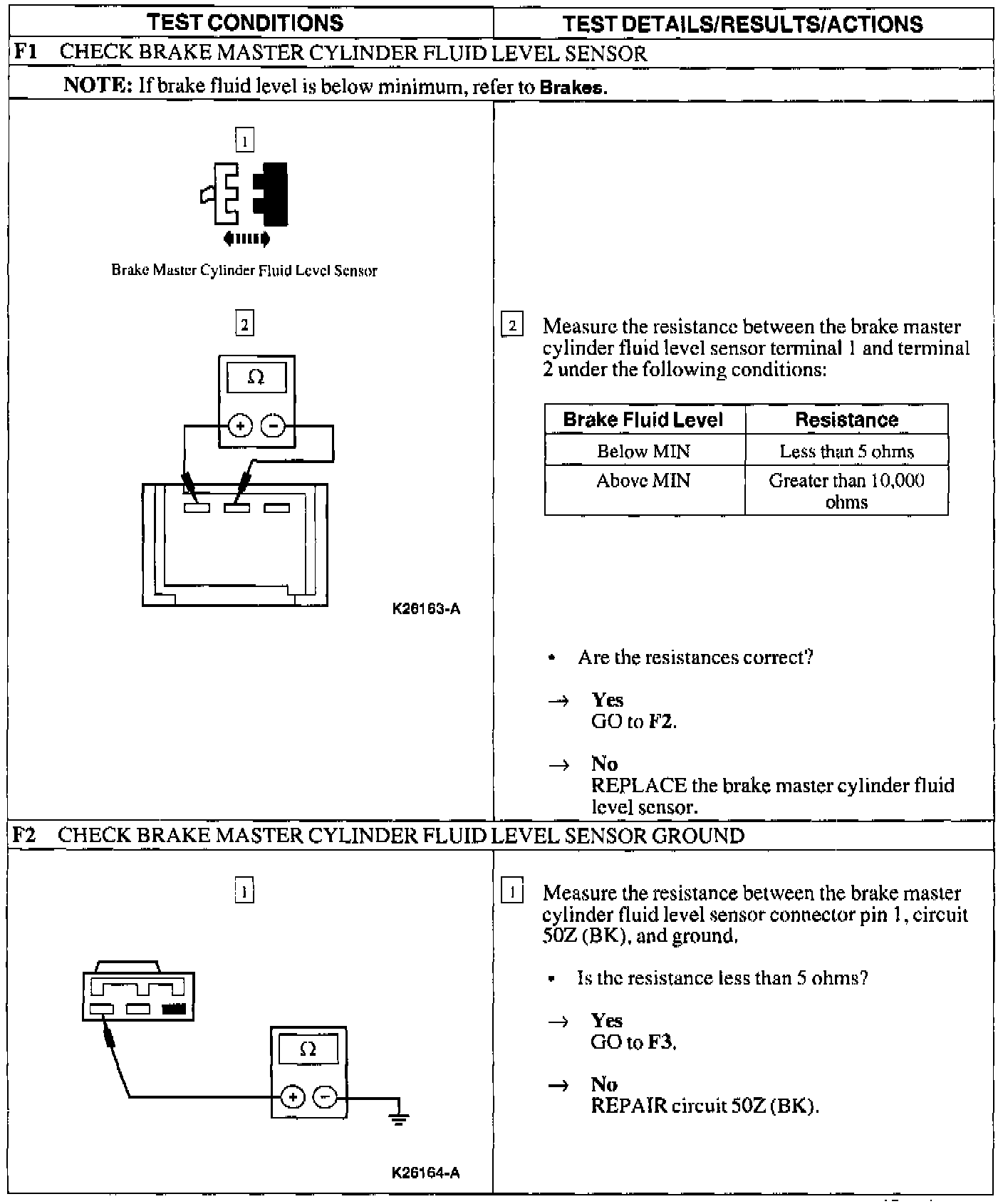

F1-F2:

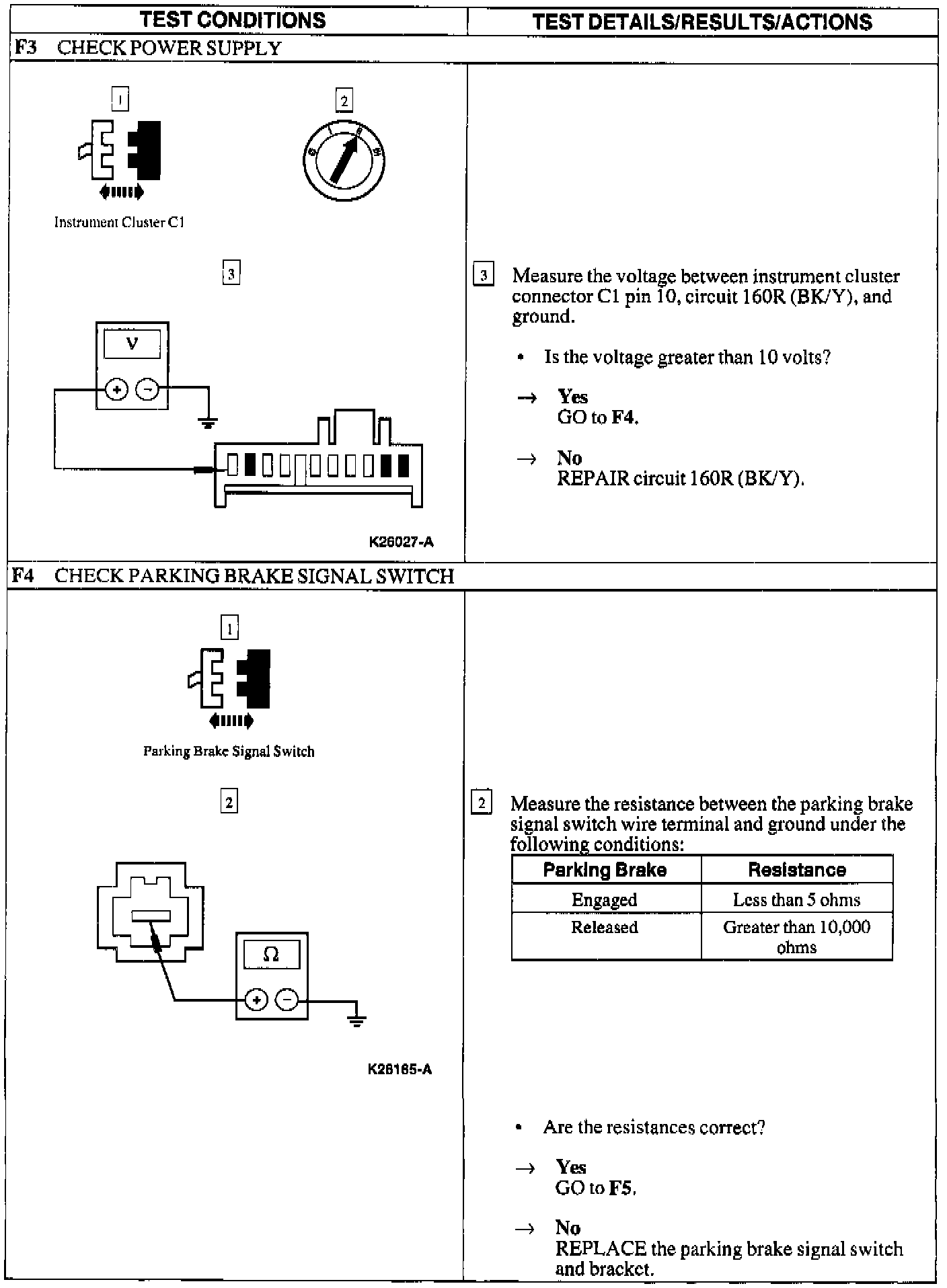

F3-F4:

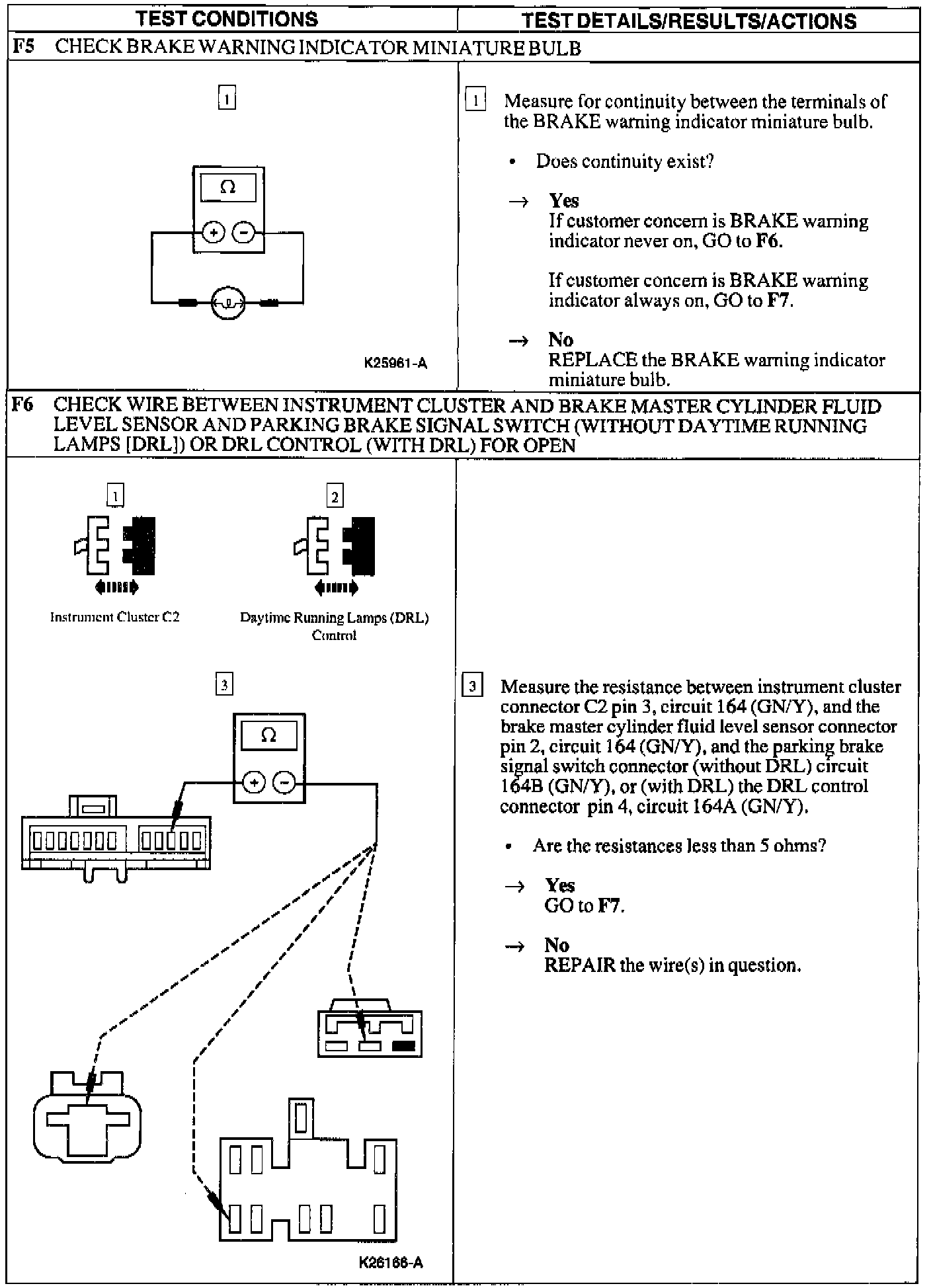

F5-F6:

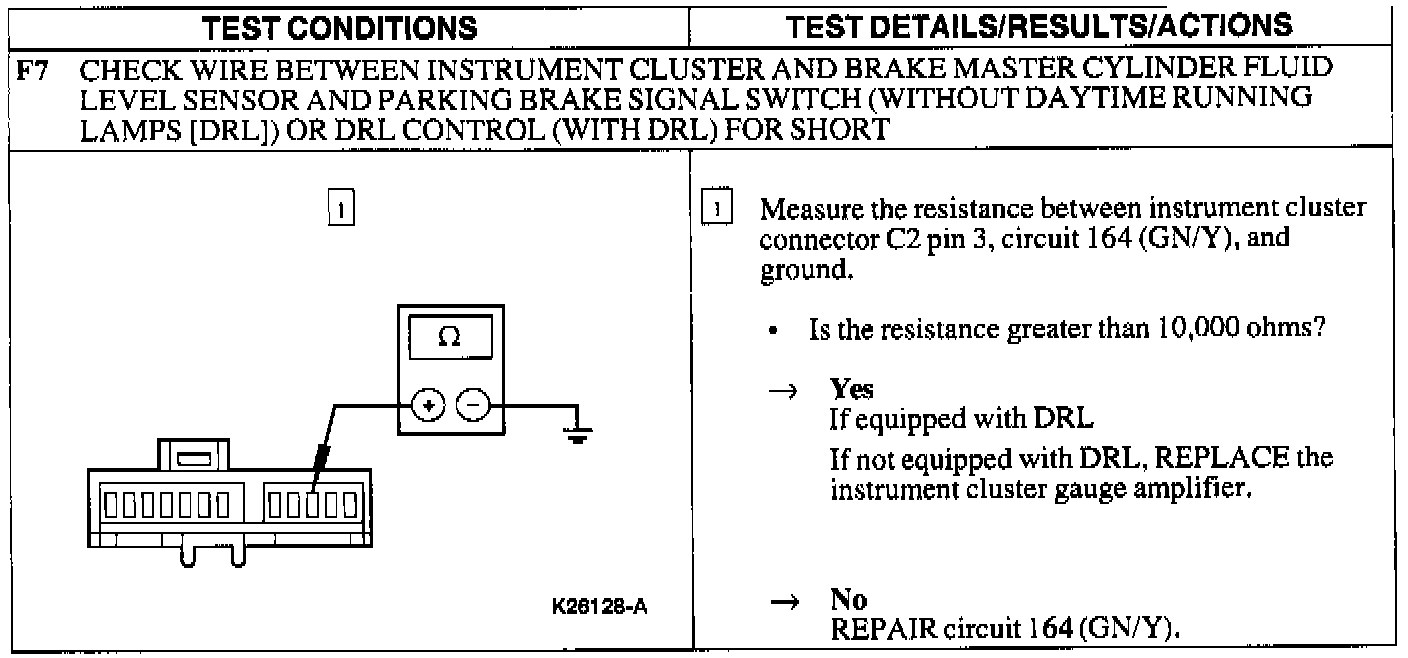

F7:
