Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> D: Incorrect Speedometer/Odometer Operation

D: Incorrect Speedometer/Odometer Operation

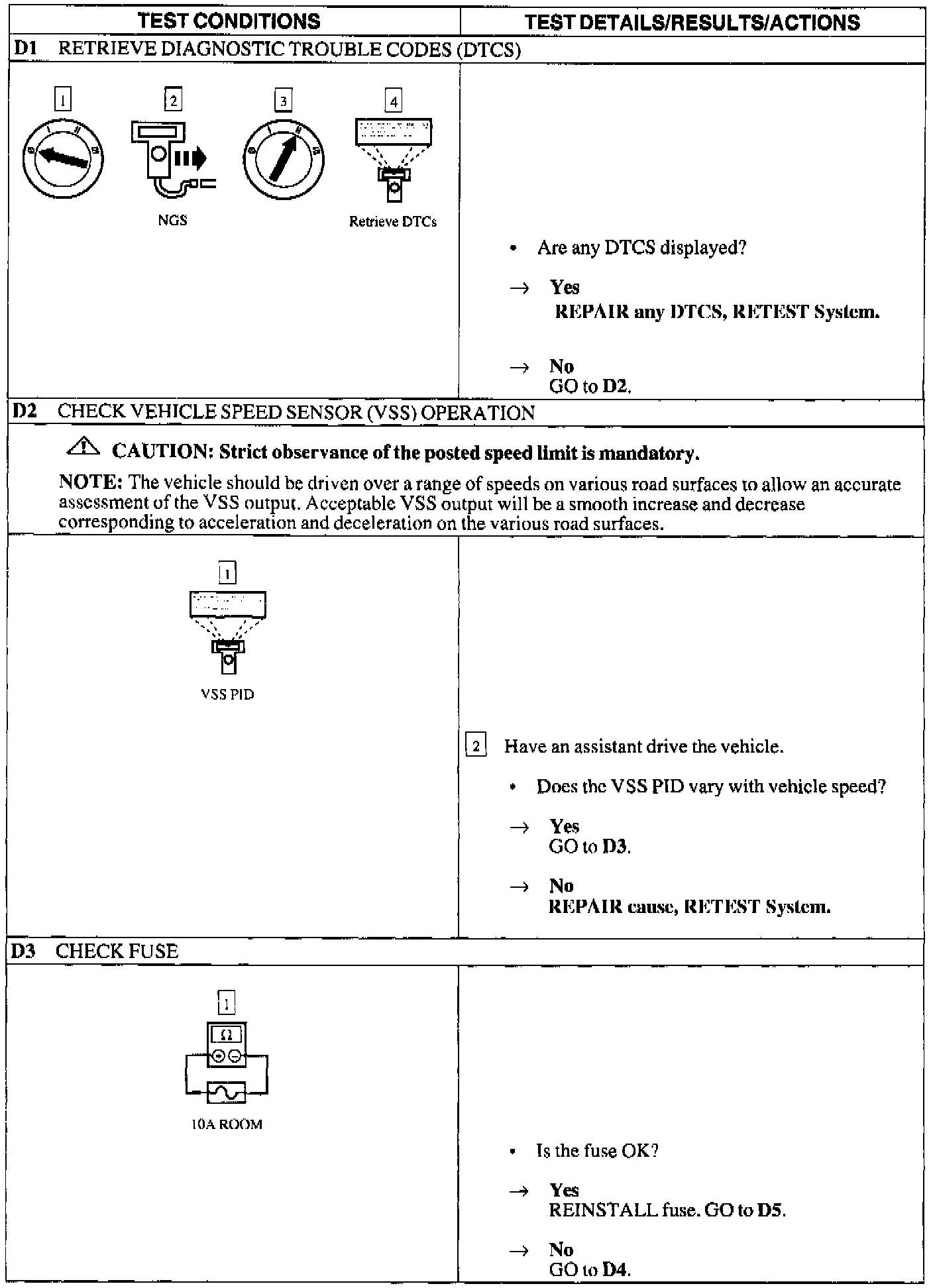

D1-D3:

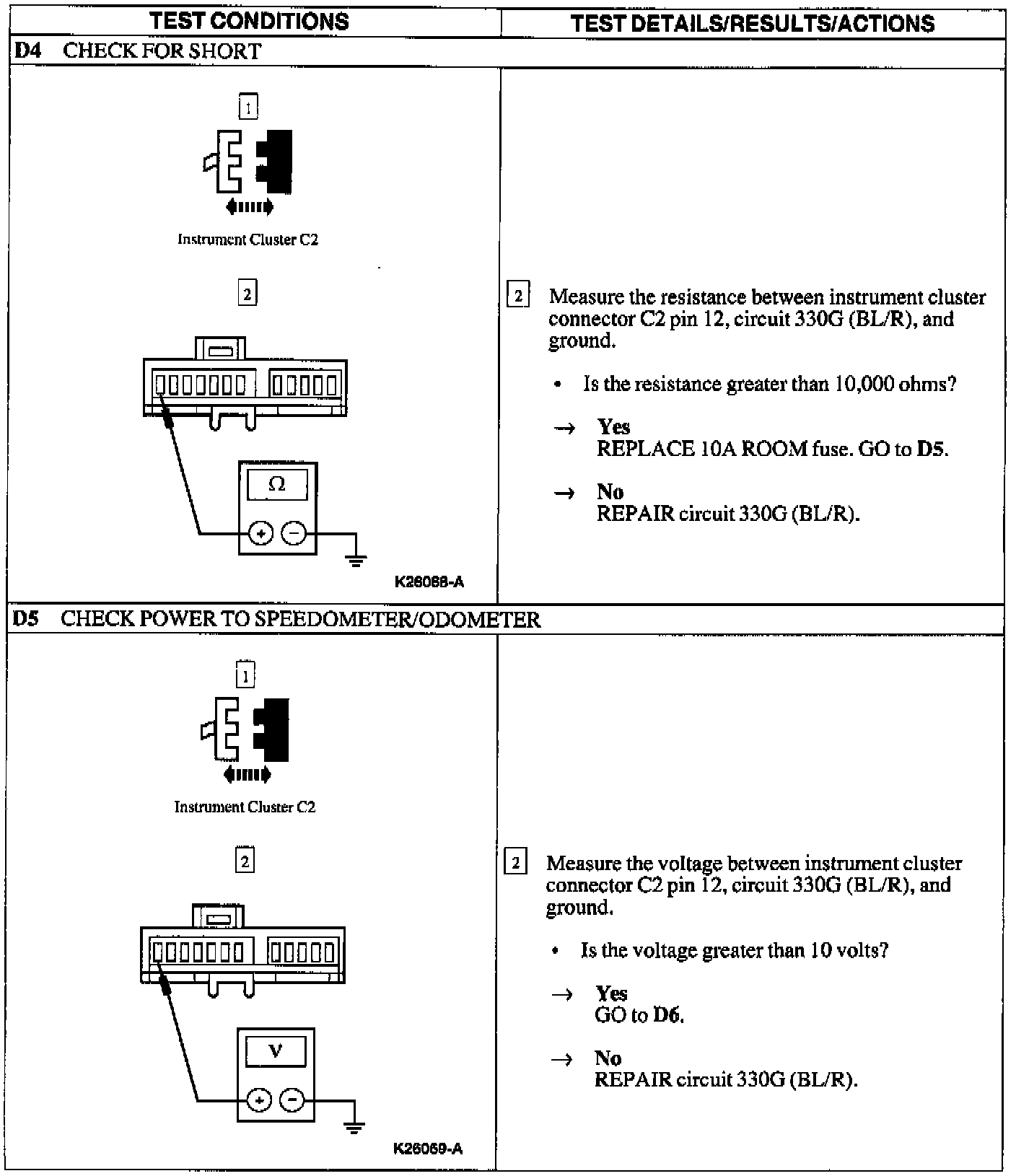

D4-D5:

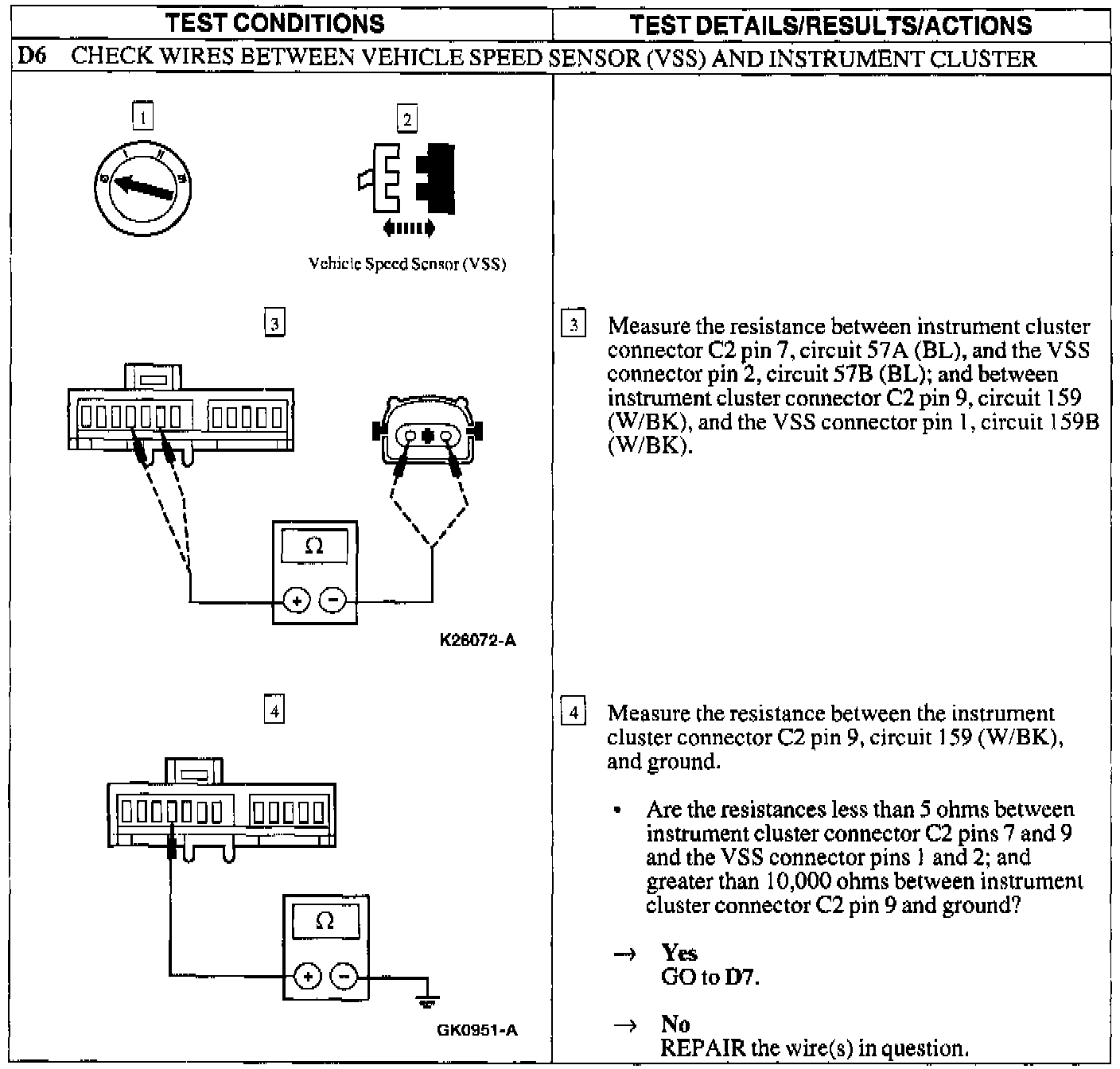

D6:

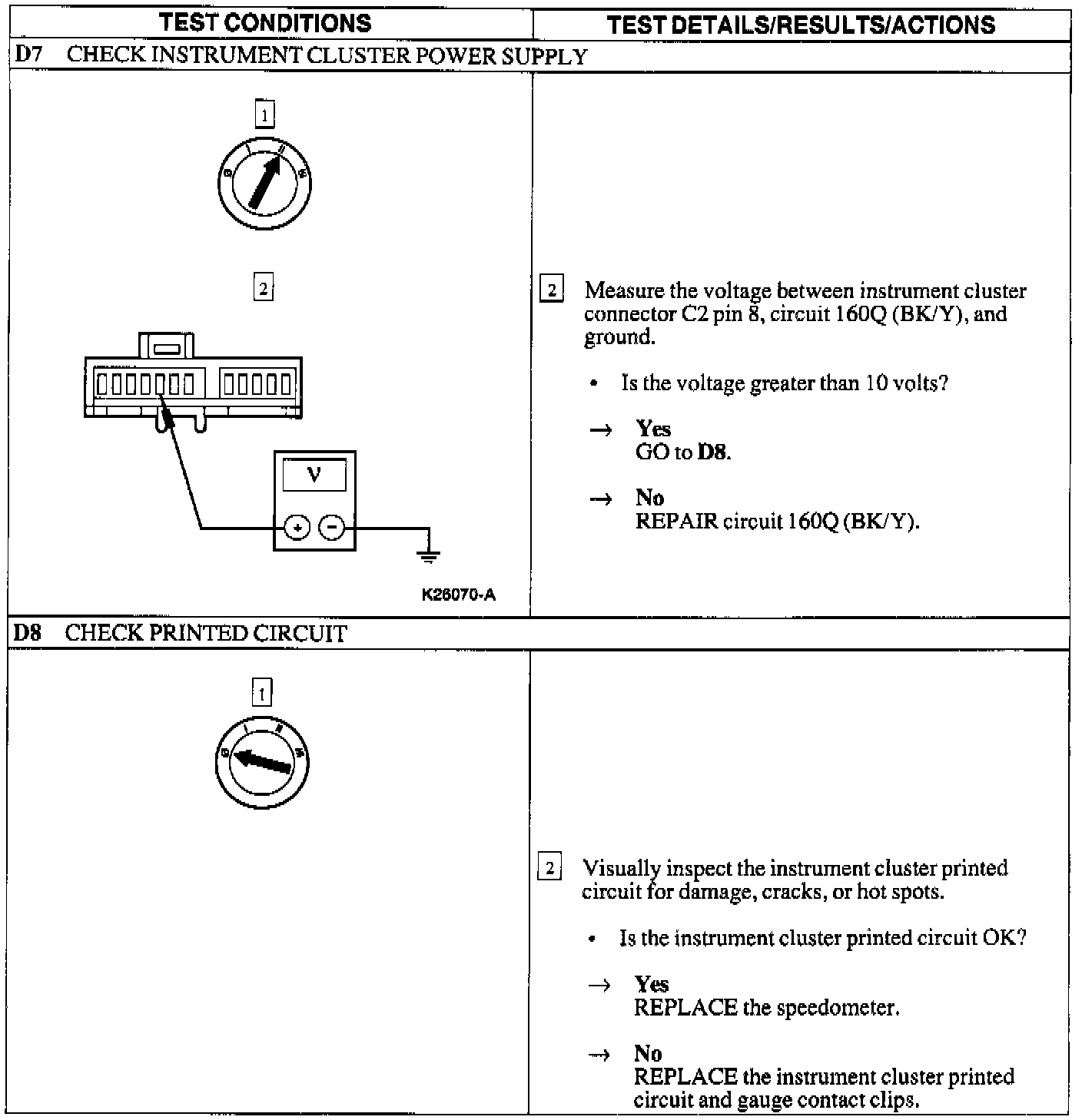

D7-D8:
