Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> C: Incorrect Temperature Gauge Indication

C: Incorrect Temperature Gauge Indication

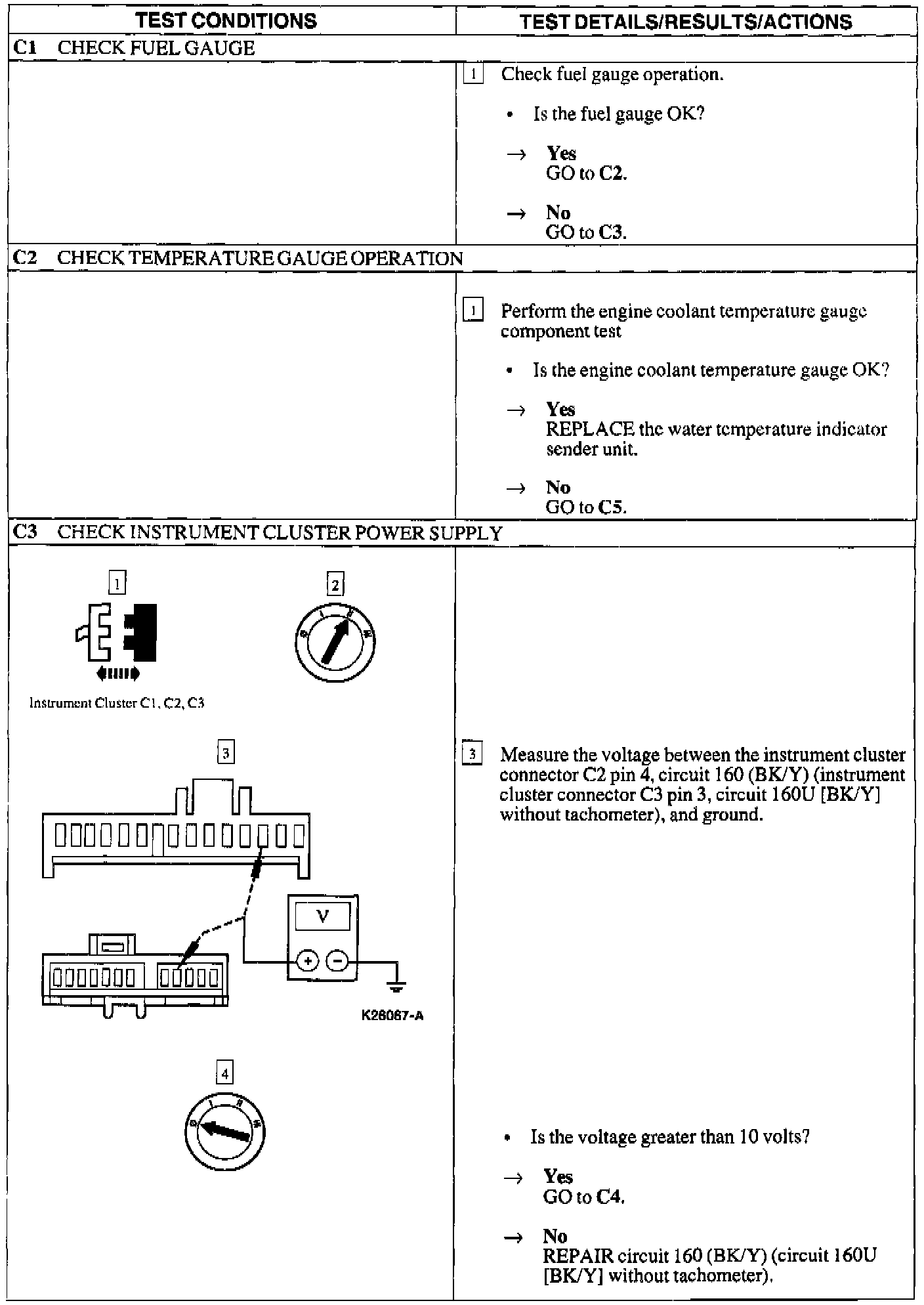

C1-C3:






C4-C7:
