Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> B: Incorrect Fuel Gauge Indication

B: Incorrect Fuel Gauge Indication

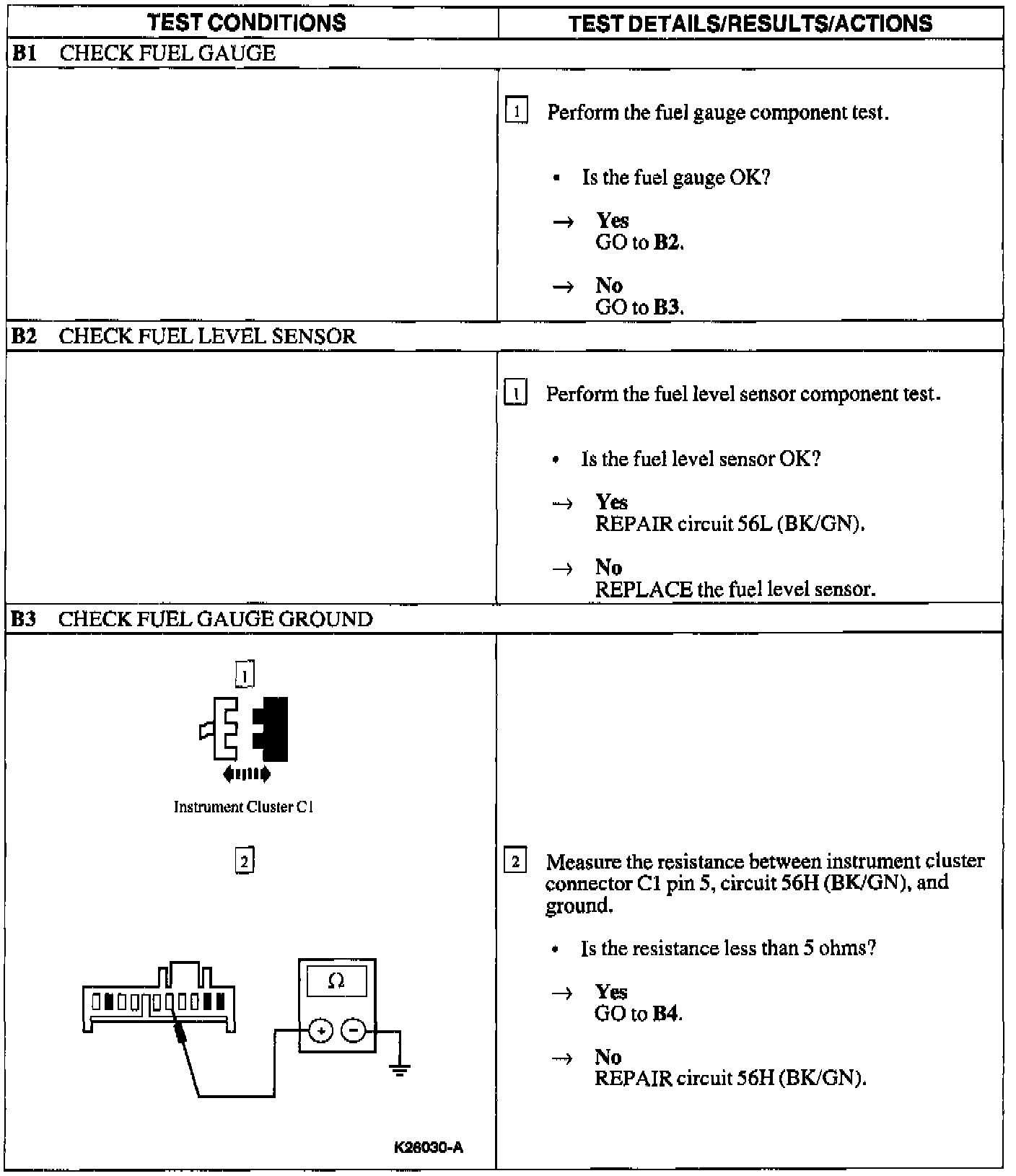

B1-B3:

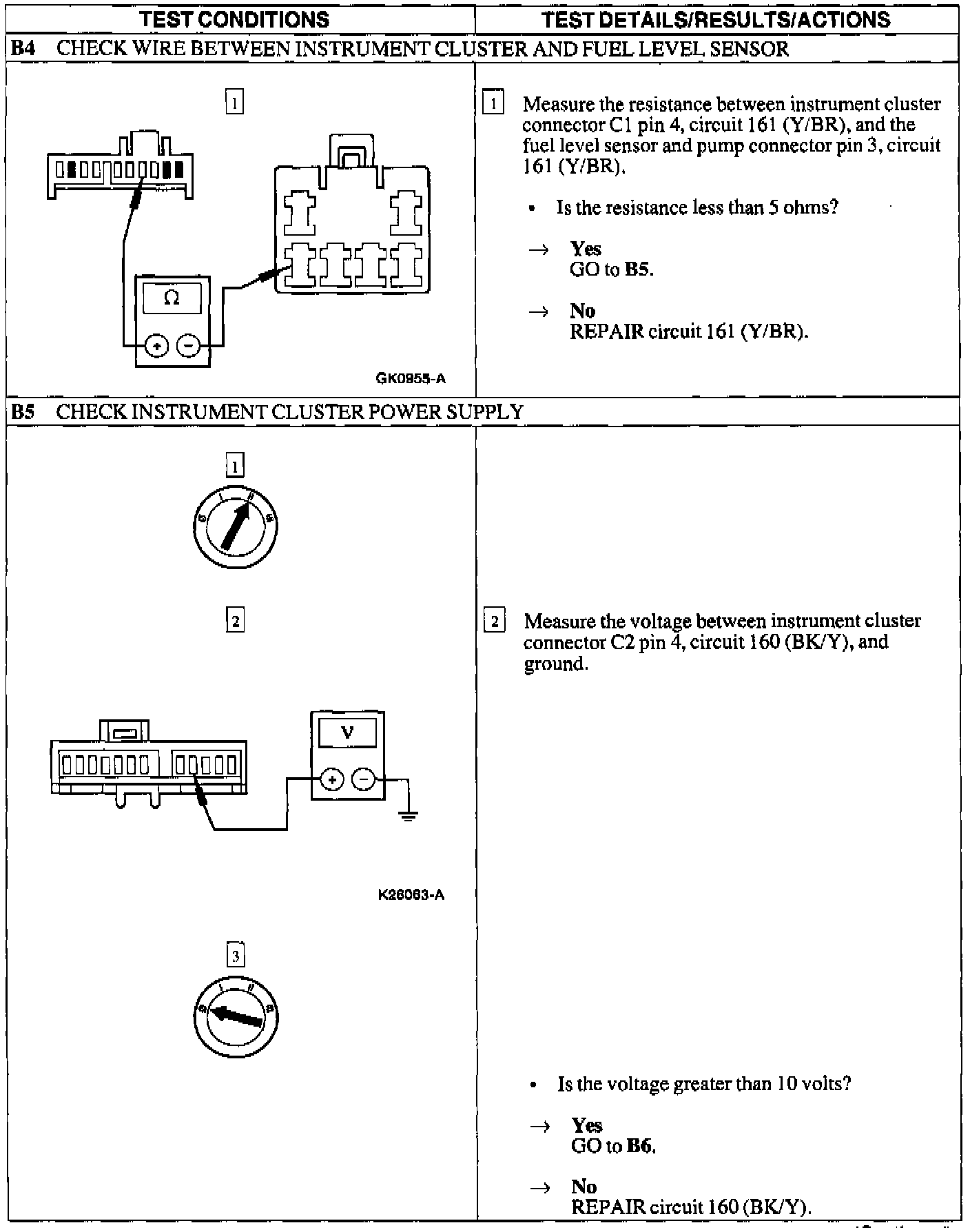

B4-B5:






B6-B7:
