Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> A: Instrument Cluster Display Inop or Erratic

A: Instrument Cluster Display Inop or Erratic

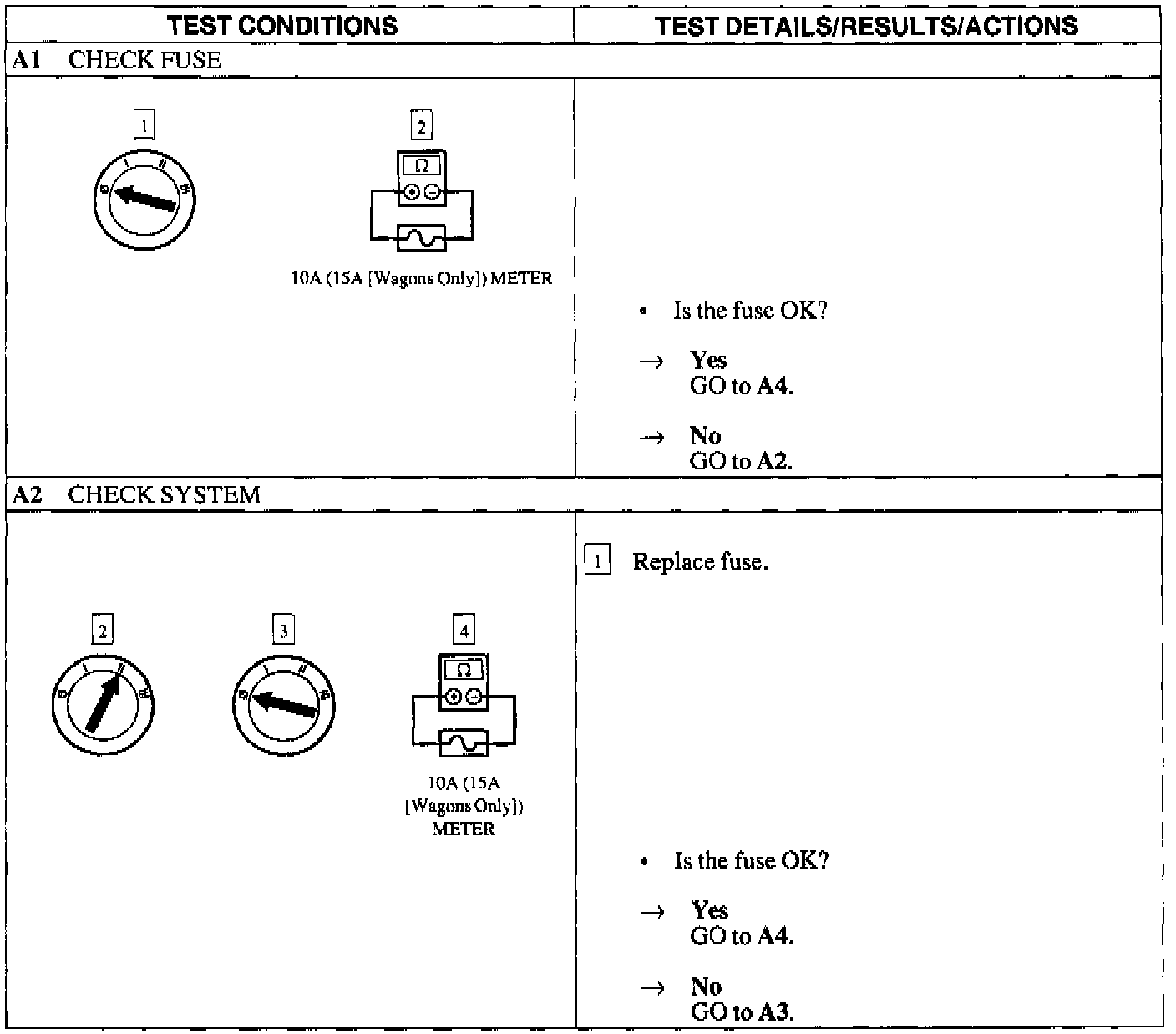

A1-A2:

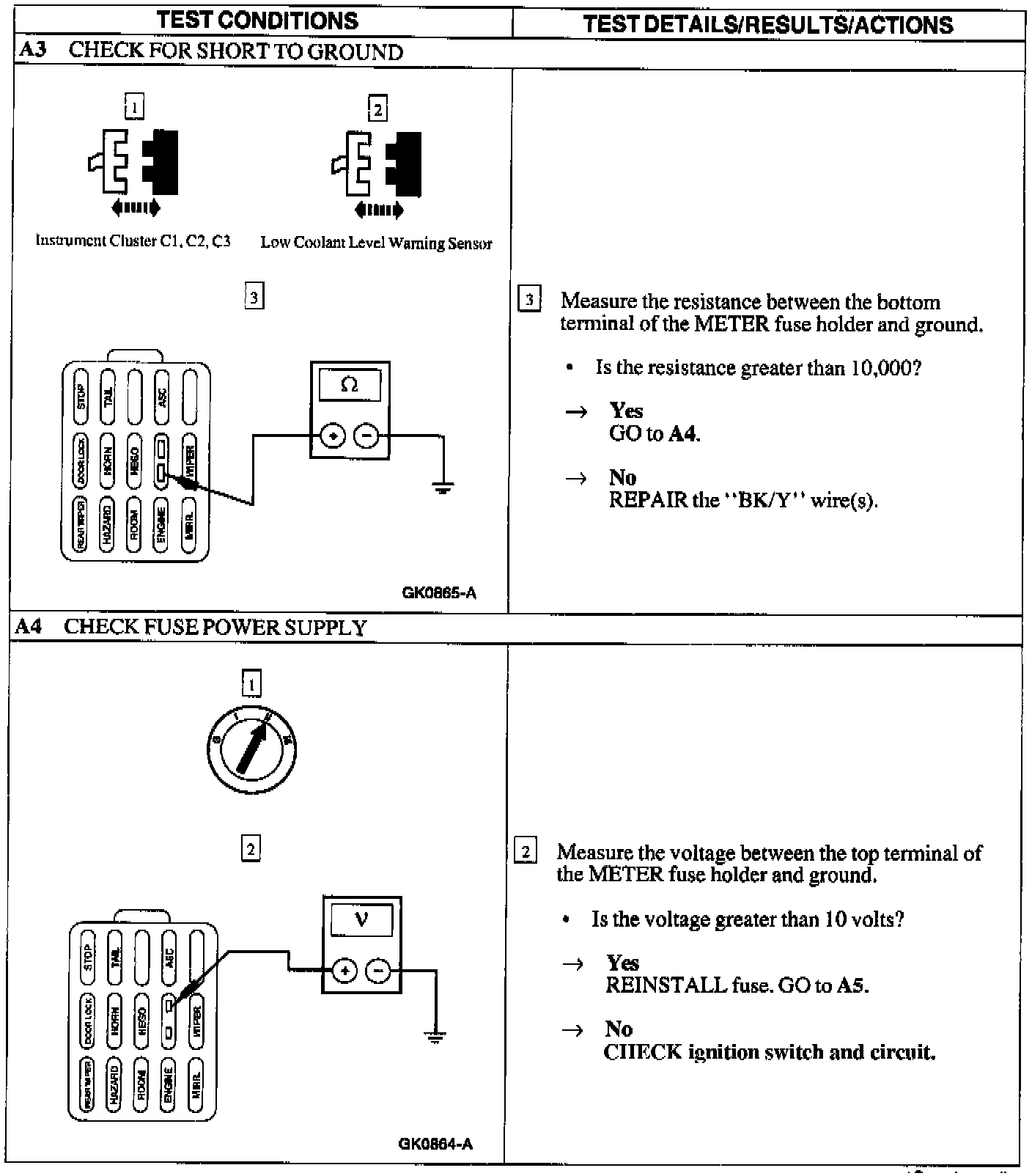

A3-A4:

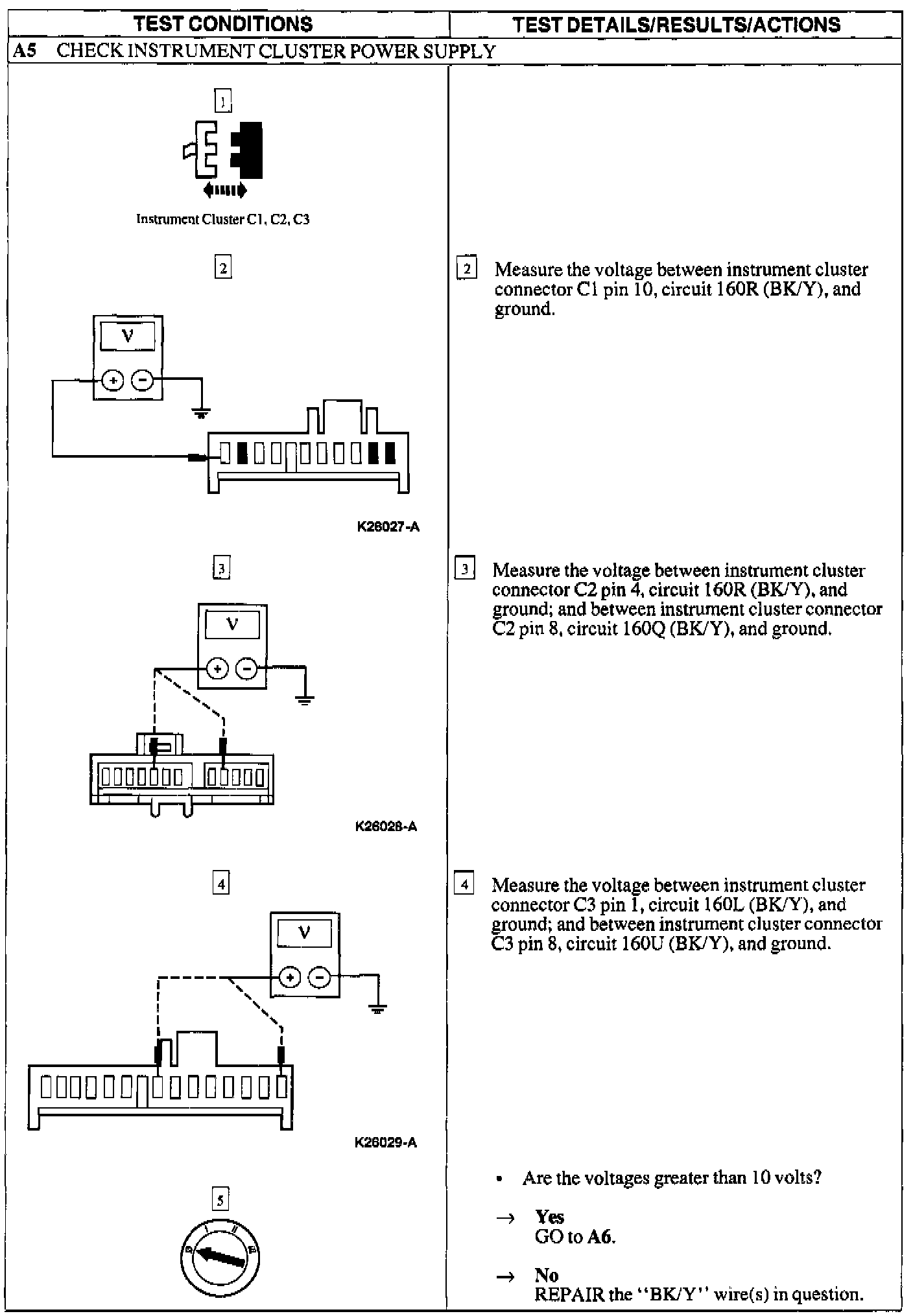

A5:

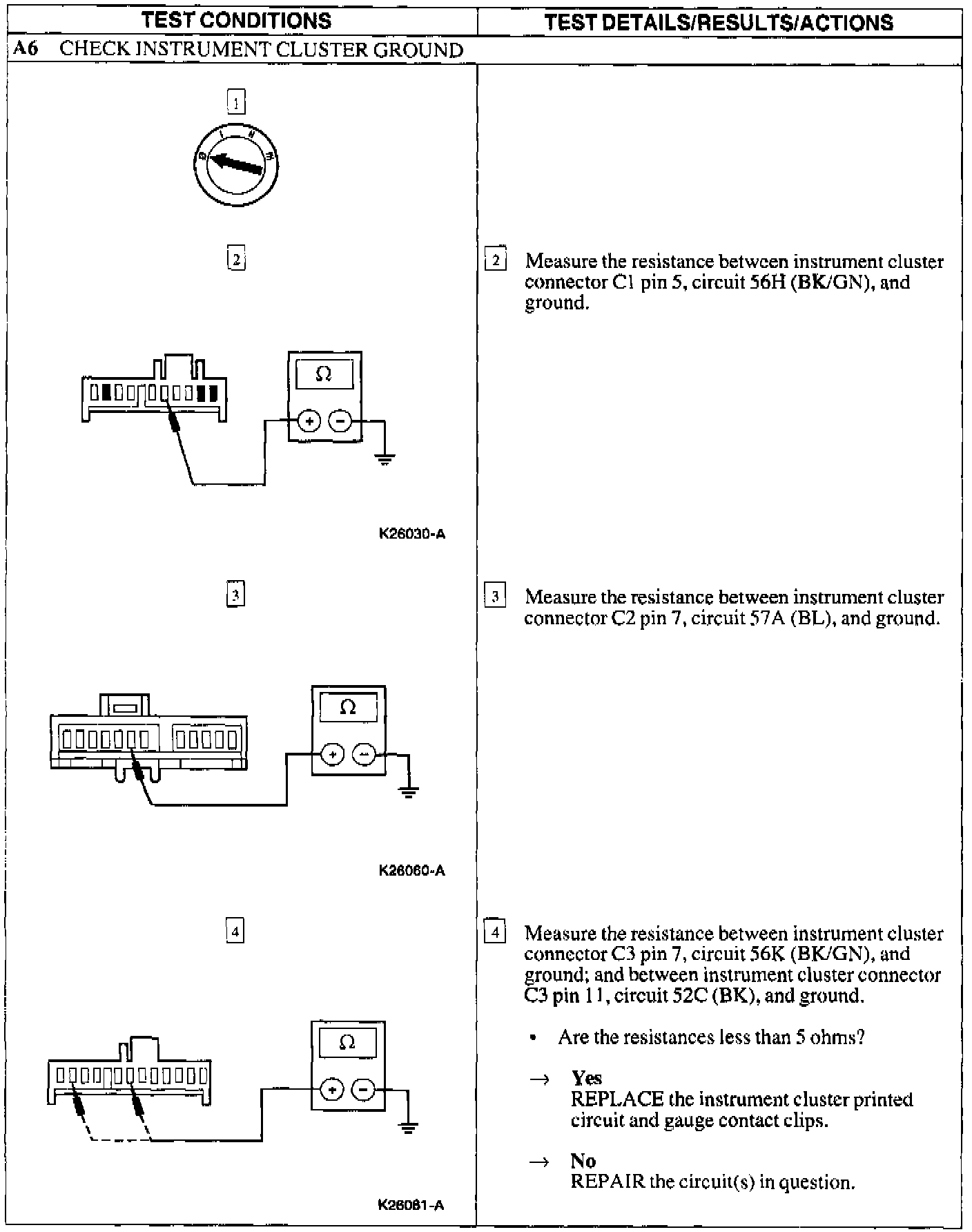

A6:
