Electrical Connector Views

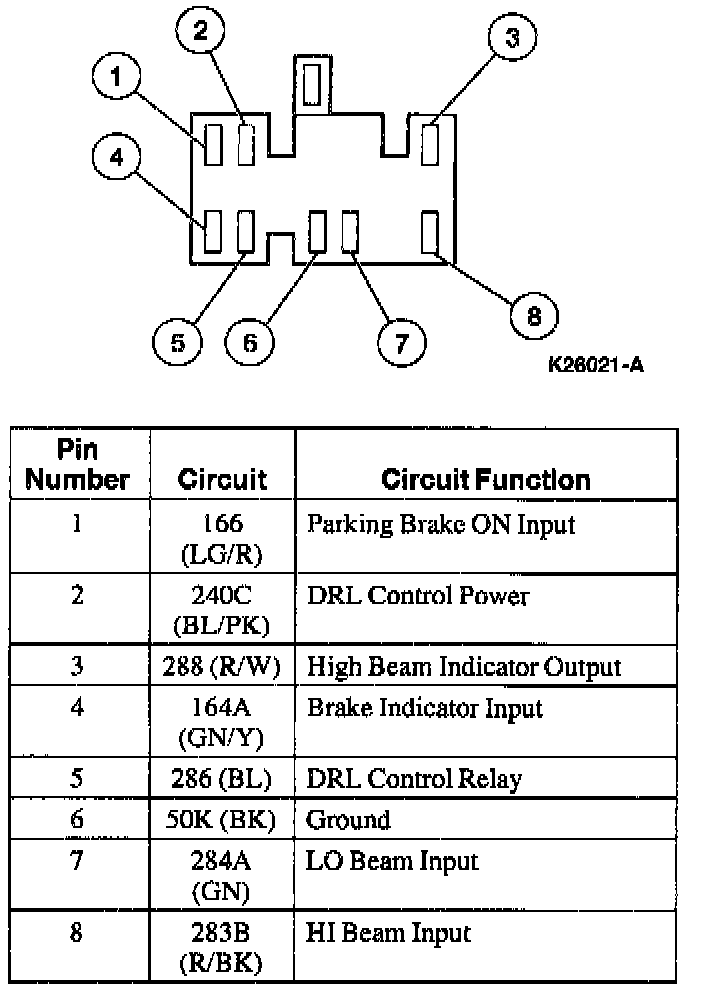

Daytime Running Lamp (DRL) Control Connector:

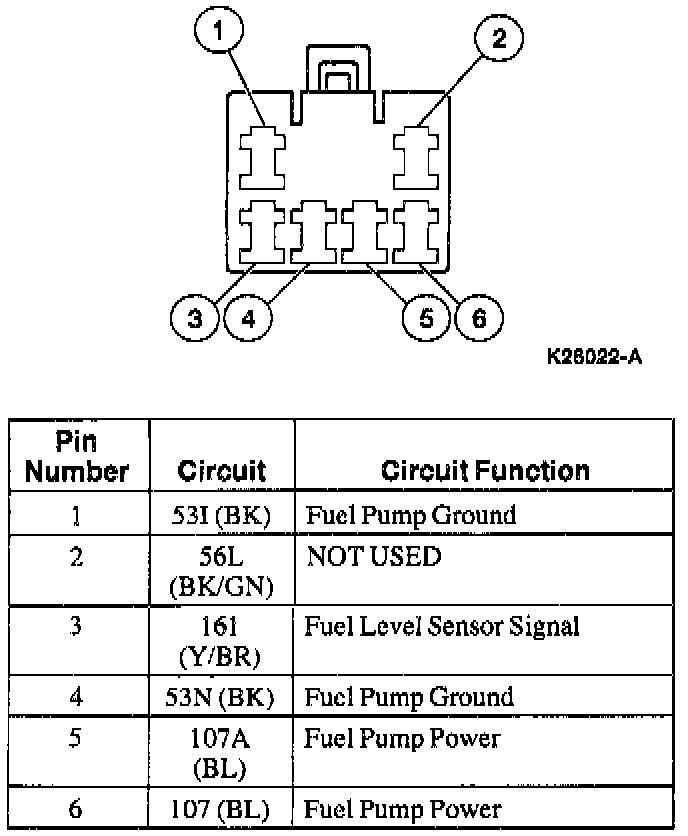

Fuel Level Sensor And Pump Connector:

Indicator Flasher Connector C1 (Blue):

Indicator Flasher Connector C2 (Yellow):

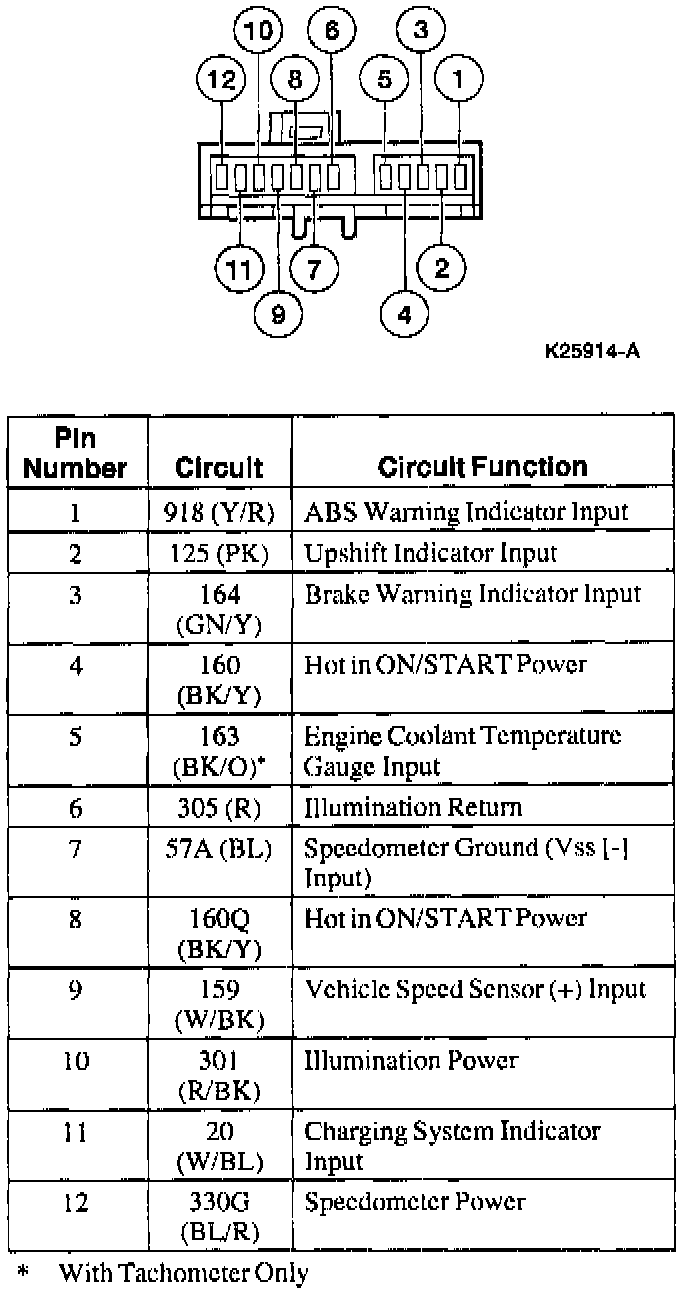

Indicator Cluster Connector C1:

Indicator Cluster Connector C2:

Indicator Cluster Connector C3:

Indicator Cluster Connector C4:

Indicator Cluster Connector C5:

Indicator Cluster Connector C6:

Indicator Cluster Connector C7:

Indicator Cluster Connector C8:

Multi-Function Switch Connector C1:

Remote Anti-Theft Personality (RAP) Module Connector C2:
