General System Diagnosis

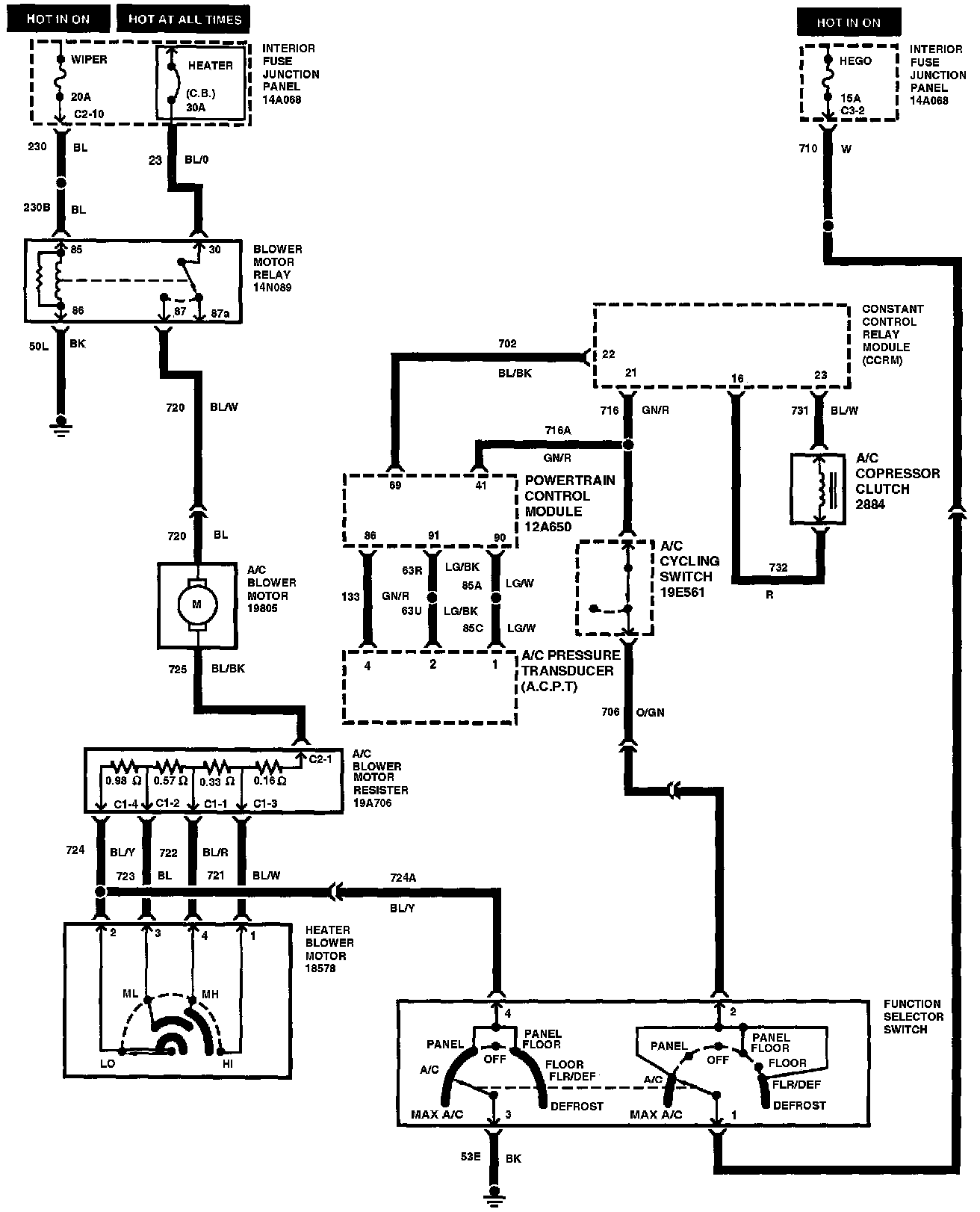

SYSTEM DIAGRAM

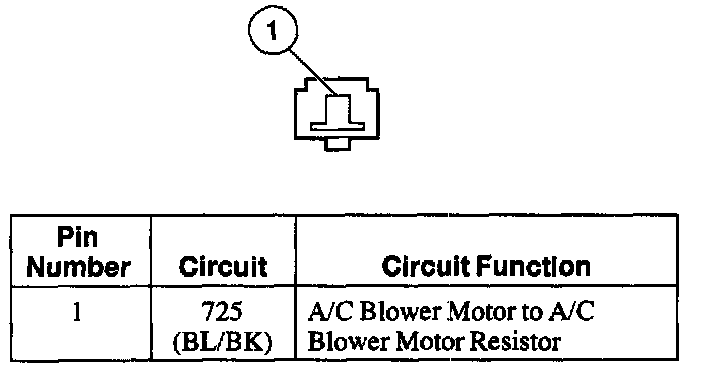

A/C BLOWER MOTOR RESISTOR CONNECTOR C1

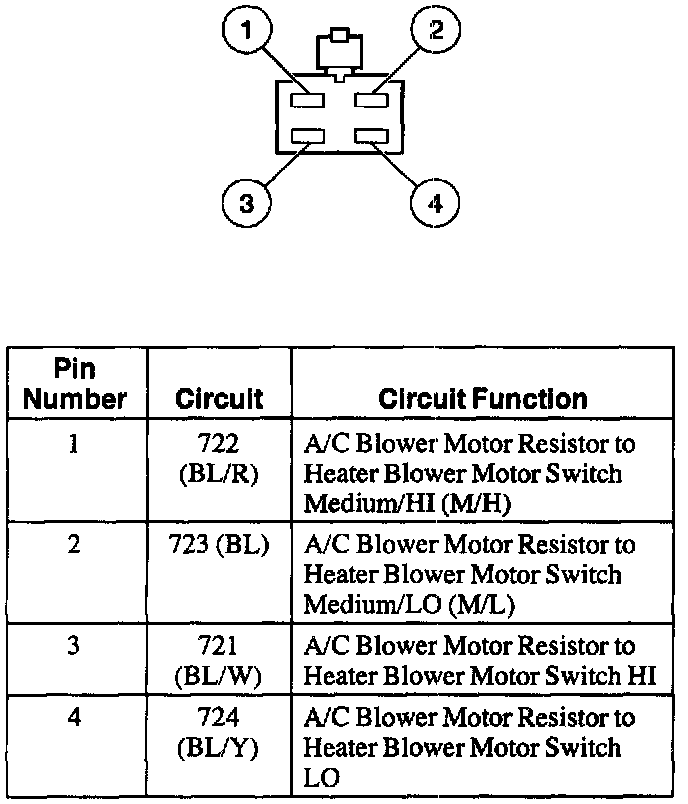

A/C BLOWER MOTOR RESISTOR CONNECTOR C2
HEATER RELAY CONNECTOR

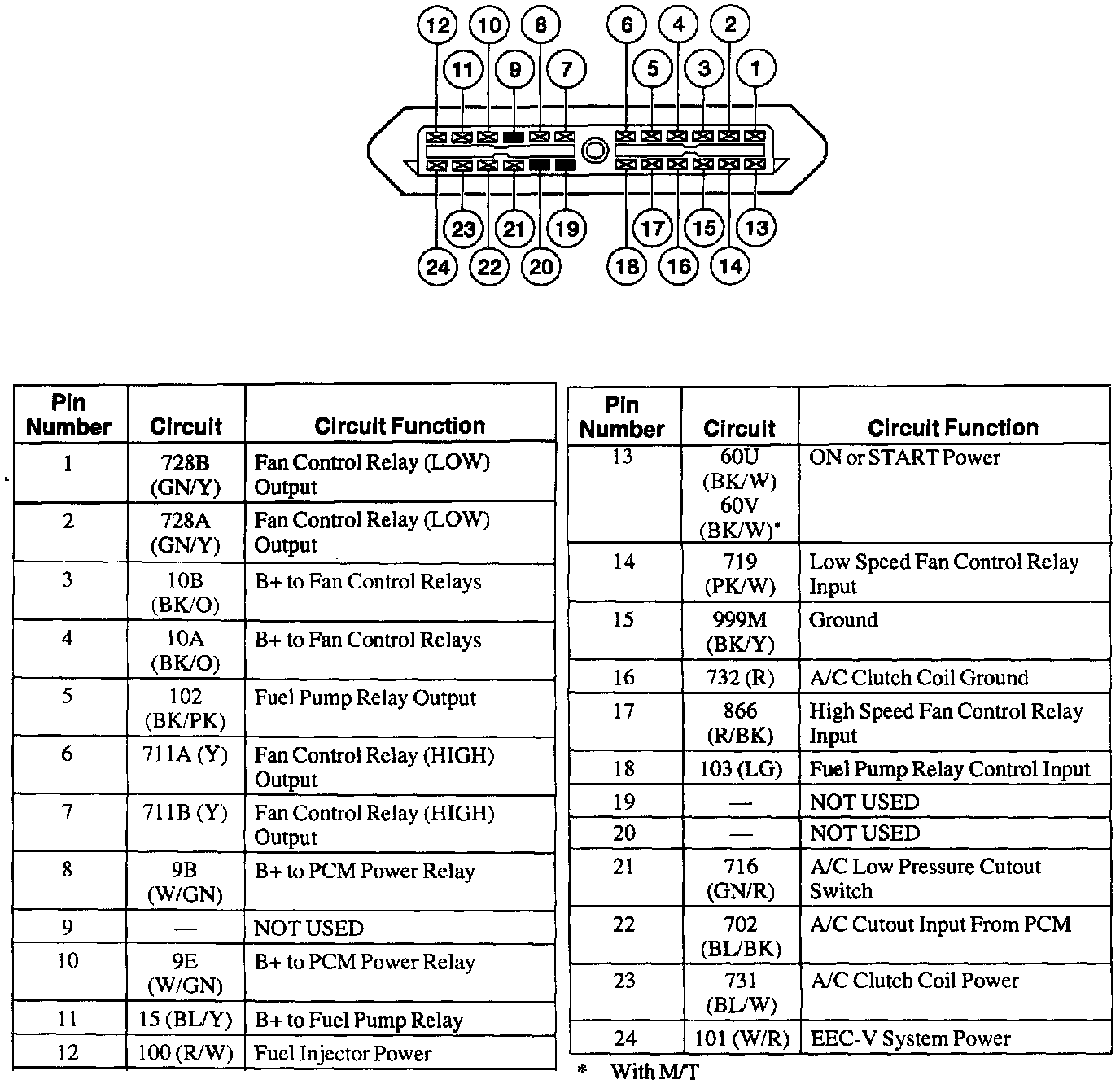

CONSTANT CONTROL RELAY MODULE (CCRM) CONNECTOR

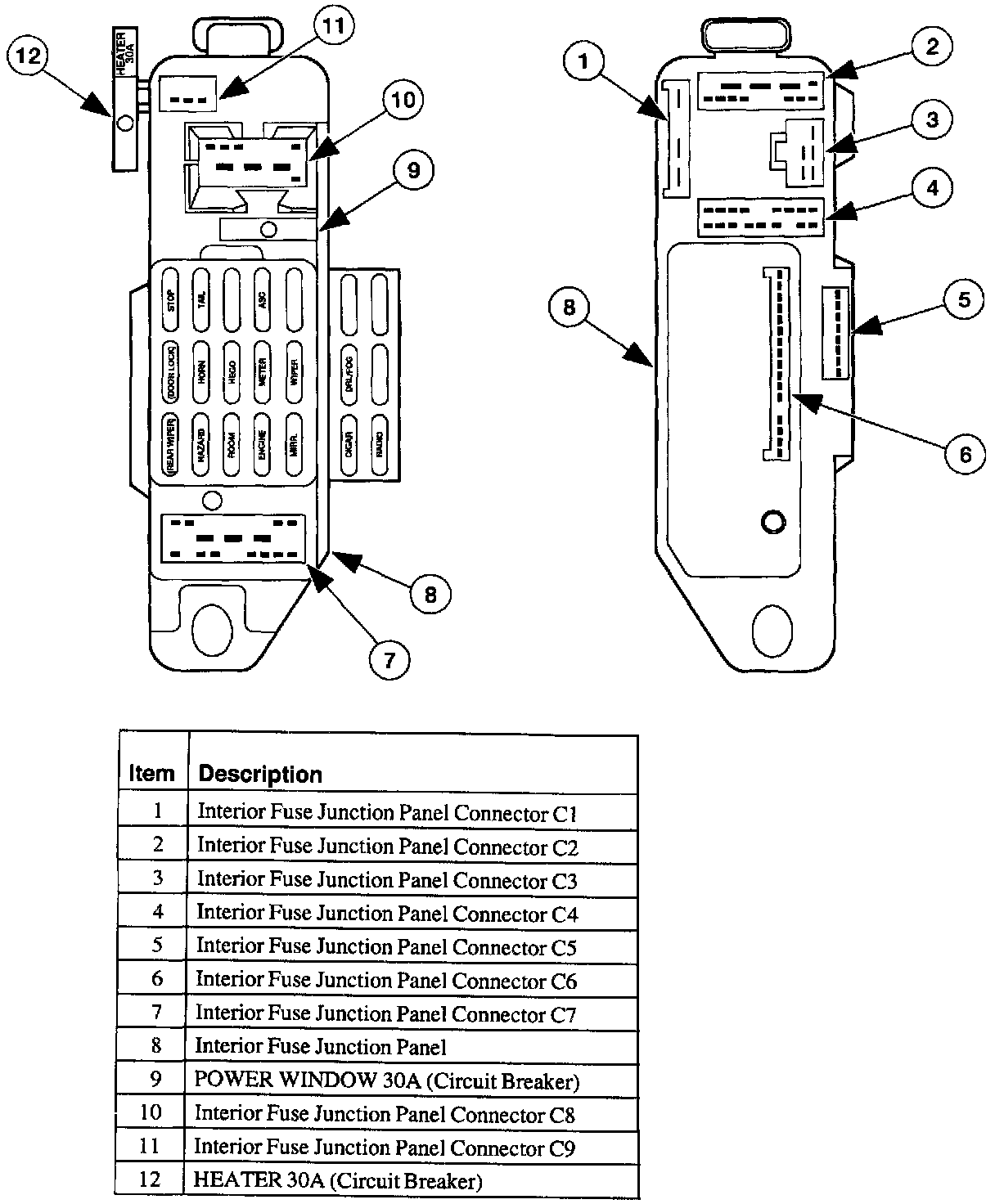

INTERIOR FUSE JUNCTION PANEL
SYSTEM DIAGRAM
A/C BLOWER MOTOR RESISTOR CONNECTOR C1
A/C BLOWER MOTOR RESISTOR CONNECTOR C2
HEATER RELAY CONNECTOR
CONSTANT CONTROL RELAY MODULE (CCRM) CONNECTOR
INTERIOR FUSE JUNCTION PANEL
