Rear

REMOVAL
1. Discharge and recover the refrigerant from the system. Refer to: Heating and Air Conditioning, Service and Repair, Evacuation and Recovery, Discharging and Recovery

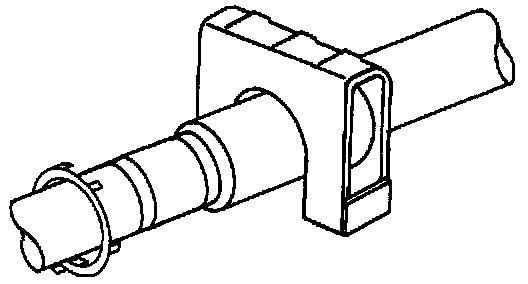

2. Disconnect the front condenser to evaporator spring lock coupling.





3. Disconnect the rear condenser to evaporator tube spring lock coupling.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.








4. Remove the two A/C refrigerant line support clips.





5. Disconnect the rear condenser to evaporator tube spring lock coupling.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

INSTALLATION
1. To install, reverse the removal procedure.
2. Leak test the A/C system.
