Blower Motor: Service and Repair

REMOVAL





1. Disconnect the battery ground cable.

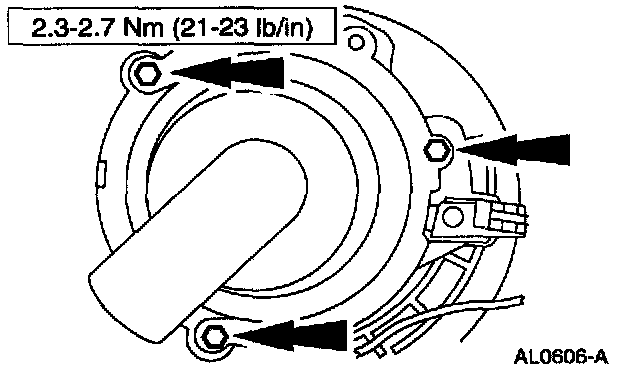

2. Remove the three blower motor screws and the A/C blower motor.

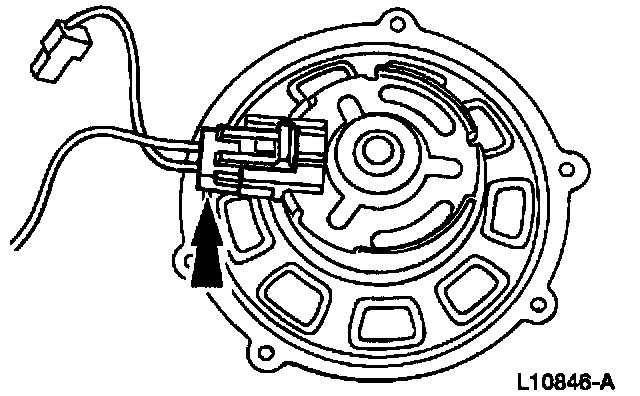

3. Disconnect the A/C blower motor electrical connector.

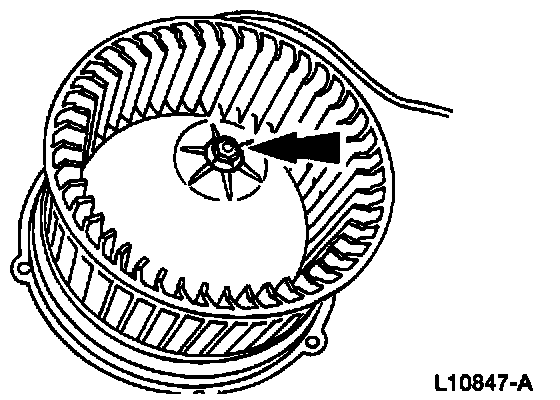

4. Remove the blower motor wheel retainer and the A/C blower wheel.

INSTALLATION





1. To install, reverse the removal procedure.
