Blower Motor Resistor: Service and Repair

REMOVAL





1. Disconnect the A/C blower motor resistor electrical connectors.

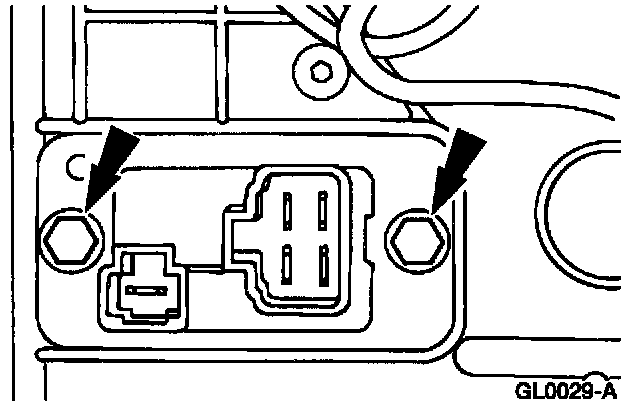

2. Remove the two screws and the A/C blower motor resistor.

INSTALLATION
1. To install, reverse the removal procedure.
