Instrument Panel Ducts

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel - Replacement, Instrument Panel - Replacement

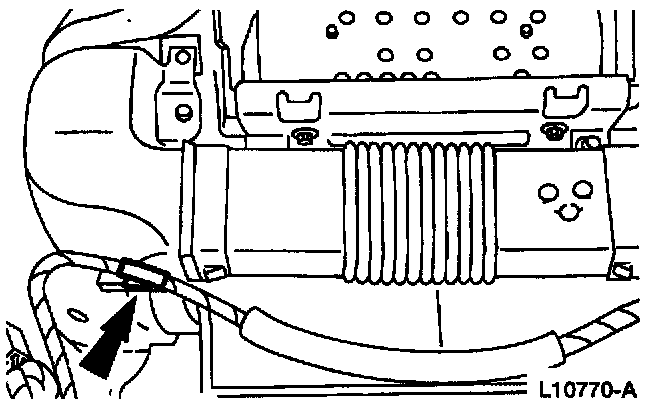

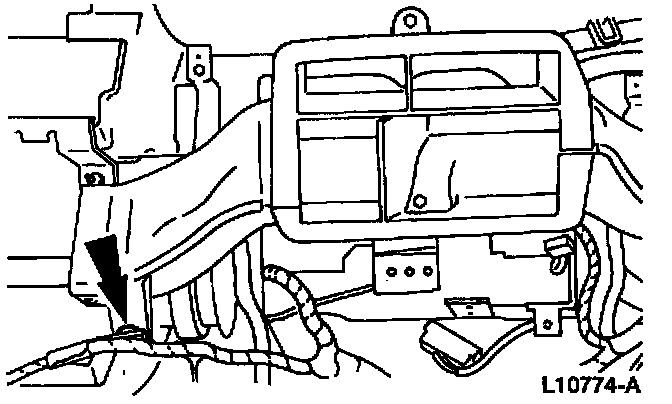

2. Detach the two wiring harness clips.

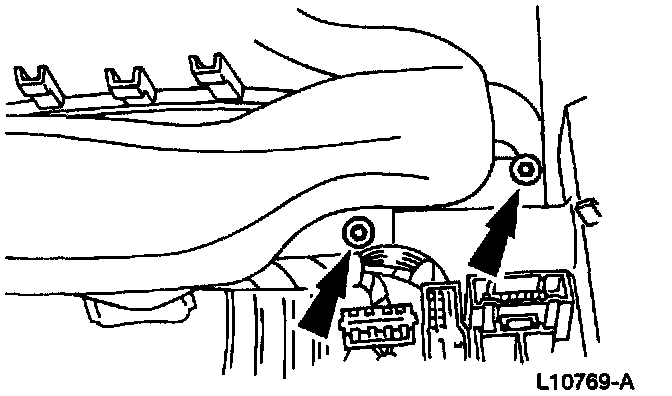

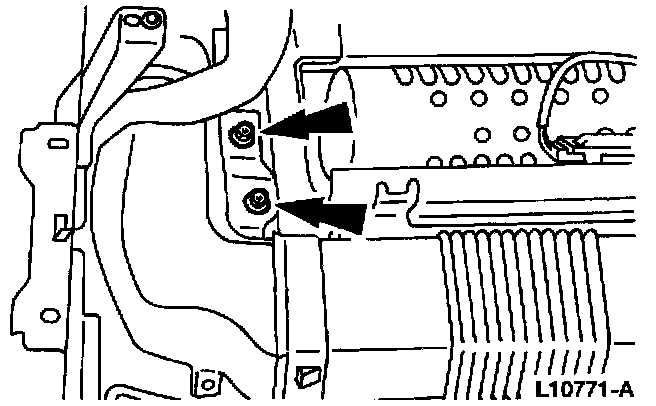

3. Remove the four A/C outlet duct screws and the ducts.

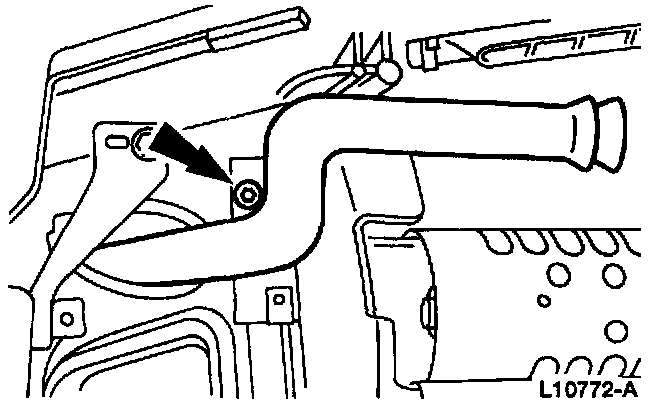

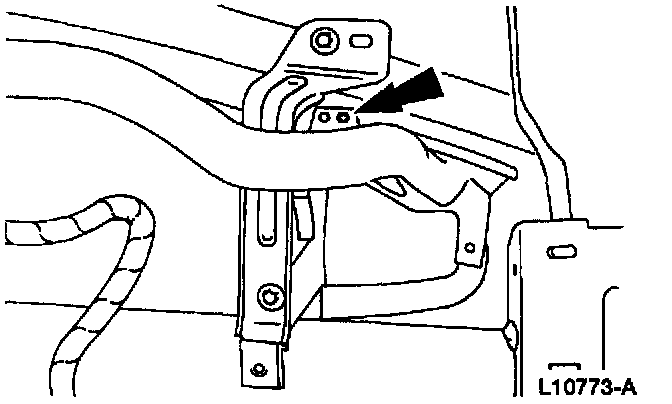

4. Remove the two side window demister duct screws and the ducts.

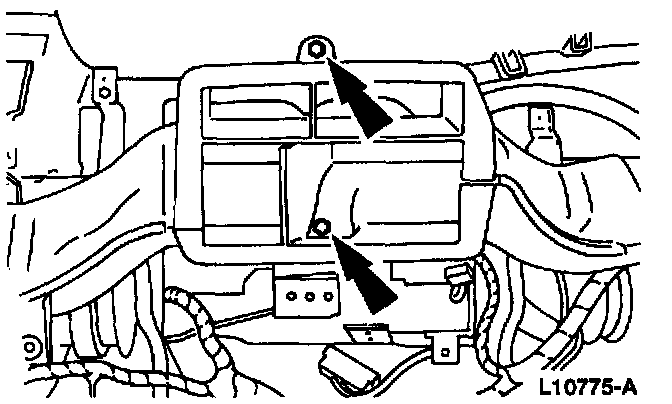

5. Remove the two center duct screws and the duct.

INSTALLATION
1. To install, reverse the removal procedure.
