Panel Air Flow Control Door

REMOVAL





1. Disconnect the vacuum control motor vacuum hose.

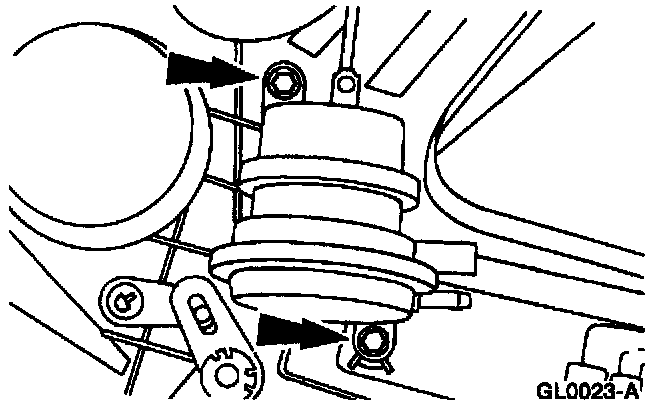

2. Remove the two screws and the vacuum control motor.

INSTALLATION
1. To install, reverse the removal procedure.
