Oil Pan Baffle
REMOVAL
1. Remove the oil pan and oil pan gasket.

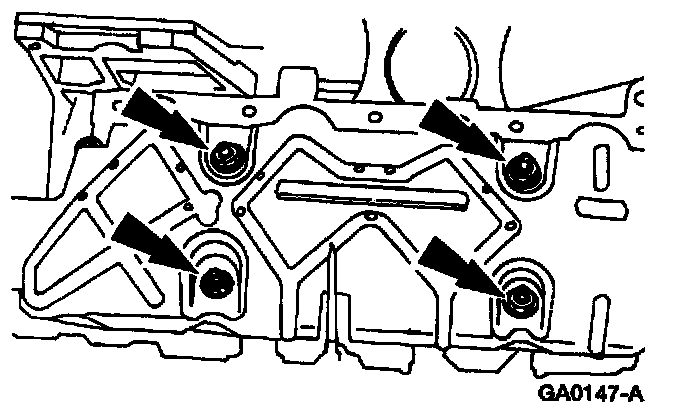

2. Remove the four nuts and the oil pan baffle (6687).
INSTALLATION
1. Install the oil pan baffle and tighten bolts to 20-30 Nm (14-22 ft. lbs.).
2. Install the oil pan.
REMOVAL
1. Remove the oil pan and oil pan gasket.
2. Remove the four nuts and the oil pan baffle (6687).
INSTALLATION
1. Install the oil pan baffle and tighten bolts to 20-30 Nm (14-22 ft. lbs.).
2. Install the oil pan.
