Initial Inspection and Diagnostic Overview

INSPECTION AND VERIFICATION
1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical damage.
3. Visually inspect the drive belt for correct routing. Refer to component locations.

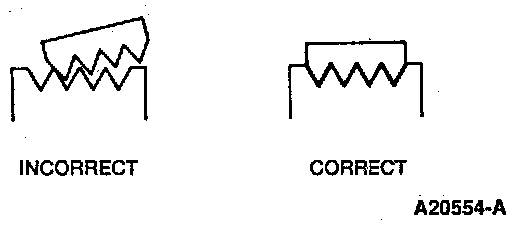

4. Visually inspect for correct drive belt tracking.
5. Check for and correct any fluid leakage.
