Piston Pin: Testing and Inspection






DIAMETER

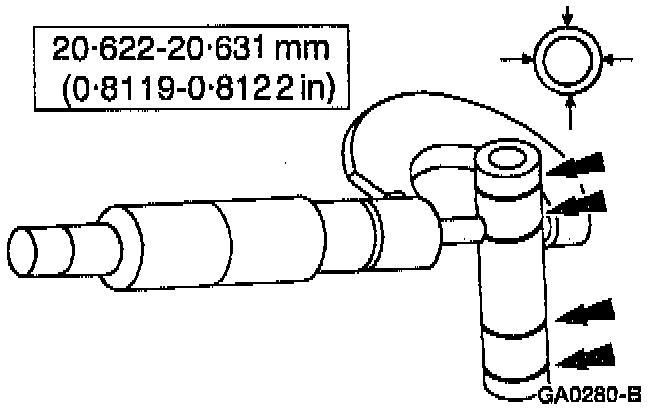

Measure the piston pin diameter in two directions at points shown. Verify the diameter is within specification.
Diameter: 20.622-20.631 mm (0.8119-0.8122 inch).
