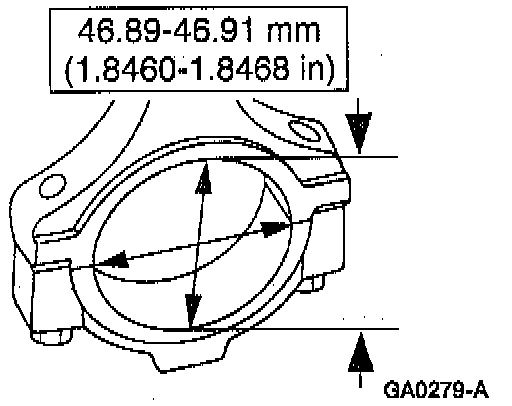

Connecting Rod Large End Bore

1. Measure the bearing bore in two directions.
2. Verify the bearing bore is within specification.
3. The difference is the connecting rod bore out-of-round.
4. Verify the out-of-round is within specification.

Bearing Bore
Diameter: 46.89-46.91 mm (1.8460-1.8468 inch).
Out of Round: 0.010 mm (0.0004 inch).
