Diameter

NOTE:
Specifications and Limits
Specifications show the expected minimum or maximum condition. If a component fails to meet the specifications, it is necessary to replace or refinish. If the component can be refinished, wear limits are provided as an aid to making a decision. Any component that fails to meet specifications and cannot be refinished must be replaced.

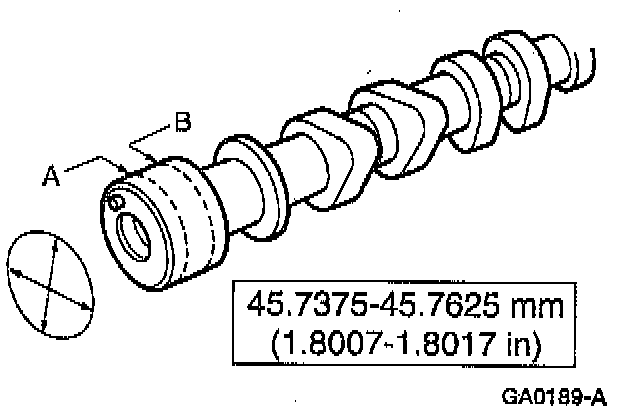

^ Measure each camshaft journal diameter in two directions at journal position (A) and journal position (B).
Diameter 45.7375-45.7625 mm (1.8007-1.8017 inch)

^ If out of specification, replace as necessary.
