End Play

NOTE:
Specifications and Limits
Specifications show the expected minimum or maximum condition. If a component fails to meet the specifications, it is necessary to replace or refinish. If the component can be refinished, wear limits are provided as an aid to making a decision. Any component that fails to meet specifications and cannot be refinished must be replaced.

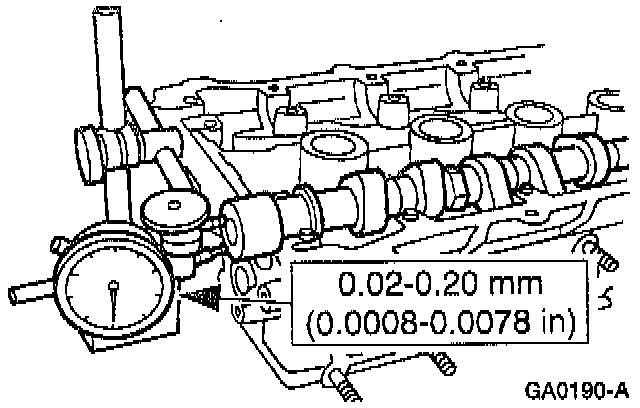

1. Install Dial Indicator With Bracketry TOOL-4201-C to measure camshaft end play.
2. Position the camshaft (6250) to the rear of the cylinder head.
3. Zero the Dial Indicator With Bracketry TOOL-4201-C.
4. Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
End Play: 0.02-0.20 mm (0.0008-0.0078 inch)

^ If camshaft end play exceeds specifications, replace the camshaft thrust plate.
