Brake Caliper
>>
Rear
Rear

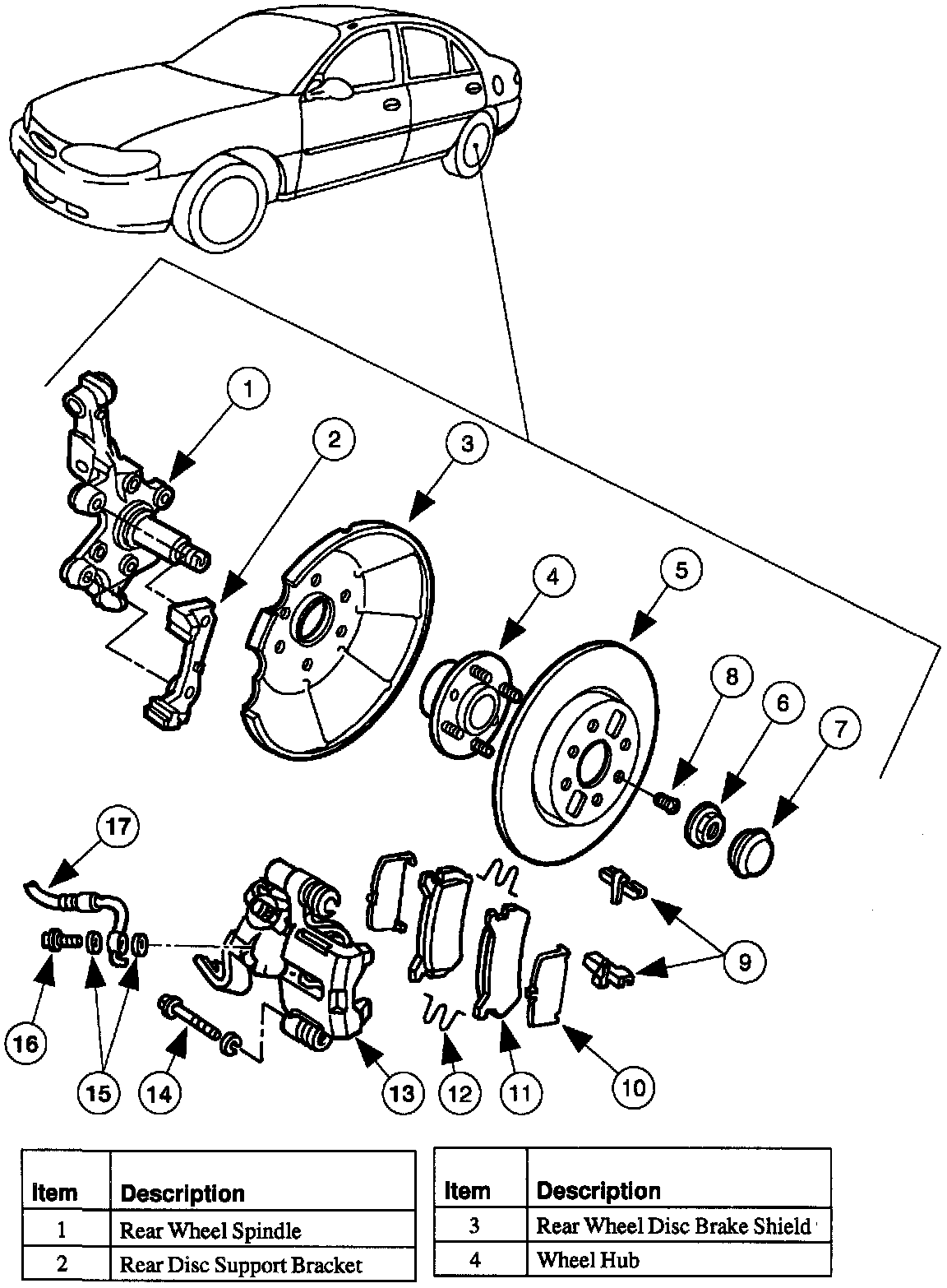

Disc Brake Components, Rear (Part 1 Of 2):

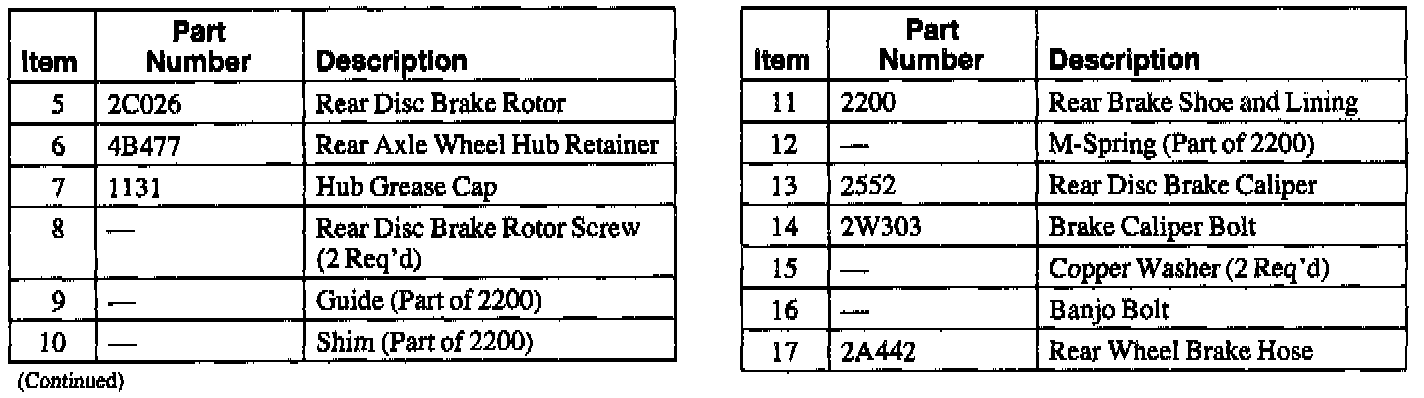

Disc Brake Components, Rear (Part 2 Of 2):

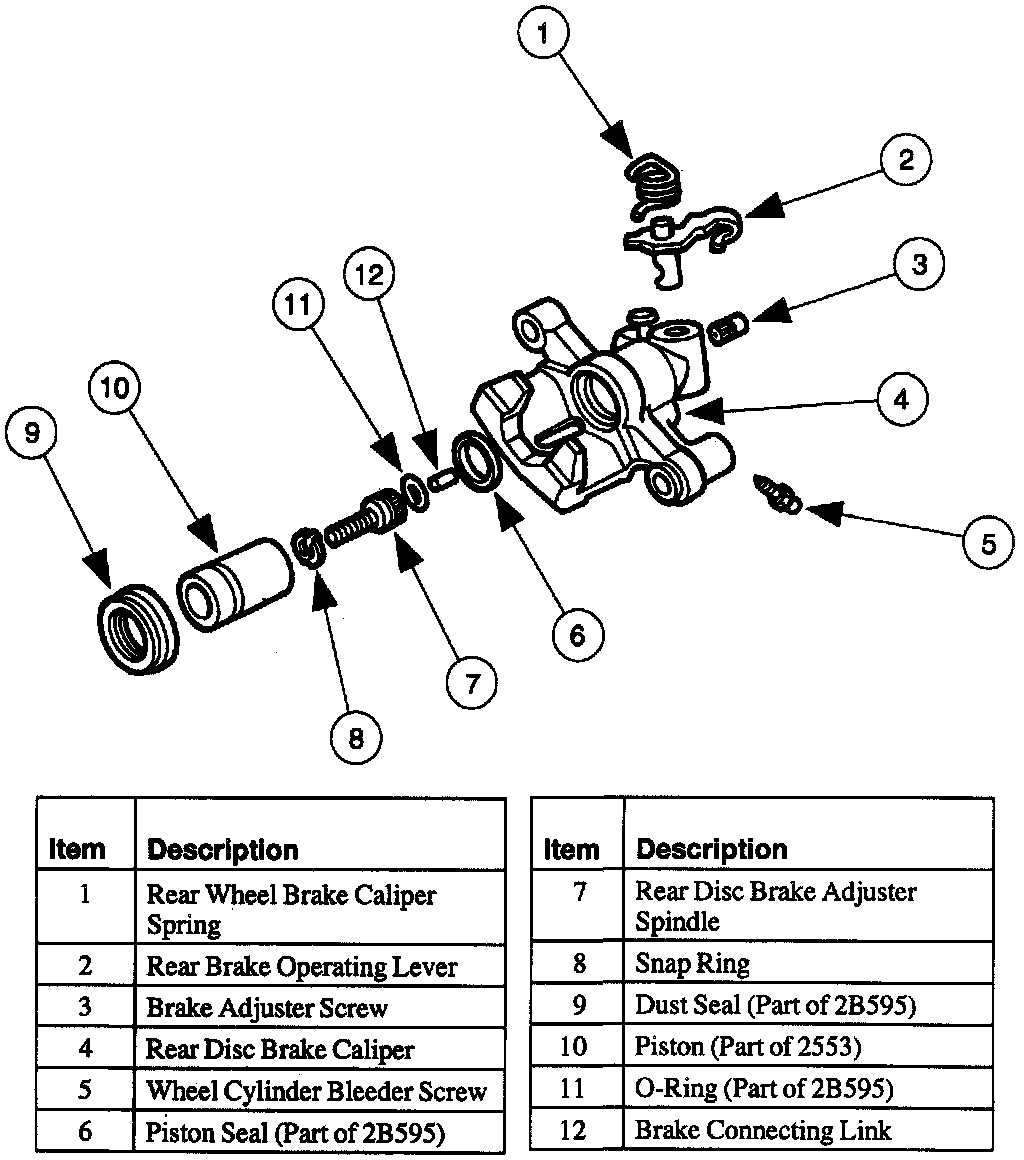

Rear Caliper Internal Components:
