Fuse R. WIPER

Fuse R. WIPER - protects the following circuits:
- Daytime Running Lamps
- Liftgate Wiper/Washer

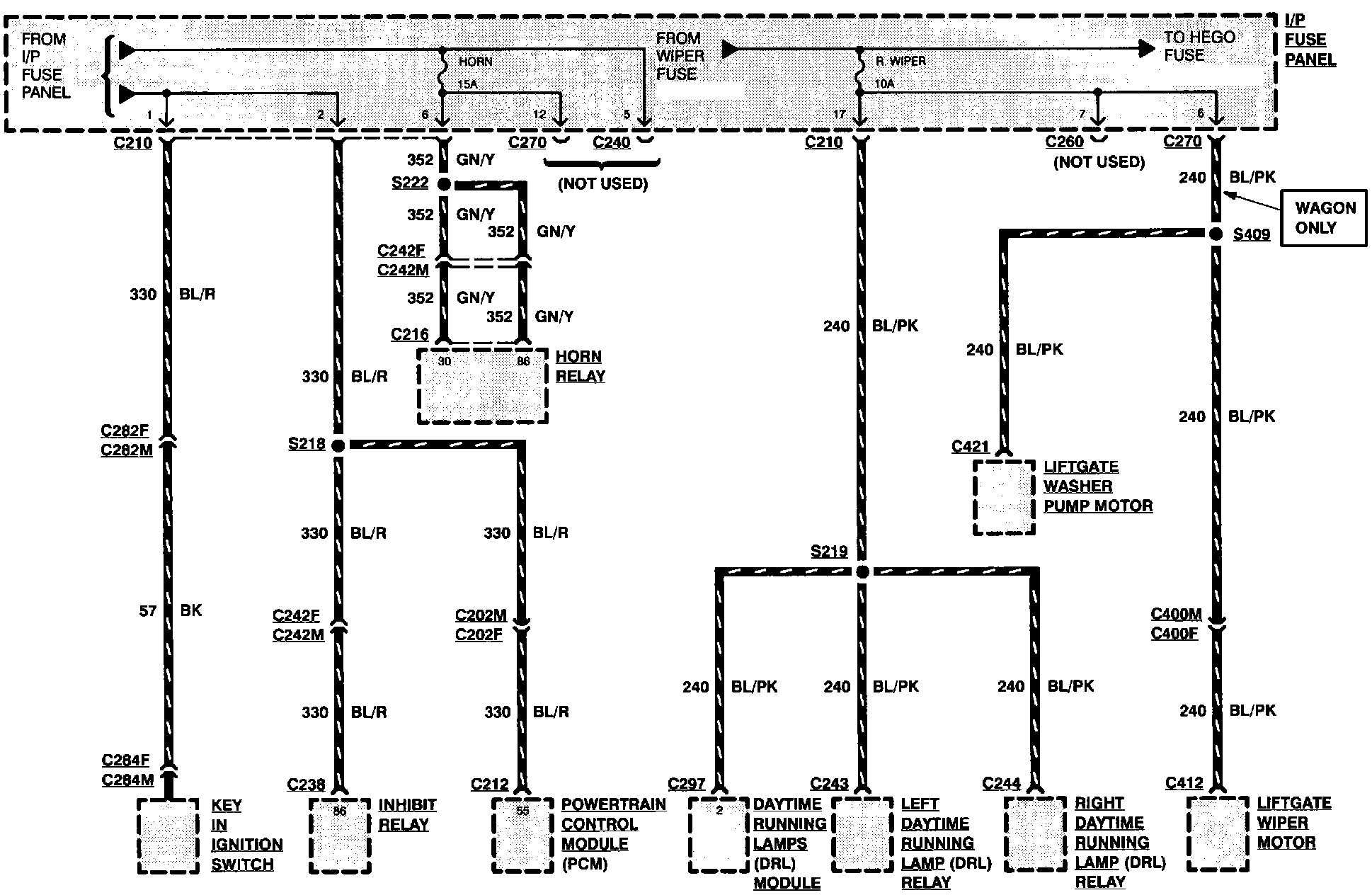

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
