Mercury
>>
1997
>>
Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution
>>
Instrument Panel Fuse Panel
>>
Circuit Breaker Circuits
>>

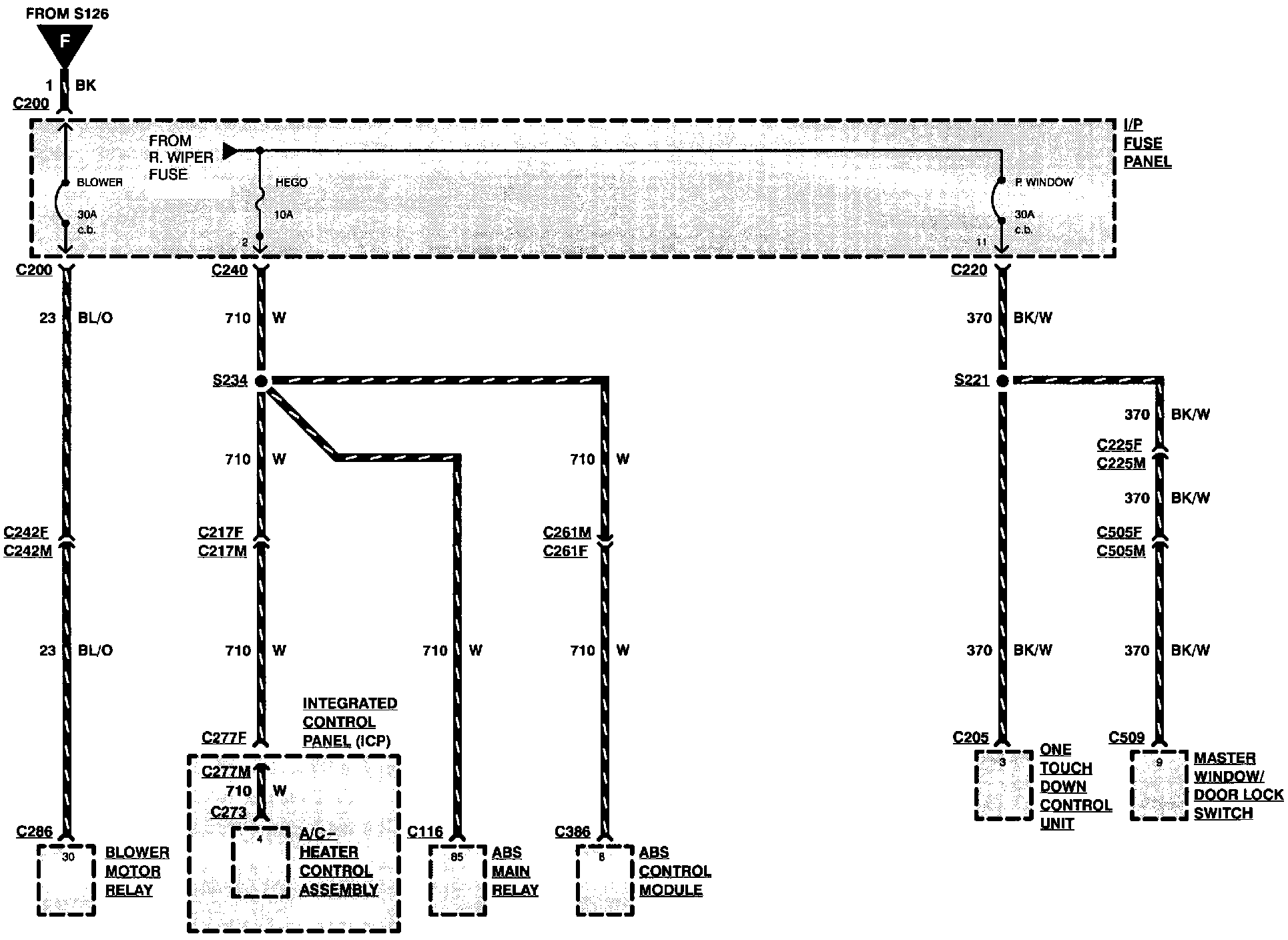

Circuit Breaker BLOWER
Circuit Breaker BLOWER
Circuit Breaker BLOWER
- protects the following circuits:
-
A/C Heater
Power Distribution:
Power Distribution:
Power Distribution:
Power Distribution:
