Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Diagrams (By Ground Number) >> G400

G400

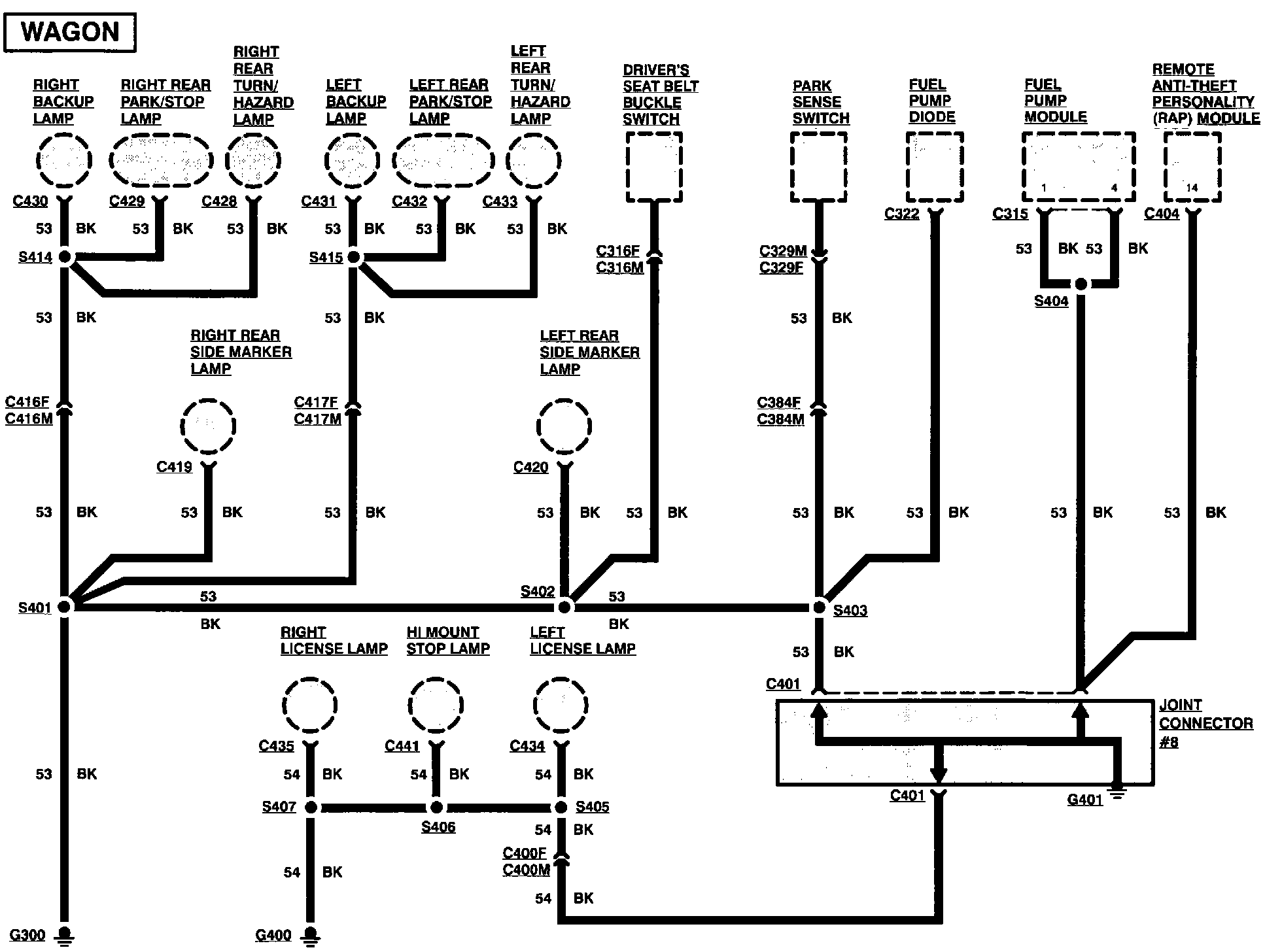

Grounds (G300, G400 & G401):
